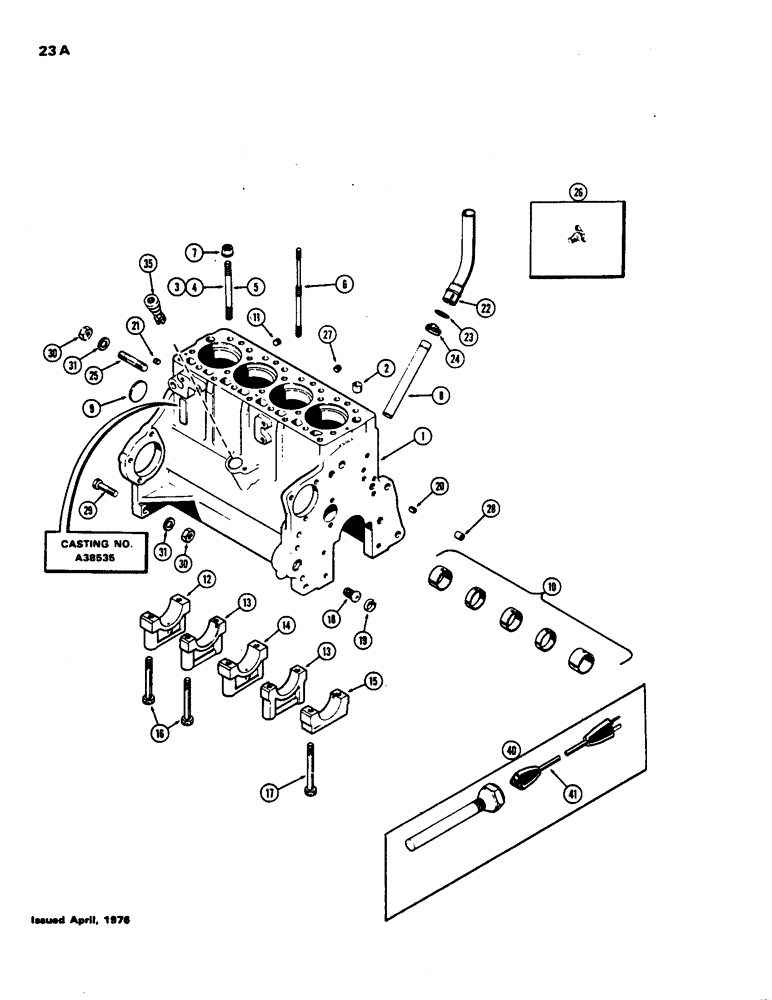

Запчасти Case 480B (023A) - CYLINDER BLOCK ASSY., (188) DIESEL ENG., USED PRIOR TO ENG. S/N 2711005, USE W/ CYLINDER HEAD STUDS

A42814

CYLINDER BLOCK

SHORT BLOCK ASSY. - (Incl. stripped block, pistons sleeves, rods, crankshaft, camshaft & oil pump), Includes: Ref. 1 - 26

1шт.

1

A41597

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting #A38535), Includes: Ref. 2 - 24

1шт.

2

G49608

RING

- dowel, Serial Range: head-block

2шт.

3

A36902

STUD

- head to block(1/2" N.C. x 5-5/8")

11шт.

4

A36905

STUD

- head to block (1/2" N.C. x 6")

2шт.

5

A36904

STUD

- head to block (1/2" N.C. x 4")

4шт.

6

A36903

STUD

- head & cover

2шт.

7

A37030

FLANGE NUT

- head studs (1/2" N.C. flanged)

19шт.

8

A37149

TUBE

- oil filler & dipstick

1шт.

9

A39241

PLUG,Exp, 2.12" dia

- rear (2-1/8" exp.) (Replaces A30033)

1шт.

10

A42746

CAM

BUSHING SET - camshaft

1шт.

11

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - pipe, 3/8" socket hd

1шт.

12

A38385

CAP

- rear main bearing

1шт.

13

G2128

CAP

- intermediate main bearing

2шт.

14

G2127

CAP

- center main bearing

1шт.

15

G2126

CAP

- front main bearing

1шт.

16

113-444

BOLT

- bearing cap (1/2 x 4-1/2" N.C.)

8шт.

17

113-445

BOLT

- bearing cap & oil pump (1/2" x 5-1/8" N.C.)

2шт.

18

A153552

ADAPTER

- oil filter

1шт.

19

41-1016

PLUG,Cup, 1"

- adapter hole (1" cup type)

1шт.

20

G49070

PLUG

- front (1/4" P.T. drilled)

1шт.

21

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Rear & LH front Hex Soc, 1/4"-18 NPTF

2шт.

22

A37407

TUBE

- oil filler extension

1шт.

23

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - 1-1/8 x 1-3/8 x 1/8"

1шт.

24

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

1шт.

25

A29333

STUD

- engine to torque tube (3/8" N.C. - N.F. x 3")

2шт.

26

A23656

COCK, DRAIN

VALVE - drain (Used prior to eng. ser. #2706710)

1шт.

27

221-662

PLUG,Hex Hd, 1/4"-18

- 1/4" P.T. sq. hd. (1st used eng. ser. #2706710)

1шт.

28

A29442

RING

- dowel, front cover

2шт.

29

A38710

BOLT

BOLT - engine to torque tube (5/8 x 3-1/2" N.F. hex.)

2шт.

30

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

4шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

35

A38942

DRIVE ASSY.

- tachometer

1шт.

40

A44815

HEATER

- cyl. block (Replaces A40637), Includes: Ref. 41

1шт.

41

A44814

ELECTRIC CABLE

CORD - heater (12") (Replaces A40477) cyl. block

1шт.
