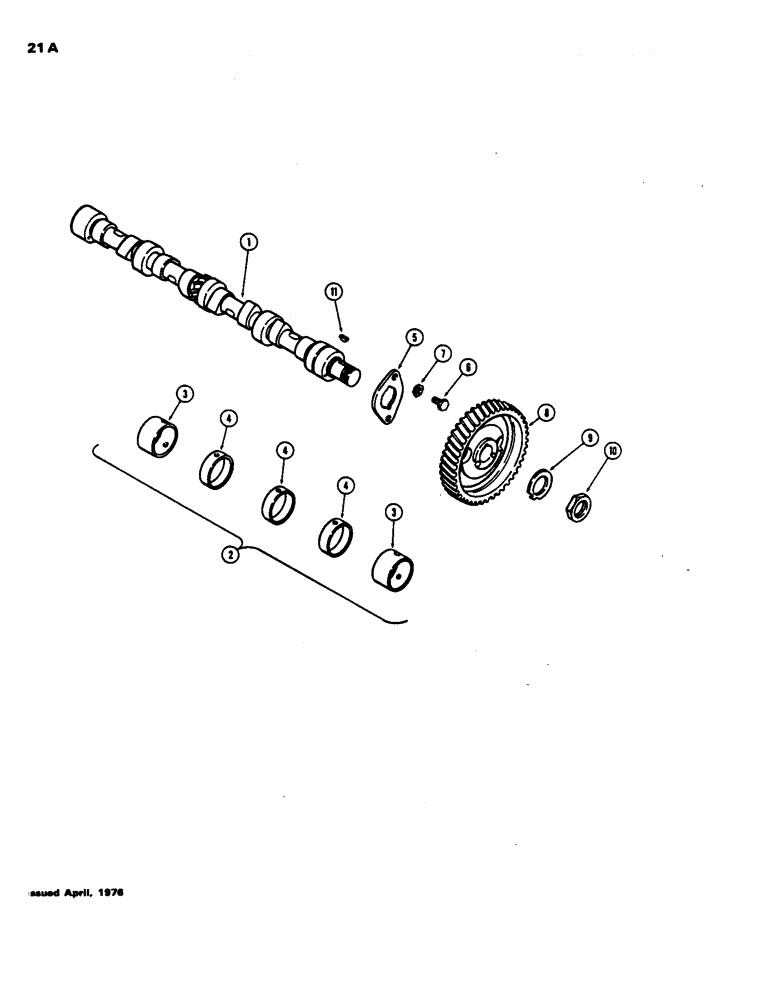

Запчасти Case 480B (021A) - CAMSHAFT, (188) DIESEL ENGINE

1

A39013

CAM

SHAFT

1шт.

2

A42746

CAM

BUSHING SET - camshaft, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - front & rear (1-7/32" wide)

2шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1/2" wide)

3шт.

5

A29290

PLATE

- thrust, camshaft

1шт.

6

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate

2шт.

7

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

8

A38931

GEAR

- camshaft (48 T)

1шт.

9

A29438

LOCK NUT

WASHER - lock, gear nut

1шт.

10

A30063

NUT

-, Serial Range: gear-camshaft

1шт.

11

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.
