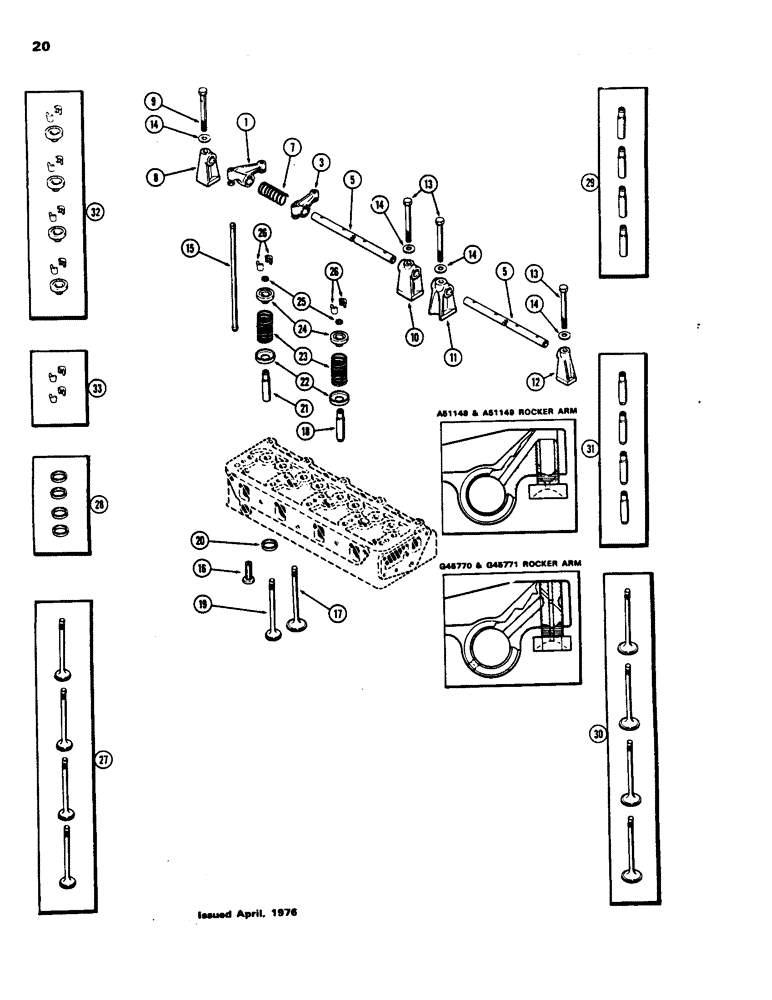

Запчасти Case 480B (020) - VALVE MECHANISM, (188) DIESEL ENGINE

1

A51149

ARM

ASSY. - rocker, L.H. (w/adjusting screw) (Replaces G45771) (1st used Eng. Ser. #2715764) (Inset A) (See Note)

4шт.

Adjusting screws are not to be mixed. Using the old screws with the new arms or new screws with the old arms will result in blocked oil passages.

1шт.

1

G45771

ARM

ASSY. - rocker, L.H. (Order A51149) (See Note) (used prior to Eng. Ser. #2715764) (Inset B)

4шт.

Adjusting screws are not to be mixed. Using the old screws with the new arms or new screws with the old arms will result in blocked oil passages.

1шт.

3

A51148

ARM

ASSY. - rocker, R.H. (w/adjusting screw) (Replaces G45770) (1st used Eng. Ser. #2715764) (Inset A) (See Note)

4шт.

Adjusting screws are not to be mixed. Using the old screws with the new arms or new screws with the old arms will result in blocked oil passages.

1шт.

3

G45770

ARM

ASSY. - rocker, R.H. (Order A51148) (See Note) (used prior to Eng. Ser. #2715764) (Inset B)

4шт.

Adjusting screws are not to be mixed. Using the old screws with the new arms or new screws with the old arms will result in blocked oil passages.

1шт.

5

A38181

SHAFT

- rocker arm

2шт.

7

G48501

SPRING

- rocker shaft

4шт.

8

A36615

BRACKET

- rear, rocker shaft

1шт.

9

G49067

BOLT

- drilled, rear rocker bracket

1шт.

10

G2101

BRACKET

- center, rocker shaft

1шт.

11

A51084

BRACKET

- inter. rocker shaft (Replaces G2102)

2шт.

12

G2100

BRACKET

- front, rocker shaft

1шт.

13

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

3шт.

14

A30058

WASHER

- bracket bolt

4шт.

15

G47079

ROD

- push

8шт.

16

G47077

TAPPET

LIFTER - push rod

8шт.

17

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 30)

4шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 31)

4шт.

19

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 27)

4шт.

20

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 28)

4шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 29)

4шт.

22

G49065

SEAT

- valve spring

8шт.

23

A30025

SPRING

- valve

8шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - valve spring (Order ref. 32)

8шт.

25

G46851

SEAL

- rubber, valve stem

8шт.

26

NSS

NOT SOLD SEPARAT

LOCK - retainer (Order ref. 33)

16шт.

27

A41727

VALVE

S - exhaust (Set of 4)

1шт.

28

A43048

KIT

INSERTS - exhaust valve seat (Replaces G11986), Includes: Ref. 29 - 33

1шт.

29

G11946

GUIDE

S - exhaust valve stem (Set of 4)

1шт.

30

A41726

VALVE

S - intake (Set of 4)

1шт.

31

G11945

GUIDE

S - intake valve stem (Set of 4)

1шт.

32

G11927

RETAINER

S - valve spring (Set of 4 w/locks)

2шт.

33

G11929

LOCK

S - valve retainer (Set of 4)

4шт.
