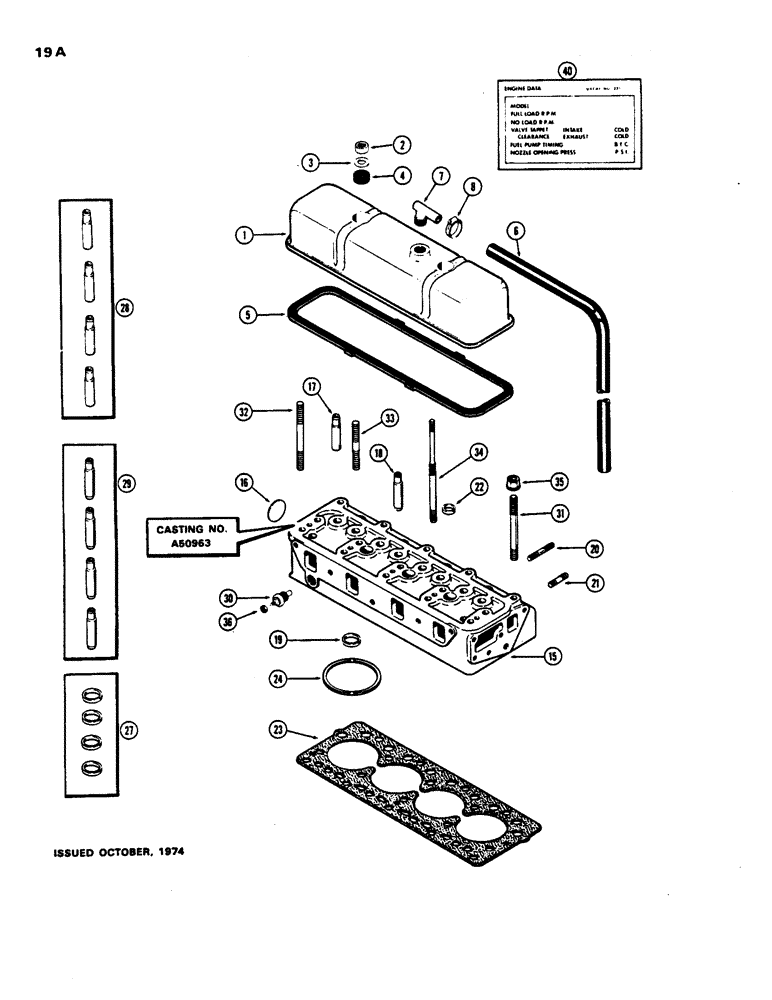

Запчасти Case 480B (019A) - CYLINDER HEAD AND COVER, (188) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2711005

1

A36815

COVER

- head

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

3

G49400

WASHER

- 13/32 x 1-5/32 x 1/8"

2шт.

4

A142098

GROMMET

- rubber, cover stud (Replaces G46867)

2шт.

5

A43030

GASKET,3.05mm Thk

- cover to head (Replaces G46886)

1шт.

6

A39570

HOSE

- breather (Replaces D35014)

1шт.

7

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

1шт.

15

A37856

CYLINDER HEAD

HEAD ASSY. - cylinder (Casting No. A50963), Includes: Ref. 16 - 22

1шт.

16

A39242

PLUG

- rear, 1-3/4" exp.

1шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (Order ref. 28)

4шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (Order ref. 29)

4шт.

19

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 27)

4шт.

20

A39129

STUD

- manifold clamp (3/8" N.C. x 2-1/16")

6шт.

21

A29431

STUD

- 3/8" N.C. x 1-3/4"

4шт.

22

41-1016

PLUG,Cup, 1"

- 1" cup

3шт.

23

13490891C1

- head to block (Order A39279) (See Figure 18)

1шт.

24

A38639

RING

- fire, cylinder (Std. w/orange stripe)

4шт.

24

A38651

RING

- fire, cylinder (oversize w/black stripe)

4шт.

27

A43048

KIT

INSERTS - exhaust valve seat (Set of 4) (Replaces G11986)

1шт.

28

G11946

GUIDE

S - exhaust valve stem (Set of 4)

1шт.

29

G11945

GUIDE

S - intake valve stem (Set of 4)

1шт.

30

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

31

A36902

STUD

- head to block (1/2" N.C. x 5-5/8")

11шт.

32

A36905

STUD

- head to block (1/2" N.C. x 6-1/8")

2шт.

33

A36904

STUD

- head to block (1/2' N.C. x 4")

4шт.

34

A36903

STUD

-, Serial Range: head-cover

2шт.

35

A37030

FLANGE NUT

- flanged, head stud (1/2" N.C.)

19шт.

36

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex.

1шт.

40

321-1369

DECAL - engine data

1шт.
