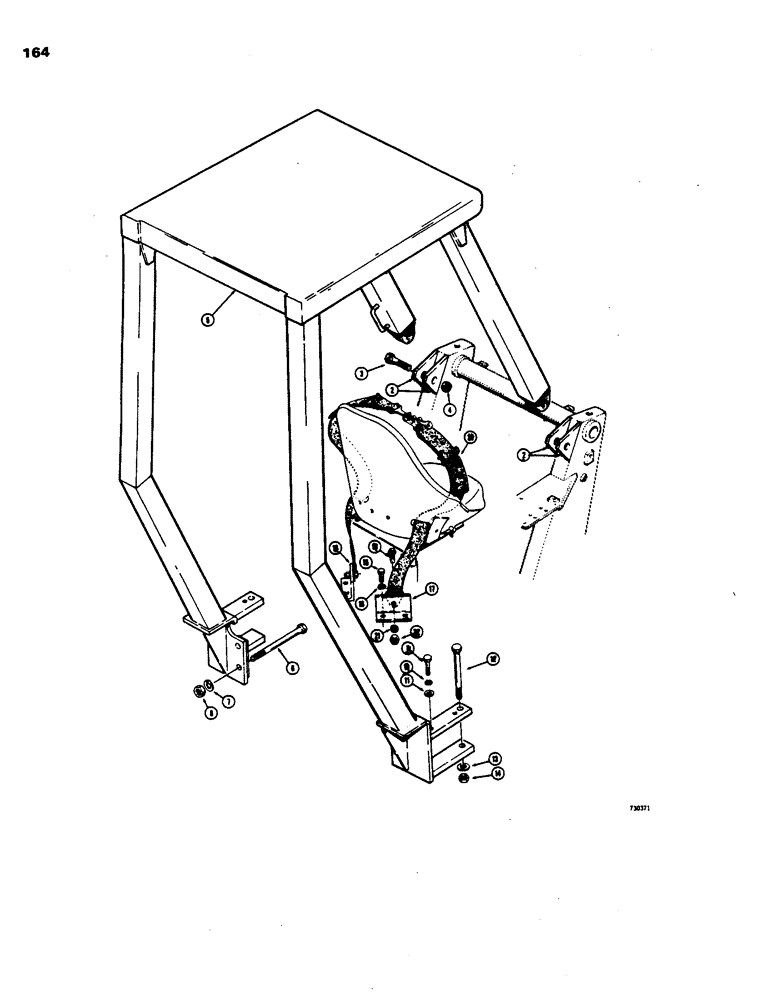

Запчасти Case 480B (164) - CAB WITH ROLLBAR AND SEAT BELTS

1

D56251

CAB ASSEMBLY - operator (Mach. Item) (Not shown)

1шт.

2

D49671

BRACKET

- mounting, rollbar

4шт.

3

26-1660

HHCS - 1" - NC x 3-3/4" (Gr. 8) Hex, 1"-8 x 3 3/4", G8

2шт.

4

25-1016

NUT,1"-8, G5

2шт.

5

D49684

ROLLBAR - tractor (Mach. Item)

1шт.

6

26-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 8

HHCS - 5/8" - 11 NC x 9" (Gr. 8)

4шт.

8

25-1010

NUT,5/8"-11, G5

4шт.

9

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 N.C. x 2-1/4"

4шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

12

26-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 8

HHCS - 5/8" - 11 NC x 8" (Gr. 8)

2шт.

13

A28084

WASHER

- special, hardened

2шт.

14

25-1010

NUT,5/8"-11, G5

2шт.

15

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

F42223

MOTOR

BRACKET - mounting, seat belt (R.H.)

1шт.

18

F42234

BRACKET - mounting, seat belt (L.H.)

1шт.

19

F42236

STEP BOLT

BOLT - shoulder (Special)

2шт.

20

L48907

BELT

SAFETY BELT (One set)

1шт.

21

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

22

425-117

NUT,7/16"-20, G5

- hex. (7/16" - 20 NF)

2шт.

23

D58555

KIT - closure parts (To enclose rear of cab when backhoe is not used) (Not shown), required when cab only used on loader models

1шт.
