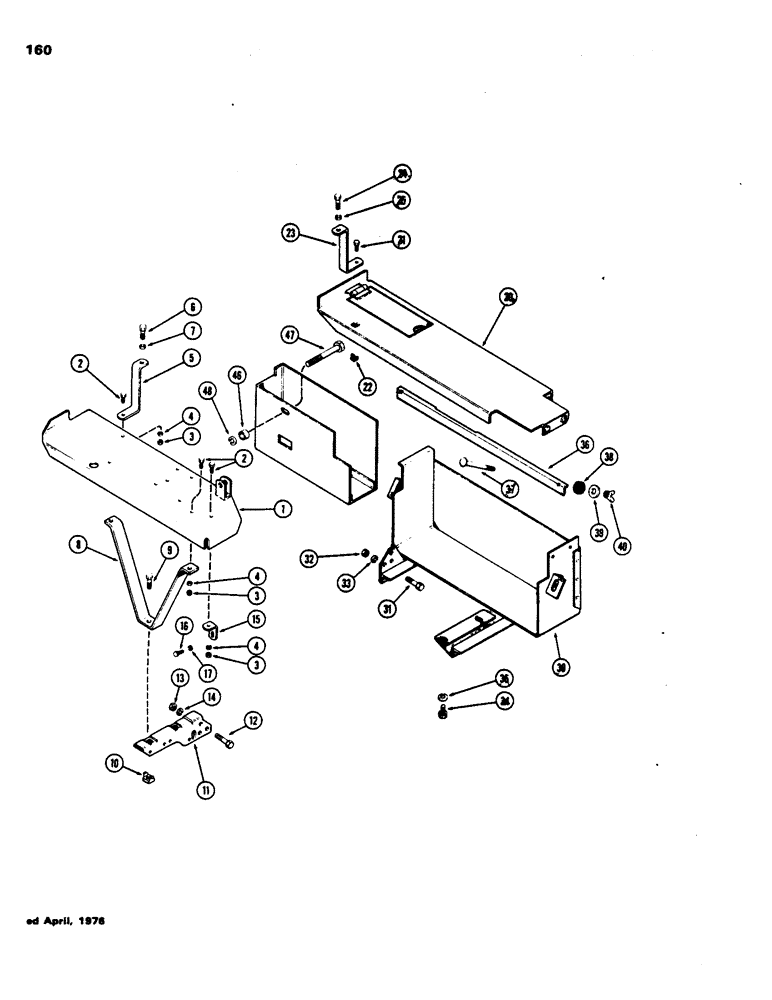

Запчасти Case 480B (160) - PLATFORM, BATTERY CASE AND TOOL BOX

1

A37534

PLATFORM

- R.H.

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

3

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

A37533

SUPPORT - upper, R.H. platform

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

A37444

PLUG

SUPPORT - lower, R.H. platform

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

1502286C2

NUT,Floating Cage, 5/16"-18

- speed, 5/16" N.C. (Tinnerman Type "J")

1шт.

11

A37365

SUPPORT

- R.H. platform to trans. case

1шт.

12

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

13

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

14

92-6

LOCK WASHER,3/8"

3шт.

15

A37479

SUPPORT - front, R.H. platform

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

20

A135823

PLATFORM

- L.H. (Replaces A38895)

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

22

131-137

SPRING NUT,Ret, 5/16"-18

Speed (Tinnerman) Ret, 5/16"-18

1шт.

23

A38899

SUPPORT

- upper, L.H. platform

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

30

A38896

CASE

- battery

1шт.

31

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

32

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

33

92-6

LOCK WASHER,3/8"

3шт.

34

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

35

92-8

LOCK WASHER,1/2"

2шт.

36

A51931

ANGLE

- battery hold down (Replaces A37510)

1шт.

37

11-656

X

BOLT - 3/8 x 3-1/2" N.C. rd. hd. sq. nk.

2шт.

38

G46867

GROMMET

- rubber, hold down bolt

2шт.

39

G49400

WASHER

- grommet (13/32 x 1-5/32 x 5/64")

2шт.

40

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C.

2шт.

45

A38902

TOOL BOX

1шт.

46

A37459

SPACER

- tool box

1шт.

47

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

48

92-8

LOCK WASHER,1/2"

1шт.
