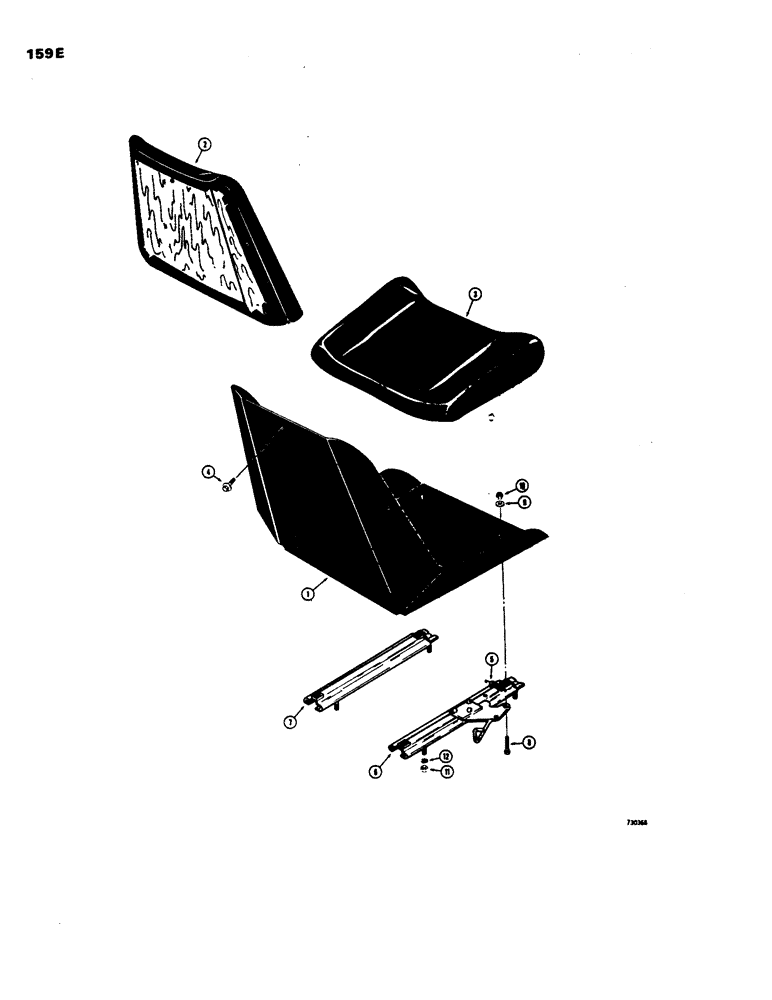

Запчасти Case 480B (159E) - OPERATORS SEAT, USED WITH D56242 SEAT POST

T40239

SEAT

ASSEMBLY - operator (R.H. slide adjuster) (Order D56576 for service of set assy. complete), Includes: Ref. 1 - 12

1шт.

D56576

SEAT

ASSEMBLY - operator (L.H. slide adjuster), Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

D53583

CUSHION

- back rest

1шт.

3

D53584

CUSHION

- seat

1шт.

4

193-545

SCREW,SEMS, Hex Hd, 1/4"-20 x 3/4"

HHMS - with internal tooth lockwasher (1/4" - 20 x 3/4")

5шт.

5

D53344

SPRING

- return, adjuster (1/2" long) If used

1шт.

5

D55954

SPRING

- return, adjuster (1-11/16" long) If used

1шт.

6

D53585

CUSHION

SLIDE - seat adjusting

1шт.

7

D53586

SLIDE

- seat, non-adjusting

1шт.

8

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

4шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

4шт.

10

131-31

LOCK NUT,5/16"-24, G8

NUT - hex. lock (5/16" - 24 NF)

4шт.

11

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF) If used

4шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 N.C.) If used

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.
