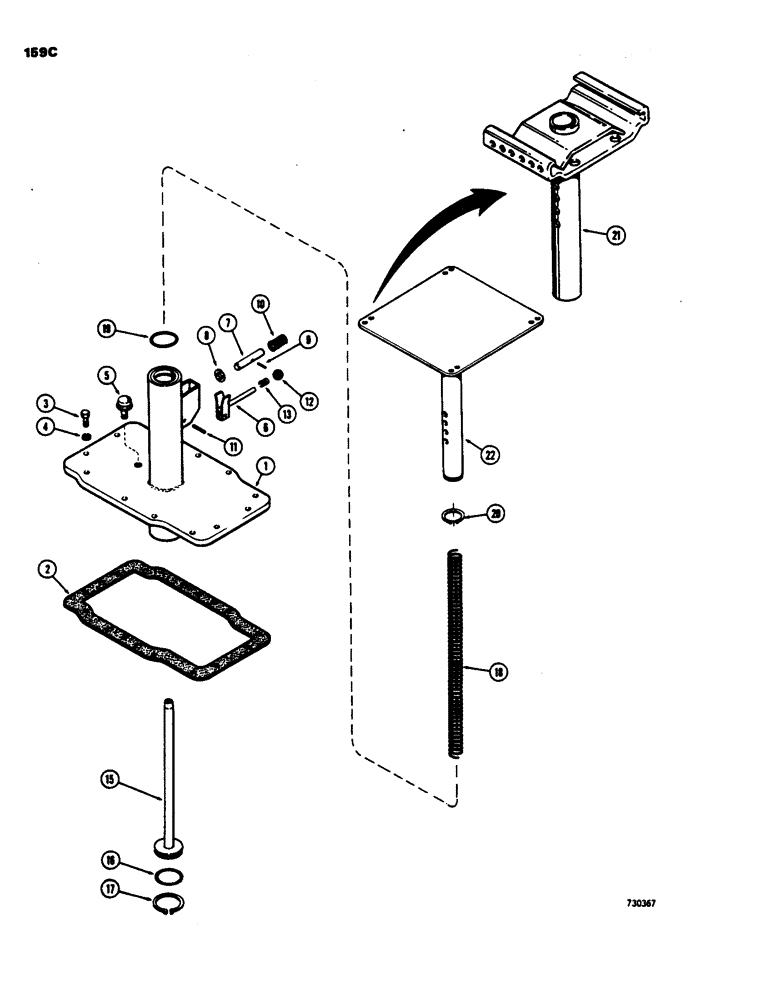

Запчасти Case 480B (159C) - SEAT SUSPENSION, JUMP SEAT TYPE

1

A37412

COVER ASSY. - trans. rear top & seat post

1шт.

2

G10941

GASKET

- cover

1шт.

3

113-228

X

BOLT - 3/8 x 1-1/4" N.C. hex.

12шт.

4

92-6

LOCK WASHER,3/8"

12шт.

5

A27173

BREATHER

- transmission rear top cover

1шт.

6

D38258

LOCK

HANDLE ASSY. - post lock

1шт.

7

D38261

PIN

- post lock

1шт.

8

D49941

SPRING WASHER

- spring

1шт.

9

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

10

D49602

SPRING

- post pin lock

1шт.

11

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

12

D38643

KNOB

- post lock

1шт.

13

D38673

RING

- tolerance, knob

1шт.

15

D38245

GUIDE

ASSY. - lift spring

1шт.

16

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - 2-1/4 x 2-1/2 x 1/8"

1шт.

17

70742

WASHER

2.50", Int, #250, lift spring guide

1шт.

18

D38257

VALVE SPRING

SPRING - lift

1шт.

19

D38645

O-RING,1.859" ID x 2 1" OD

"O" RING - 1-7/8 x 2-1/8 x 9/64"

1шт.

20

D38248

SNAP RING,#187, Ext

Ring, Snap, , seat inner post #187, Ext

1шт.

21

L44033

TUBE ASSY. - seat slide (Used with D38271, D49495 and D54982 seats) 3.54" L

1шт.

22

D56242

TUBE ASSY. - seat slide (Used with T40239, D56576 and D56409 seats)

1шт.
