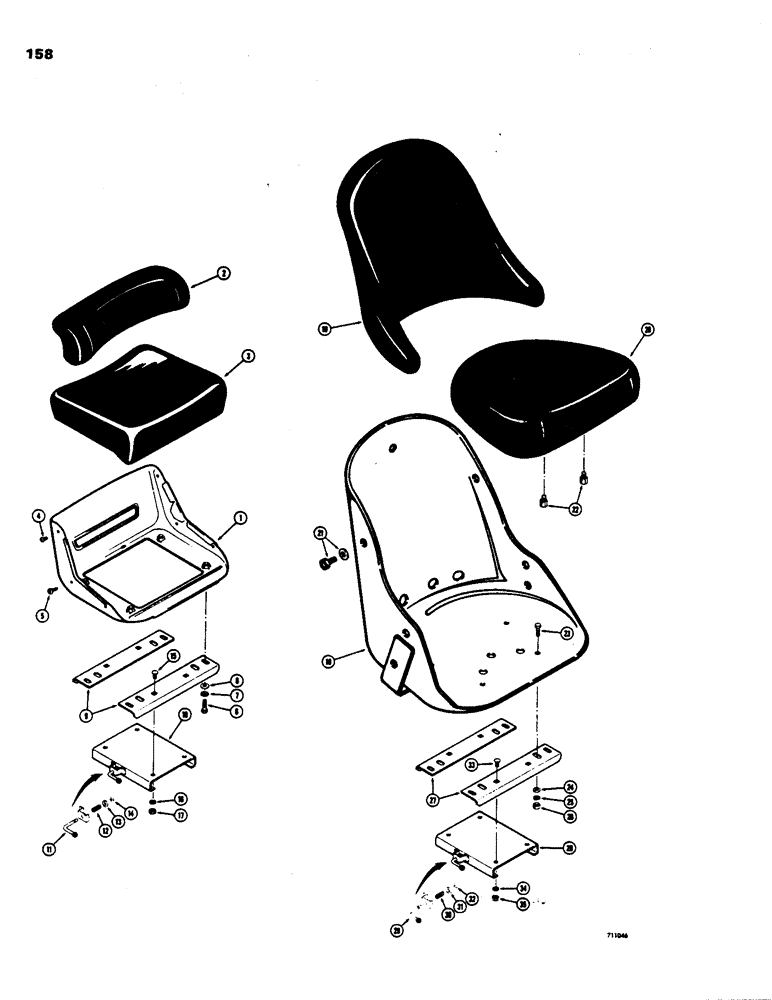

Запчасти Case 480B (158) - SEATS, STANDARD SEAT, USED WITH L44033 SEAT POST

D38271

SEAT

ASSEMBLY - operator, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - seat

1шт.

2

D39419

BACKREST

CUSHION - backrest

1шт.

3

D39420

CUSHION

- seat

1шт.

4

173-264

SCREW,Phil Rnd Hd, 1/4" - 20 x 1/2"

- 1/4 x 1/2" N.C. rd. hd.

3шт.

5

173-265

SCREW,Phil Rnd Hd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" N.C. rd. hd.

4шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

7

92-5

LOCK WASHER,5/16"

4шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

4шт.

9

L44100

BRACKET - seat mounting

2шт.

D31308

ADJUSTER

SLIDE ASSEMBLY - seat adjustment, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

SLIDE - seat adjustment

1шт.

11

D40765

LEVER

PLUNGER - seat adjustment

1шт.

12

D40766

SPRING

- plunger

1шт.

13

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

14

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, #X31, .243" Dia, E-Type

1шт.

15

12-512

BOLT

- 5/16 x 3/4" N.C. rd. hd. sq. nk.

4шт.

16

92-5

LOCK WASHER,5/16"

4шт.

17

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

D49495

SEAT ASSY.

SEAT ASSEMBLY - operator (w/o seat belt slots), road king (optional), Includes: Ref. 18 - 22

1шт.

D54982

SEAT ASSY.

SEAT ASSEMBLY - operator (w/seat belt slots), road king (optional), Includes: Ref. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

FRAME - road king seat (optional)

1шт.

19

A42747

BACKREST

CUSHION - back rest, road king seat (optional)

1шт.

20

D52470

CUSHION

- road king seat (optional)

1шт.

21

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

and washer, road king seat (optional) Hex, 3/8"-16 x 5/8", G5, Full Thd

5шт.

22

L32870

PIN

- alignment, road king seat (optional)

2шт.

23

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex., road king seat (optional)

4шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16"), road king seat (optional)

4шт.

25

92-5

LOCK WASHER,5/16"

road king seat (optional) 5/16"

4шт.

26

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex., road king seat (optional)

4шт.

27

L44100

BRACKET - seat mounting, road king (optional)

2шт.

D31308

ADJUSTER

SLIDE ASSEMBLY - seat adjustment, road king (optional), Includes: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

SLIDE - seat adjustment, road king (optional)

1шт.

29

D40765

LEVER

PLUNGER - seat adjustment, road king sat (optional)

1шт.

30

D40766

SPRING

- plunger, road king seat (optional)

1шт.

31

195-21

WASHER,5/16"

- plain (), Road king seat (optional) 5/16"

1шт.

32

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, , road king seat (optional) #X31, .243" Dia, E-Type

1шт.

33

12-512

BOLT

- 5/16 x 3/4" N.C. rd. hd. sq. nk., road king seat (optional)

4шт.

34

92-5

LOCK WASHER,5/16"

road king seat (optional) 5/16"

4шт.

35

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex., road king seat (optional)

4шт.
