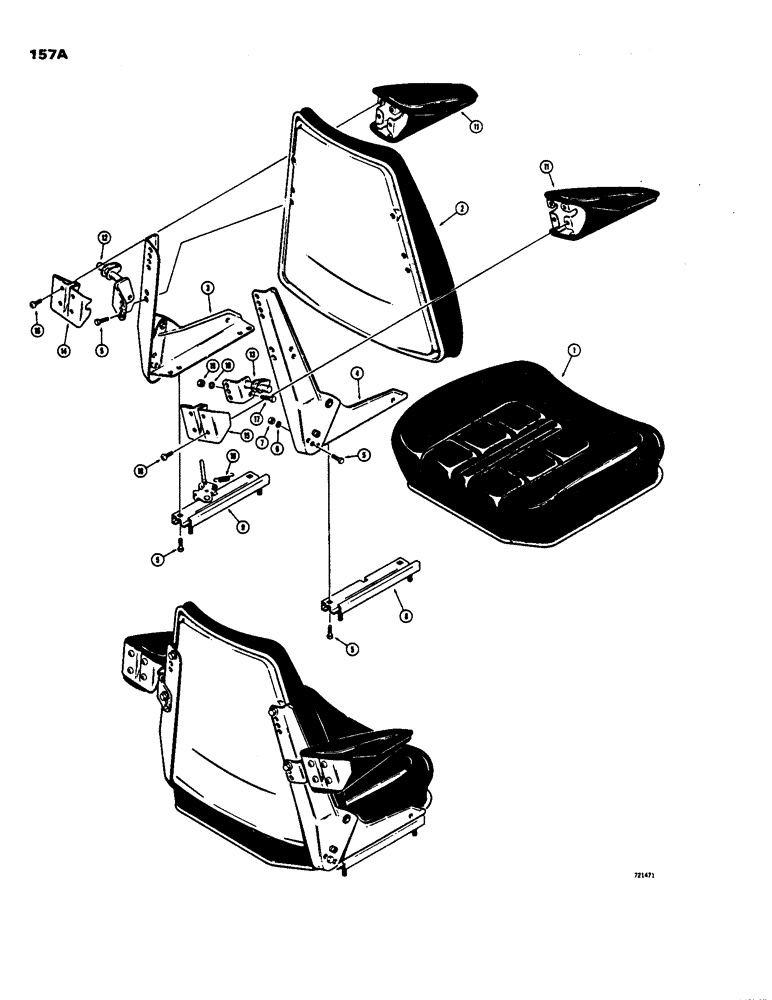

Запчасти Case 480B (157A) - D56409 OPERATORS SEAT, IDENTIFIED BY BLOCK PATTERN ON CUSHIONS, USED WITH D56242 SEAT POST

D56409

SEAT

ASSEMBLY - operator, Includes: Ref. 1 - 10

1шт.

1

D56883

SEAT

CUSHION - seat

1шт.

2

D56884

BACKREST

CUSHION - backrest

1шт.

3

D56885

RAIL ASSY.

SUPPORT - seat, L.H.

1шт.

4

D56886

RAIL ASSY.

SUPPORT - seat, R.H.

1шт.

5

113-143

BOLT,5/16" x 5/8"

HHCS - 5/16" - 18 N.C. x 5/8"

14шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

D56887

SEAT

SLIDE - seat. R.H.

1шт.

9

D56888

ADJUSTER

SLIDE - seat, L.H. (Adjustment side)

1шт.

10

D56889

SPRING

- adjustment lever

1шт.

D56424

ARMREST

arm rest kit used w/ D56409 seat only, Includes: Ref. 11 - 19

1шт.

11

D56898

ARMREST

operator, D56424 arm rest kit used w/ D56409 seat only

2шт.

12

D56899

BRACKET

- mounting, L.H., D56424 arm rest kit used w/ D56409 seat only

1шт.

13

D56900

BRACKET

- mounting, R.H., D56424 arm rest kit used w/ D56409 seat only

1шт.

14

D56901

BRACKET

PLATE - mounting, L.H., D56424 arm rest kit used w/ D56409 seat only

1шт.

15

D56902

BRACKET

PLATE - mounting, R.H., D56424 arm rest kit used w/ D56409 seat only

1шт.

16

187-1004

SELF-TAP SCREW,Cross Flat Hd, #8 x 3/8"

SCREW - self-tapping (#8-32 NC. x 3/8") Phillips hd., D56424 arm rest kit used w/ D56409 seat only

8шт.

17

113-143

BOLT,5/16" x 5/8"

HHCS - 5/16" - 18 NC x 5/8", D56424 arm rest kit used w/ D56409 seat only

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , D56424 Arm rest kit used w/ D56409 seat only 5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

D56424 arm rest kit used w/ D56409 seat only 5/16"-18, G5

2шт.
