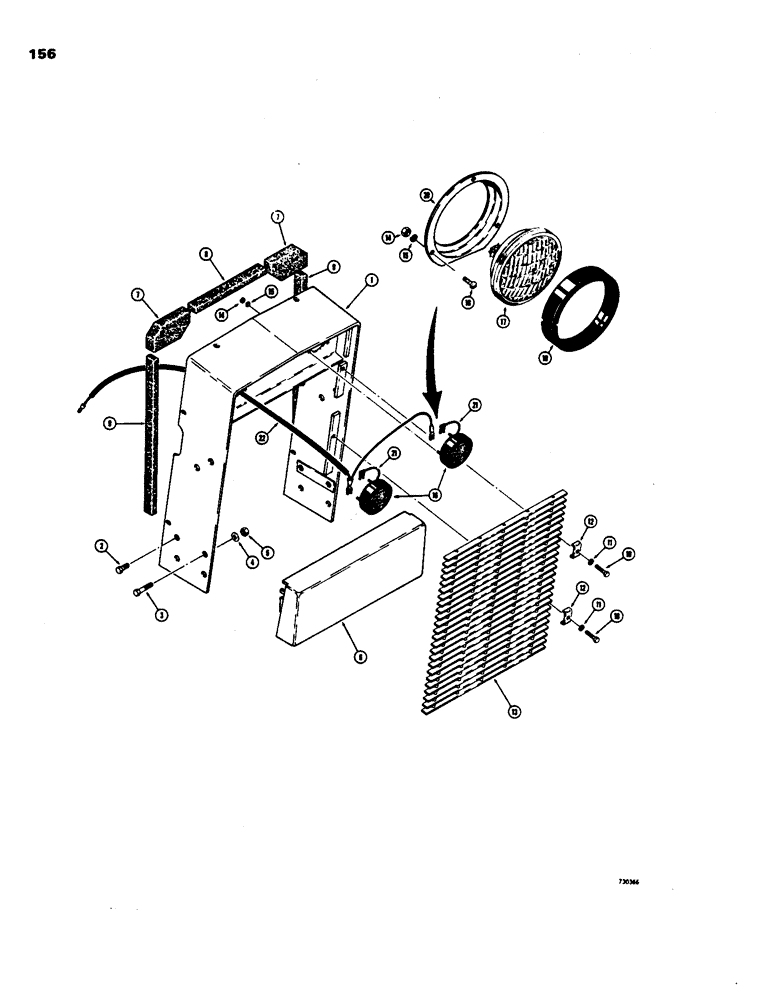

Запчасти Case 480B (156) - RADIATOR WRAPPER, GRILLE AND HEAD LIGHTS

1

D55740

SUPPORT

WRAPPER - radiator (Diesel models only) (Used prior to loader ser. no. 8709715)

1шт.

1

D57303

SUPPORT

WRAPPER - radiator (Diesel models only) (1st used loader ser. no. 8709715)

1шт.

1

D55737

SUPPORT

WRAPPER - radiator (Gas Models only) (Used prior to loader ser. no. 8709715)

1шт.

1

D57302

SUPPORT

WRAPPER - radiator (Gas models only) (1st used loader ser. no. 8709715)

1шт.

2

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

3

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

4

95-10

WASHER,5/8"

- plain () 5/8"

4шт.

5

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock, 5/8"

4шт.

6

D31071

GUARD - equipment pump (Gas models only)

1шт.

6

D31082

GUARD ASSY.

GUARD - equipment pump (Diesel models only)

1шт.

7

G46278

BAFFLE

- radiator, top

2шт.

8

G46280

BAFFLE

- radiator, top center

1шт.

9

D31270

INSULATOR

BAFFLE - radiator, side

2шт.

10

113-273

BOLT

- 3/8 x 1-1/2" N.C. hex.

4шт.

11

192-43

WASHER,3/8"

LOCK, 3/8"

4шт.

12

L13218

CLIP

- grille retainer

4шт.

13

D49649

GRILLE ASSY

GRILLE - radiator

1шт.

14

129-17

NUT,Hex, #10 - 24

NUT - hex. #10-24

6шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

16

D30243

LAMP

LIGHT ASSY. - front head (Repairs Figure 97A) (Used prior to loader ser. no. 8709715)

2шт.

17

D33182

LAMP

LIGHT - front head (1st used loader ser. no. 8709715)

2шт.

18

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- mach., pan hd. (#10-24 x 1/2" zinc plated (Use with D33182 light)

6шт.

19

D57287

RETAINER

- head light (Use with D33182)(Light only)

2шт.

20

D57288

RING

- light retainer (Use with D33182 light only)

2шт.

21

A11768

ELECTRICAL WIRE

CABLE - ground, headlight

2шт.

22

D39242

ELECTRICAL WIRE

CABLE - connecting, headlight

1шт.
