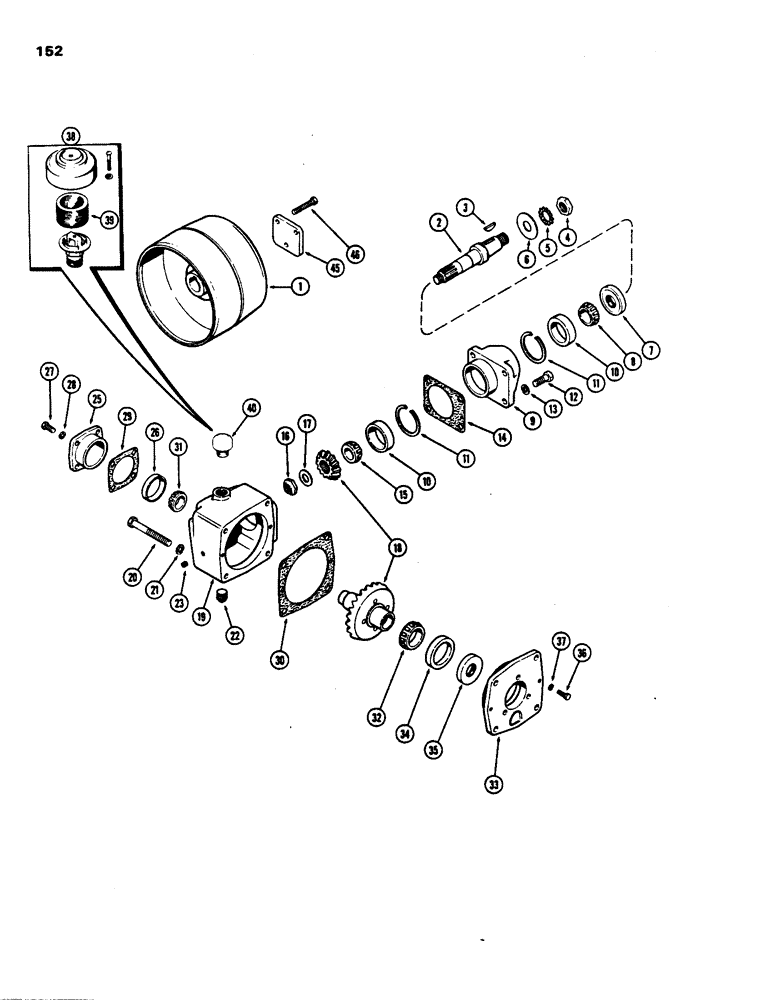

Запчасти Case 480B (152) - BELT PULLEY

1

G14189

PULLEY - belt (10-1/4" dia.)

1шт.

2

A36055

SHAFT

- pulley

1шт.

3

126-144

WOODRUFF KEY,#129, 3/8" x 2 1/8", HT

KEY - pulley (#129 Woodruff)

1шт.

4

25-1516

NUT,Jam, 1"-14, G5

- jam, 1" N.F. hex.

1шт.

5

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

6

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain, 1-1/16 x 2-1/2 x 11/64"

1шт.

7

G13817

SEAL ASSY.

SEAL - oil, pulley shaft (1-25/32 x 2-3/4 x 1/2")

1шт.

8

G15213

ROLLER BEARING

CONE - outer bearing, pulley shaft

1шт.

9

G14188

HOUSING ASSY. - output, Includes: Ref. 10 and 11

1шт.

10

A26680

ROLLER BEARING,2.7510" OD x 0.75"

CUP - bearing

2шт.

11

A29330

RING, SNAP

RING - snap

2шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

G46832

GASKET - output housing (green .003")

1шт.

15

A36054

CONE

- inner bearing, output shaft

1шт.

16

G16614

NUT

- lock (3/4" - 24)

1шт.

17

195-45

WASHER,3/4"

1шт.

18

A37736

GEAR SET - pinion, matched

1шт.

19

G1297

HOUSING - pinion gear

1шт.

20

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

4шт.

21

92-8

LOCK WASHER,1/2"

4шт.

22

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2' sq. hd.

1шт.

23

221-1849

PLUG

- pipe, 1/8" socket hd.

1шт.

25

G14186

CARRIER ASSY. - rear bearing, Includes: Ref. 26

1шт.

26

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - rear bearing

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

G46830

GASKET - rear housing (blue .005")

1шт.

29

G46834

GASKET - rear housing (brown .010")

1шт.

30

G46831

GASKET - front housing (blue .005")

1шт.

30

G46833

GASKET

- front housing (brown .010")

1шт.

31

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - rear bearing

1шт.

32

G15215

ROLLER BEARING

CONE - front bearing

1шт.

33

A37645

CARRIER

HOUSING ASSY. - front bearing, Includes: Ref. 34

1шт.

34

G15214

BEARING CUP

CUP - front bearing

1шт.

35

G13817

SEAL ASSY.

SEAL - oil, front bearing (1-25/32 x 2-3/4 x 1/2")

1шт.

36

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

38

A9238

BREATHER

ASSY. - oil (w/servic filter) (Order A75179), Includes: Ref. 39

1шт.

39

A10059

FILTER, ELEMENT

ELEMENT - filter

1шт.

40

A75179

BREATHER

- oil (w/washable nylon filter)

1шт.

45

T134

PULLER - belt pulley

1шт.

46

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

3шт.
