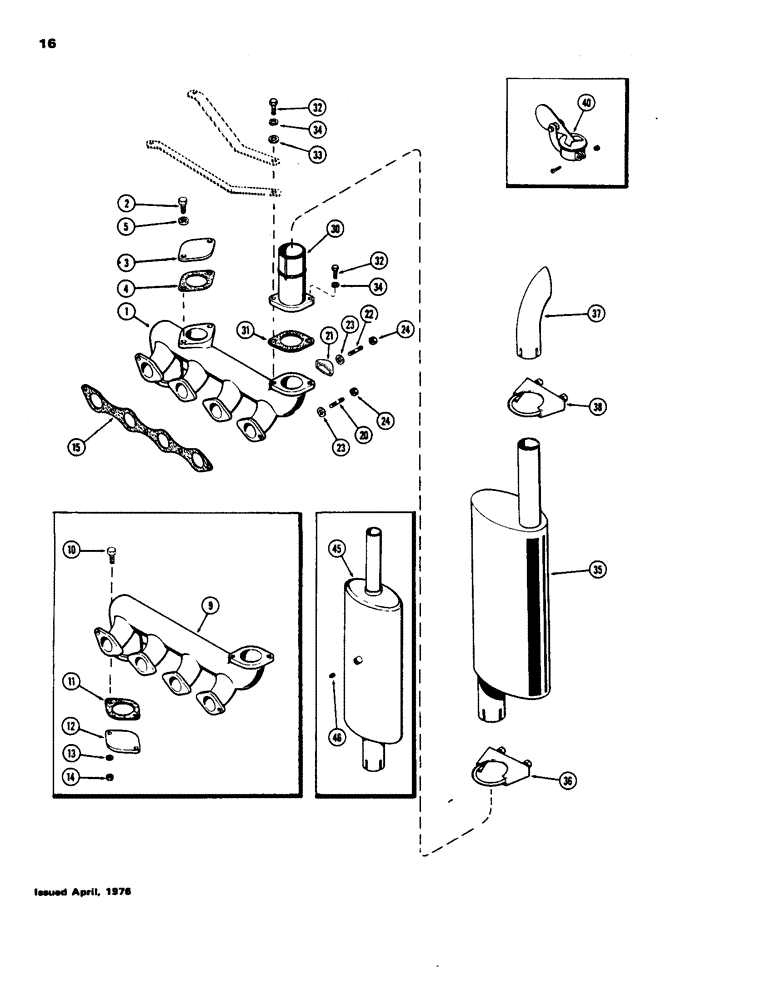

Запчасти Case 480B (016) - EXHAUST MANIFOLD AND MUFFLER, (188) DIESEL ENGINE

1

A39233

MANIFOLD

ASSY. - exhaust (1st used eng. ser. no. 2706683), Includes: Ref. 2 - 6

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

3

A38188

PLATE

- exhaust opening cover

2шт.

4

G46853

MANIFOLD GASKET

- cover plate

1шт.

5

195-25

WASHER,3/8"

- plain, 13/32 x 13/16 x 5/64"

4шт.

6

131-903

NUT,3/8"-16

NUT - 3/8" N.C. Seez - Pruf

4шт.

9

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust (Used prior to eng. ser.no. 2706683) (Order A39233)

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

11

G46853

MANIFOLD GASKET

- cover

1шт.

12

A38188

PLATE

COVER - exhaust opening

1шт.

13

195-25

WASHER,3/8"

- plain, 13/32 x 13/16 x 1/16"

2шт.

14

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Seez-Pruf)

2шт.

15

G46872

MANIFOLD GASKET

- exhaust, Serial Range: manifold-head

1шт.

20

A29431

STUD

- manifold to head (3/8" N.C. x 1/3/4")

2шт.

21

A35028

CLAMP

-, Serial Range: manifold-head

3шт.

22

A39129

STUD

- manifold clamp (3/8" N.C x 2-1/16")

3шт.

23

195-25

WASHER,3/8"

- plain, 13/32 x 13/16 x 1/16"

5шт.

24

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Seez-Pruf)

5шт.

30

G2095

FITTING

OUTLET - exhaust, upright muffler

1шт.

31

G46853

MANIFOLD GASKET

- outlet

1шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

33

195-25

WASHER,3/8"

- plain, 13/32 x 13/16 x 5/64"

4шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

A39561

MUFFLER

- exhaust

1шт.

36

A13240

CLAMP,2-5/8" ID

ASSY. - muffler

1шт.

37

A39571

PIPE, EXHAUST SYSTEM

PIPE - extension, muffler

1шт.

38

G45410

CLAMP

- extension

1шт.

40

G45048

CAP

ASSY. - weather, muffler

1шт.

45

D65392

MUFFLER

ASSY. - exhaust, spark arresting

1шт.

46

217-76

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG - 1/4" P.T. sq. hd., spark arresting muffler

1шт.
