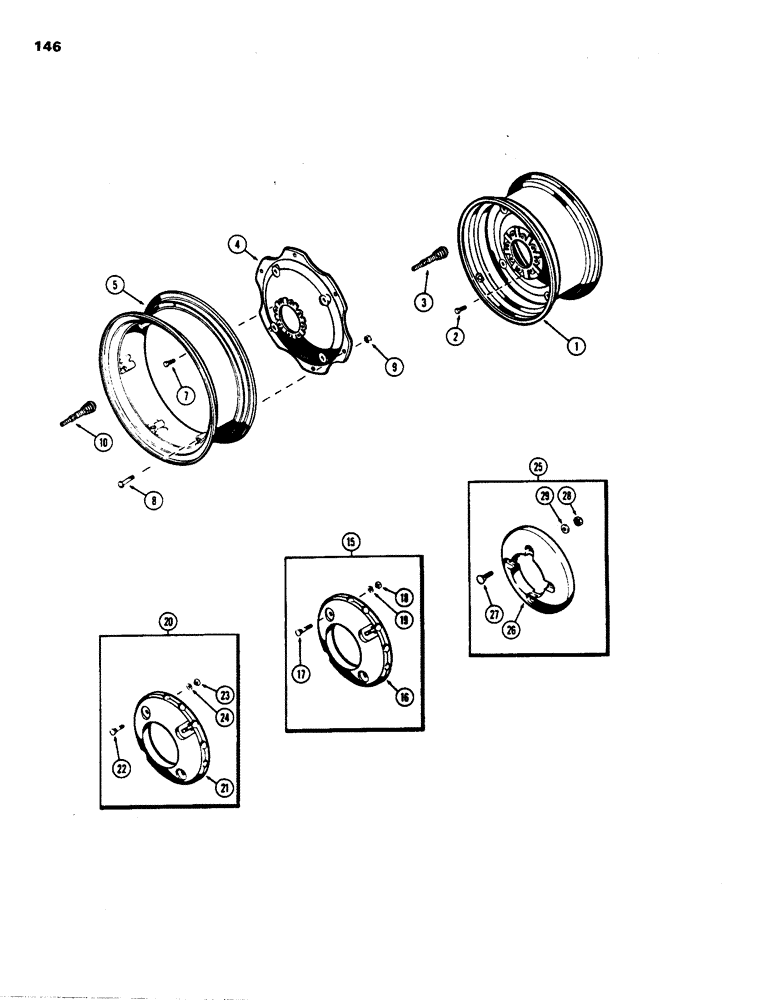

Запчасти Case 480B (146) - REAR WHEELS AND WEIGHTS
№
Артикул
Название
Примечание
Количество
1
A38403
RIM
WHEEL - integral (for 13.6 x 24 or 14.9 x 24 tire) (for tractor w/backhoe)
2шт.
1
G45188
RIM
WHEEL - integral (for 13.6 x 24 or 14.9 x 24 tire) (for tractor w/no backhoe)
2шт.
1
A139085
WHEEL
- integral (for 16.9 x 24 tire) (for tractor w/backhoe) (Replaces A39787)
2шт.
2
A38208
WHEEL BOLT,5/8-18 UNF Class 2A
BOLT - wheel to shaft (5/8 x 1" N.F. spec.)
16шт.
3
A20058
VALVE STEM
- Tire (tubeless)
2шт.
4
G46240
DISC
- wheel (for 24" demountable rim)
2шт.
4
G12001
DISC
- wheel (for 28" demountable rim)
2шт.
5
D72304
RIM
- demountable (for 13.6 x 24, 14.9 x 24 and 16.9 x 24 tire)
2шт.
5
A39535
RIM
- demountable (for 16.9 x 28 tire)
2шт.
7
A38208
WHEEL BOLT,5/8-18 UNF Class 2A
BOLT - wheel disc to shaft (5/8 x 1" N.F. spec.)
16шт.
8
G10701
BOLT
- rim (5/8 x 2-11/16" N.F. spec.)
12шт.
9
129-565
SPECIAL NUT,5/8"-18, G5
- 5/8" N.F. hex.
12шт.
10
A20058
VALVE STEM
- Tire (tubeless)
2шт.
15
G12609
WEIGHTS - 24" wheel (1st set) (Mach. Item), Includes: Ref. 16 - 19
1шт.
16
NSS
NOT SOLD SEPARAT
WEIGHT - (78 lb.)
2шт.
17
11-1036
BOLT (MACHINE)
BOLT - 5/8 x 2-1/4 N.C. rd. hd. sq. nk.
4шт.
18
25-1010
NUT,5/8"-11, G5
4шт.
20
G12610
WEIGHTS - 24" wheel (added set) (Mach. Item), Includes: Ref. 21 - 24
1шт.
The wheel weights were never set up as parts. They were strictly wholegoods. Drawing for the 28" weight is G1092. (found on old micro film) by tf 6/5/96
1шт.
21
NSS
NOT SOLD SEPARAT
WEIGHT - (78 lb.)
2шт.
23
25-1010
NUT,5/8"-11, G5
4шт.
25
G12018
WEIGHTS - 28" wheel (Mach. Item), Includes: Ref. 26 - 29
1шт.
26
NSS
NOT SOLD SEPARAT
WEIGHT - (73 lb.)
2шт.
28
25-1010
NUT,5/8"-11, G5
4шт.
Выбрано товаров: 29
