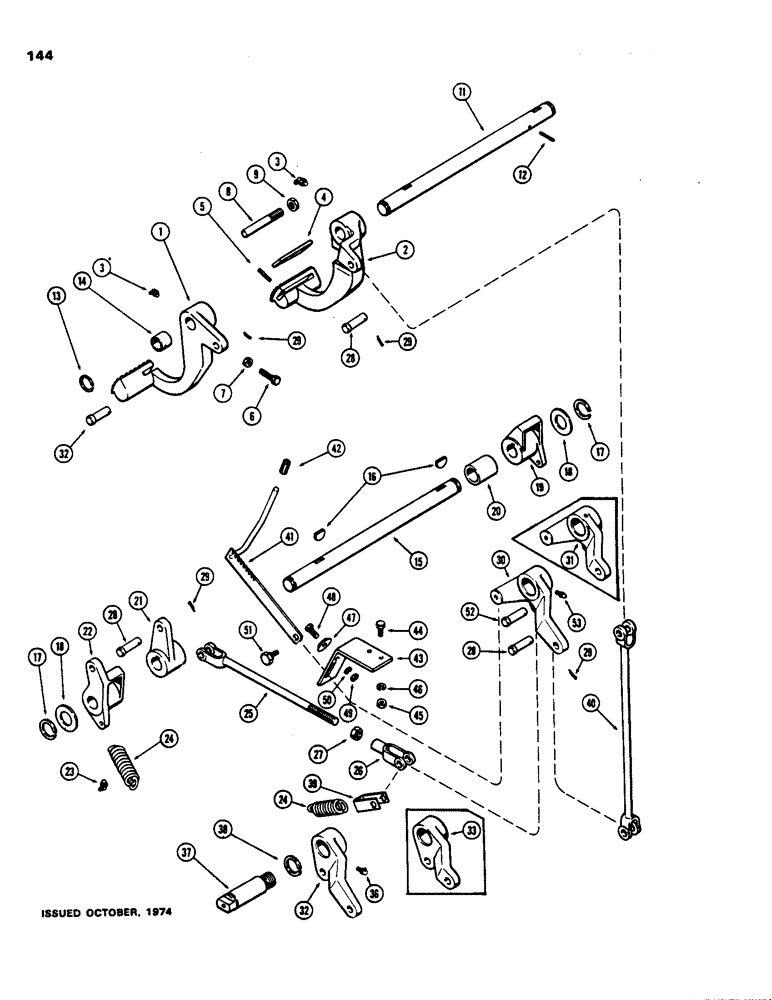

Запчасти Case 480B (144) - BRAKE PEDALS AND LINKAGE

1

A37420

PEDAL - brake, R.H.

1шт.

2

A37421

PLUG

PEDAL - brake, L.H.

1шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

4

A37704

LOCK - brake pedal

1шт.

5

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Pedal stop Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

7

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 5/16" N.C.

1шт.

8

A37241

STUD

- pedal stop

1шт.

9

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC hex

1шт.

11

A37701

SHAFT

- cross, brake pedal

1шт.

12

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Cross shaft 1/8" x 1 1/2", Slotted

1шт.

13

A37235

SNAP RING,#100, .941", Ext

RING - snap, pedal shaft

1шт.

14

A37530

BUSHING

- pedal shaft

2шт.

15

G10708

SHAFT

- cross, lower

1шт.

16

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Lever to shaft #15, 1/4" x 1", HT

2шт.

17

F62093

RING, SNAP

RING - snap, lever cross shaft

2шт.

18

B18145

WASHER

- cross shaft (1-3/32 x 1-7/8 x 1/16")

2шт.

19

G1057

LEVER

- L.H. brake (L.H. end of shaft)

1шт.

20

G16783

SPACER

- cross shaft

1шт.

21

A37230

LEVER

- L.H. brake (R.H. end of shaft)

1шт.

22

A37231

LEVER

- R.H. brake

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str

1шт.

24

G10848

SPRING

- lever return

2шт.

25

A37239

ROD

- brake, Serial Range: lever-pivot

2шт.

26

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod to pivot lever

2шт.

27

215-158

NUT - jam, 1/2" N.F. hex.

2шт.

28

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

7шт.

29

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

8шт.

30

A51813

LEVER - L.H. brake (1st used trans. ser no. 2430911)

1шт.

31

A37233

LEVER - L.H. brake (used prior to trans. ser. no. 2430911)

1шт.

32

A51812

LEVER - R.H. brake (1st used trans. ser. no. 2430911)

1шт.

33

A37490

PLASTIC PLUG

LEVER - R.H. brake (used prior to trans. ser. no. 2430911)

1шт.

36

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

37

A37491

SHAFT

- stub, pivot lever

1шт.

38

A37237

TEE

RING - snap, pivot shaft

1шт.

39

A37540

BRACKET - L.H. brake spring

1шт.

40

A37238

ROD

- brake, Serial Range: pedal-pivot

2шт.

41

A37482

RATCHET

- release, brake lock

1шт.

42

A23953

TIP

- release lever

1шт.

43

A37425

GUIDE - release ratchet

1шт.

44

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

45

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

46

92-5

LOCK WASHER,5/16"

2шт.

47

A29920

PAWL

- brake lock

1шт.

48

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

49

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

50

92-6

LOCK WASHER,3/8"

1шт.

51

A37252

STEP BOLT

BOLT - shoulder, ratchet

1шт.

52

A37542

AXLE PIN

PIN - brake, Serial Range: lever-bracket

1шт.

53

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str

1шт.
