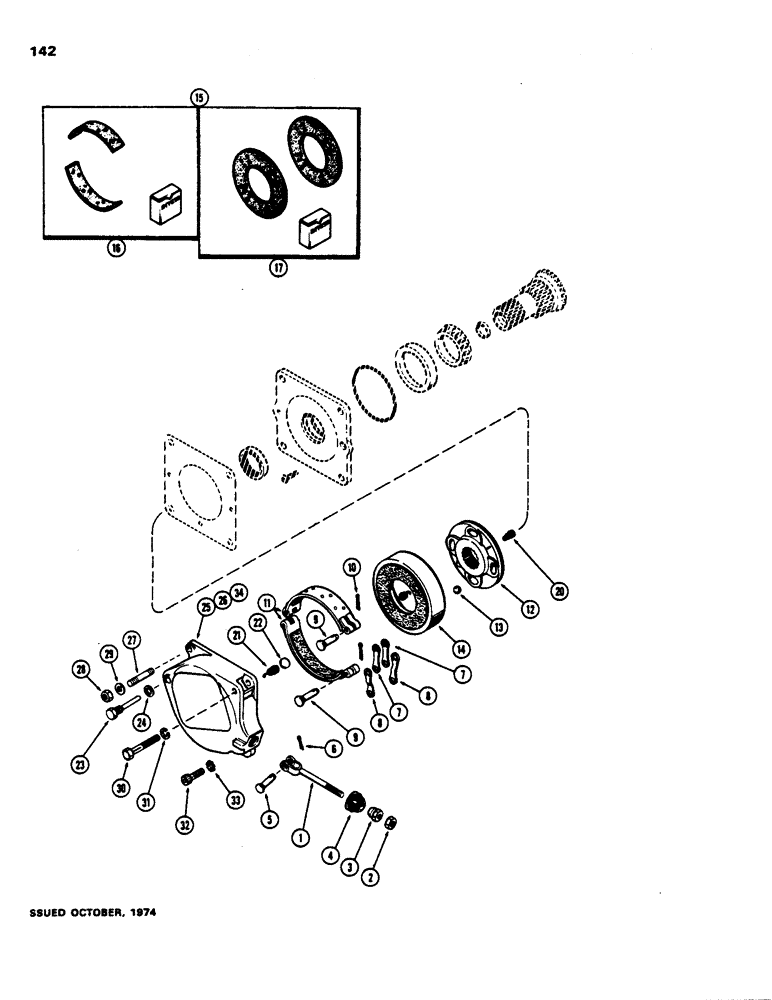

Запчасти Case 480B (142) - BRAKE ASSEMBLY

1

G46351

ROD

- brake actuating

2шт.

2

25-157

JAM NUT,Jam, 7/16"-20, G5

- jam, 7/16" N.F. hex.

2шт.

3

G10709

NUT

- adjusting, brake rod

2шт.

4

A135946

DUST CAP

CAP - dust, brake rod opening (Replaces G10943)

2шт.

5

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke, brake rod

2шт.

6

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

7

G46345

LINK

- straight, brake actuating

4шт.

8

G46344

LINK

- offset, brake actuating

4шт.

9

G49082

PIN,14.22mm OD x 40.03mm L

- link

4шт.

10

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

11

A44756

BAND

- actuating (Set of 2)(Replaces G45468)

2шт.

12

A142980

BRAKE DISC

DISC - brake (Replaces G45362)

2шт.

13

211-21

BALL

- actuating (1" dia.)

8шт.

14

A142979

DRUM

- actuating (Replaces G45361)

2шт.

16

A44721

KIT

- lining, band (Replaces A41728)

1шт.

17

A44720

LINING

KIT - lining, disc & drum (Replaces A41552)

1шт.

20

G48508

SPRING

- disc return

4шт.

21

G48507

SPRING

- band return

4шт.

22

41-13

GUARD,Exp, 13/16"

- return spring (13/16" expansion)

4шт.

23

G15801

BOLT

- anchor, brake band

2шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25

G1394

COVER

- brake, R.H. (for diff. lock see ref. 34)

1шт.

26

G1395

COVER

- brake, L.H. (R.H. shown)

1шт.

27

A38707

STUD

- cover (1/2" N.C. - N.F. x 2-1/2")

4шт.

28

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

29

92-8

LOCK WASHER,1/2"

4шт.

30

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Cover Hex, 1/2"-13 x 3 3/4", G5

2шт.

31

92-8

LOCK WASHER,1/2"

2шт.

32

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

SCREW - cap, 1/2 x 1-3/4" N.C. hex. socket hd.

2шт.

33

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

34

A37052

COVER

- brake, R.H. (w/diff. lock)

1шт.
