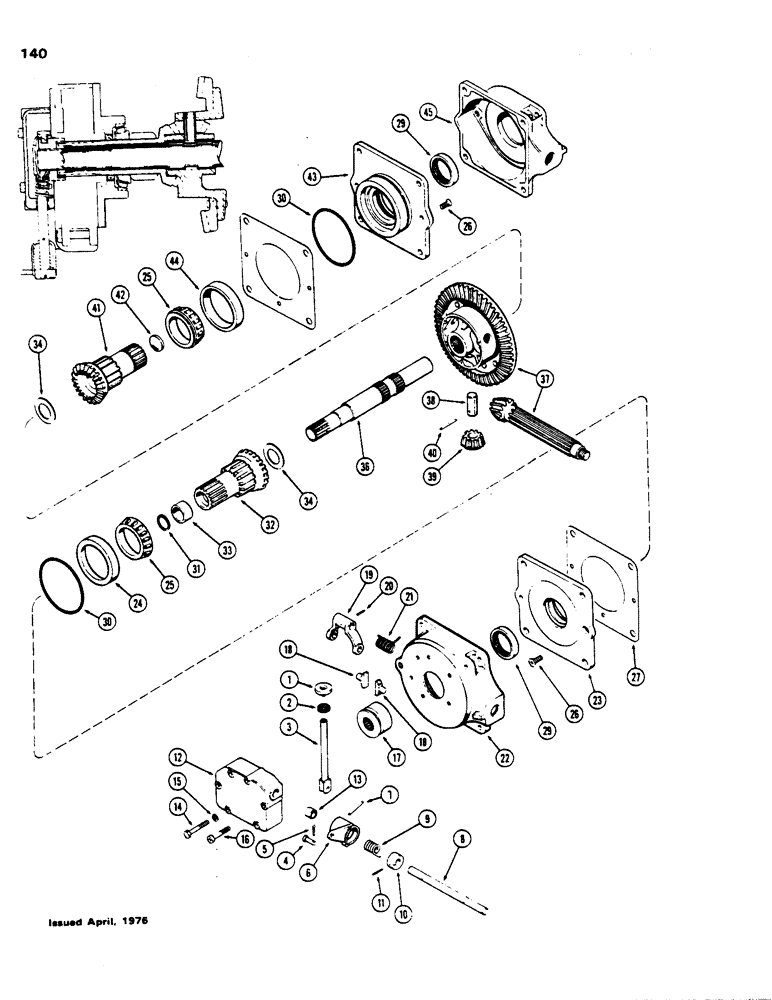

Запчасти Case 480B (140) - DIFFERENTIAL WITH LOCK

1

A37501

PEDAL

- foot, differential lock

1шт.

2

A37563

GROMMET

- platform

1шт.

3

A37504

ROD -, Serial Range: pedal-lever

1шт.

4

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke, Rod to lever 5/16" x .940"

1шт.

5

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

6

A37565

LEVER

- actuating, differential lock (Replaces A39407)

1шт.

7

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

8

A37564

SHAFT

- actuating

1шт.

9

A36446

SPRING

- lever

1шт.

10

A36447

RETAINER

COLLAR - spring retainer

1шт.

11

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

12

A35923

HOUSING

COVER ASSY. - lock, Includes: Ref. 13

1шт.

13

A35925

BUSHING

- lever shaft

1шт.

14

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

5шт.

15

92-5

LOCK WASHER,5/16"

5шт.

16

61-536

HEX SOC SCREW,5/16"-18 x 2 1/4"

SCREW - 5/16 x 2-1/4" N.C. hex. socket hd.

1шт.

17

A35929

CLAMP

COLLAR - locking

1шт.

18

A65101

FINGER

- locking collar (Replaces A38750)

2шт.

19

A38749

LEVER

- locking collar

1шт.

20

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

21

A35933

SPRING

- inner

1шт.

22

A37052

COVER

- R.H. brake

1шт.

23

REF

INSTRUCTION

CARRIER ASSY. - bearing, R.H. side gear (See Figure 139A), Includes: Ref. 24

1шт.

24

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing

1шт.

25

A30114

CONE

- bearing, side gear

2шт.

26

171-237

SCREW,Cross Flat Hd, 3/8" - 16 x 3/4", W/ Nylon Insert

- Philips, 3/8 x 3/4" N.C. flat hd.

2шт.

27

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

27

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

29

G10689

SEAL

- oil, bearing carrier (2-1/4 x 3 x 1/2")

2шт.

30

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier (5 x 5 - 1/4 x 1/8")

2шт.

31

A35919

OIL SEAL

- oil, R.H. side gear (1-3/8 x 1-5/8 x 1/8")

1шт.

32

A144339

GEAR

ASSY. - R.H. side, differential (Replaces A38935), Includes: Ref. 33

1шт.

33

A35921

BUSHING,34.89mm ID x 39.83mm OD x 20.65mm L

- R.H. side gear

1шт.

34

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, center wheen (.089")

1шт.

34

A39007

WASHER

- thrust, center wheel (.094")

1шт.

34

A39008

WASHER

- thrust, center wheel (.099") (Replaces A30533)

1шт.

34

A39009

WASHER

- thrust, center wheel (.104") (Replaces A30045)

1шт.

34

A39010

WASHER

- thrust, center wheel (.109") (Replaces A30543)

1шт.

34

A39011

WASHER

- thrust, center wheel (.119") (Replaces A30051)

1шт.

36

A144266

SHAFT

- cross (Replaces A136955 & A35918)

1шт.

37

A39266

GEAR, BEVEL

RING GEAR & COUNTERSHAFT - matched set (Replaces A38401)

1шт.

38

A39024

SHAFT

PIN - pinion gear

3шт.

39

A38933

GEAR

- pinion

3шт.

40

138-2036

PIN,3/16" x 2", Coiled

3шт.

41

A144337

GEAR

ASSY. - L.H. side, differential (Replaces A38937), Includes: Ref. 42

1шт.

42

A29902

PLUG

- L.H. side gear (1-5/8" exp.)

1шт.

43

REF

INSTRUCTION

CARRIER ASSY. - bearing, L.H. side gear (See Figure 139A), Includes: Ref. 44

1шт.

44

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing

1шт.

45

G1395

COVER

- L.H. brake

1шт.
