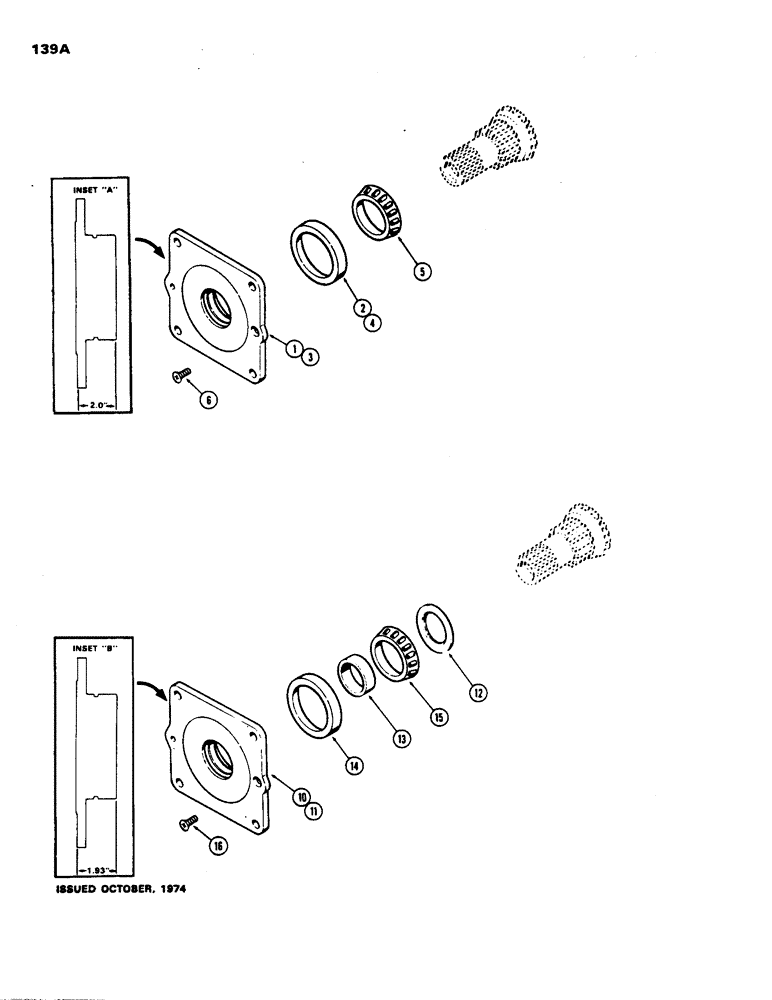

Запчасти Case 480B (139A) - DIFFERENTIAL BEARING COVER

1

A140279

HOUSING

CARRIER ASSY. - bearing, R.H. side gear (L.H. shown) (2" wide. See Inset "A") (Replaces G30490), Includes: Ref. 2

1шт.

A140279 RH bearing carrier - If holding the flat side of carrier against your chest with the drain hole on the bottom, the countersunk hole should be on RH side.

1шт.

2

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear

1шт.

3

A140280

HOUSING

CARRIER ASSY. - bearing, L.H. side gear (2" wide. See Inset "A") (Replaces G30491), Includes: Ref. 4

1шт.

A140280 LH bearing carrier - If holding the flat side of carrier against your chest with the drain hole on the bottom, the countersunk hole should be on LH side.

1шт.

4

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear

1шт.

5

A30114

CONE

- bearing, side gear (Timken #390)

2шт.

A30114 bearing cone (ref. 5) can be used to replace A30044 (ref. 15) if A138489 (ref. 12) & A138482 (ref. 13) are discarded

1шт.

6

171-237

SCREW,Cross Flat Hd, 3/8" - 16 x 3/4", W/ Nylon Insert

- 3/8 x 3/4" flat hd. Phillips

2шт.

10

NSS

NOT SOLD SEPARAT

CARRIER - bearing, R.H. side gear (L.H. shown) (1.93" wide. See Inset "B") (Order 1 & 5 and discard ref. 12 & 13), trans s/n 2438862 thru 2446129 only

1шт.

11

NSS

NOT SOLD SEPARAT

CARRIER - bearing, L.H. side gear (1.93" wide. See Inset "B") (Order ref. 3 & 5 and discard ref. 12 & 13), trans s/n 2438862 thru 2446129 only

1шт.

12

A138489

WASHER

- thrust, side gear bearing, trans s/n 2438862 thru 2446129 only

2шт.

13

A138482

BUSHING

SLEEVE - bearing support, trans s/n 2438862 thru 2446129 only

2шт.

14

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear, trans s/n 2438862 thru 2446129 only

2шт.

15

A30044

ROLLER BEARING

CONE - bearing, side gear (Timken #399A), trans s/n 2438862 thru 2446129 only

2шт.

A30114 bearing cone (ref. 5) can be used to replace A30044 (ref. 15) if A138489 (ref. 12) & A138482 (ref. 13) are discarded

1шт.

16

171-237

SCREW,Cross Flat Hd, 3/8" - 16 x 3/4", W/ Nylon Insert

- 3/8 x 3/4" flat hd. Phillips, trans s/n 2438862 thru 2446129 only

2шт.
