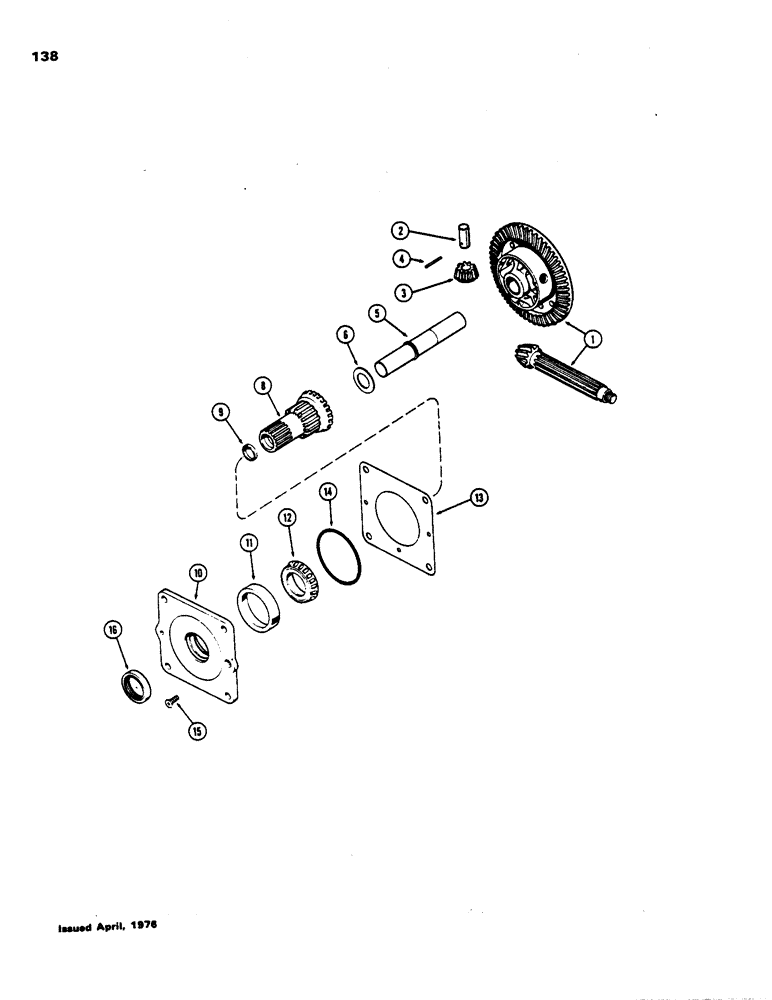

Запчасти Case 480B (138) - DIFFERENTIAL WITHOUT LOCK

1

A39267

GEAR, BEVEL

RING GEAR & COUNTERSHAFT - (Matched)

1шт.

2

A39024

SHAFT

PIN - pinion gear

3шт.

3

A38933

GEAR

- pinion

3шт.

4

138-2036

PIN,3/16" x 2", Coiled

3шт.

5

A37186

SHAFT

- cross, differential

1шт.

6

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, center wheel (.089")

1шт.

6

A39007

WASHER

- thrust, center wheel (.094")

1шт.

6

A39008

WASHER

- thrust, center wheel (.099")

1шт.

6

A39009

WASHER

- thrust, center wheel (.104")

1шт.

6

A39010

WASHER

- thrust, center wheel (.109")

1шт.

6

A39011

WASHER

- thrust, center wheel (.119")

1шт.

8

A144339

GEAR

ASSY. - side, differential (Replaces A38937), Includes: Ref. 9

2шт.

9

A29902

PLUG

- side gear (1-5/8" exp.)

1шт.

10

A140279

HOUSING

CARRIER ASSY. - R.H. brg., side gear (See Figure 139A) (Replaces G30490), Includes: Ref. 11

1шт.

10

A140280

HOUSING

CARRIER ASSY. - L.H. brg., side gear (See Figure 139A) (Replaces G30491), Includes: Ref. 11

1шт.

11

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, R.H. & L.H.

1шт.

12

REF

INSTRUCTION

CONE - bearing, side gear R.H. & L.H. (See Figure 139A)

2шт.

13

A39289

SHIM,.007" Thk

Bearing carrier (.003") .007" Thk

1шт.

13

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

13

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

14

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier (5 x 5-1/4 x 1/8")

2шт.

15

171-237

SCREW,Cross Flat Hd, 3/8" - 16 x 3/4", W/ Nylon Insert

- Phillips, 3/8 x 3/4" N.C. flat hd.

2шт.

16

A39273

OIL SEAL

- oil, bearing carrier (2-1/4 x 3 x 1/2")

2шт.
