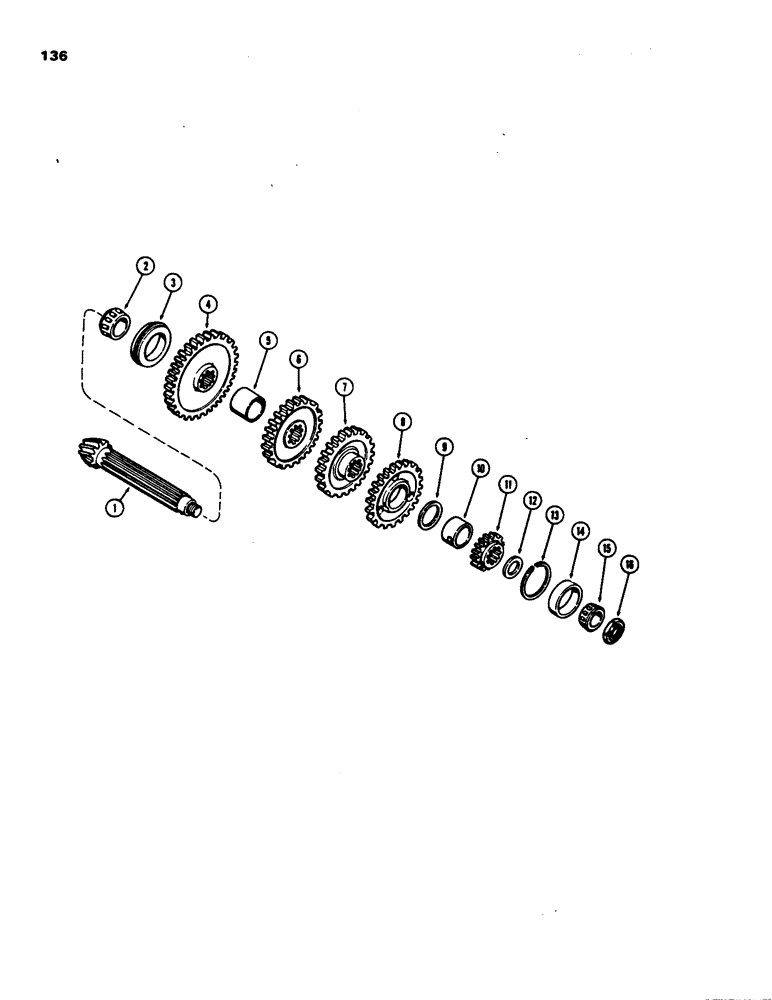

Запчасти Case 480B (136) - TRANSMISSION COUNTERSHAFT

1

NSS

NOT SOLD SEPARAT

COUNTERSHAFT - (Order from Figure 138 or 140)

1шт.

2

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - rear bearing, countershaft

1шт.

3

A30115

CUP

- rear bearing, countershaft

1шт.

4

A38157

SPRING

- 1st speed (47 T)

1шт.

5

A36619

BUSHING

SPACER - gear, 1st & 2nd speed (1-5/8" long)

1шт.

6

A37732

GEAR

- 2nd speed (38 T)

1шт.

7

A37731

GEAR

- 3rd speed (35 T)

1шт.

8

A37730

GEAR

- oil slinger (35 T)

1шт.

9

G46070

WASHER

- slinger gear (1-5/8 x 2-3/4 x 1/8")

1шт.

10

G13260

BUSHING

SPACER - gear, 4th speed (1-1/4" wide)

1шт.

11

G16527

GEAR

4th speed (19 T)

1шт.

12

A38769

SPACER

- gear (.164")

1шт.

12

A38768

SPACER

- gear (.169")

1шт.

12

A38767

SPACER

- gear (.174")

1шт.

12

A38766

SPACER

- gear (.179")

1шт.

12

A38765

SPACER

- gear (.184")

1шт.

12

A38764

SPACER

- gear (.189")

1шт.

12

A38763

SPACER

- gear (.194")

1шт.

12

A38762

SPACER

- gear (.199")

1шт.

12

A38761

SPACER

- gear (.204")

1шт.

12

A38759

SPACER

- gear (.209")

1шт.

12

A38758

SPACER

- gear (.214")

1шт.

12

A38757

SPACER

- gear (.219")

1шт.

12

A38756

SPACER

- gear (.224")

1шт.

12

A38755

SPACER

- gear (.229")

1шт.

12

A38754

SPACER

- gear (.234")

1шт.

12

A38753

SPACER

- gear (.239")

1шт.

12

A38752

SPACER

- gear (.244")

1шт.

13

A29971

RING

- snap, front bearing

1шт.

14

A29977

BEARING CUP

CUP - front bearing

1шт.

15

A30072

ROLLER BEARING,1.19" ID x 0.771"

CONE - front bearing

1шт.

16

G49010

LOCK NUT

- adjusting, countershaft

1шт.
