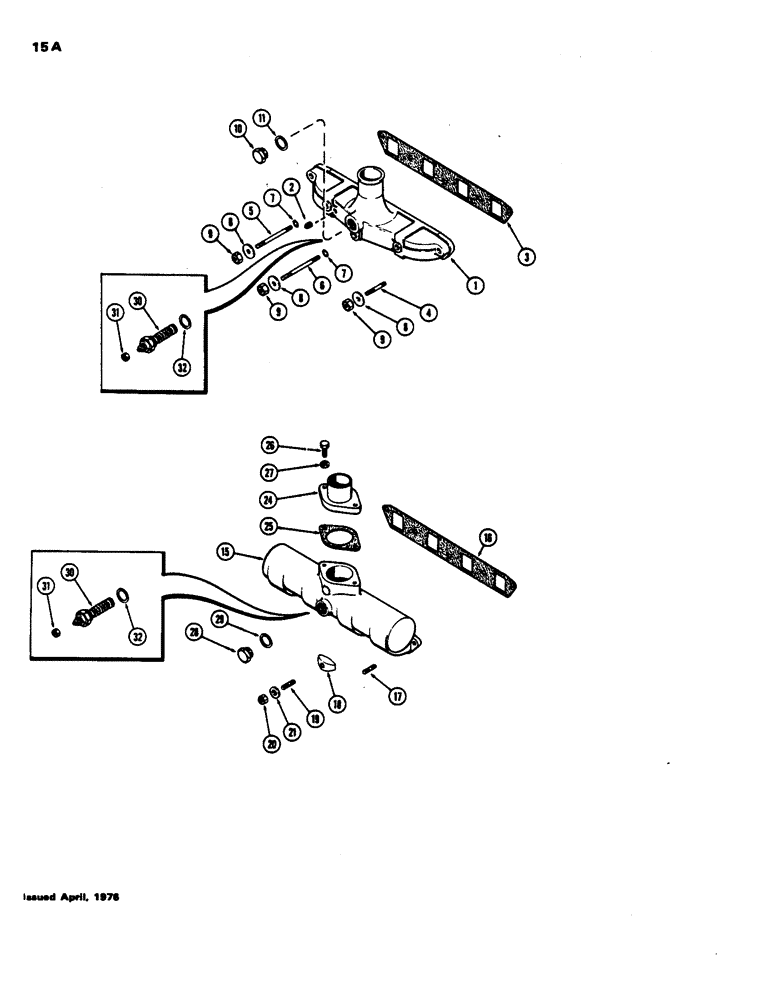

Запчасти Case 480B (015A) - INTAKE MANIFOLD, ALUMINUM, (188) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2740820

1

A51876

MANIFOLD

- intake (aluminum), Includes: Ref. 2

1шт.

2

221-11

PLUG,Sq Hd, 1/8"-27

- 1/8" P.T., sq. hd.

1шт.

3

G46871

GASKET

-, Serial Range: manifold-head

1шт.

4

A140924

STUD

- manifold to head (3/8" N.C. x 2-7/16") (Replaces A35175)

2шт.

5

A51499

STUD

- manifold to head (3/8" N.C. x 4-5/16")

2шт.

6

A51500

STUD

- manifold to head (3/8" N.C. x 5-5/16")

1шт.

7

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O"RING - manifold stud (3/8 x 9/16 x 3/32")

3шт.

8

D41740

WASHER

- manifold stud (25/64 x 1 x 5/64")

5шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

5шт.

10

A20917

PLUG

- manifold (heater hole)

1шт.

11

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

15

A35782

MANIFOLD

- intake (Cast iron) used prior to eng s/n 2740820

1шт.

16

G46871

GASKET

- intake manifold to head, used prior to eng s/n 2740820, (Cast iron)

1шт.

17

A29431

STUD

- manifold to head (3/8' N.C. X 1-3/4"), intake used prior to eng s/n 2740820, (Cast iron)

2шт.

18

A35028

CLAMP

- manifold to head, intake used prior to eng s/n 2740820, (Cast iron)

3шт.

19

A39129

STUD

- manifold clamp (3/8" N.C. x 2-1/16"), intake used prior to eng s/n 2740820, (Cast iron)

3шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., intake manifold used prior to eng s/n 2740820, (Cast iron)

5шт.

21

92-6

LOCK WASHER,3/8"

intake manifold used prior to eng s/n 2740820, (Cast iron) 3/8"

5шт.

24

A37098

FLANGE

- manifold inlet, intake used prior to eng s/n 2740820, (Cast iron)

1шт.

25

D22670

GASKET

- flange mounting, intake manifold used prior to eng s/n 2740820, (Cast iron)

1шт.

26

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Intake manifold used prior to eng S/N 2740820, (Cast iron) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

27

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, , Intake manifold used prior to Eng S/N 2740820, (Cast iron) 3/8"

2шт.

28

A20917

PLUG

- manifold (heater hole), intake used prior to eng s/n 2740820, (Cast iron)

1шт.

29

A20916

MANIFOLD GASKET

GASKET - plug, intake manifold used prior to eng s/n 2740820, (Cast iron)

1шт.

30

A37775

HEATER

ASSY. - manifold

1шт.

31

129-503

NUT,1/4"-20, Brass

Manifold heater 1/4"-20, Brass

1шт.

32

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.
