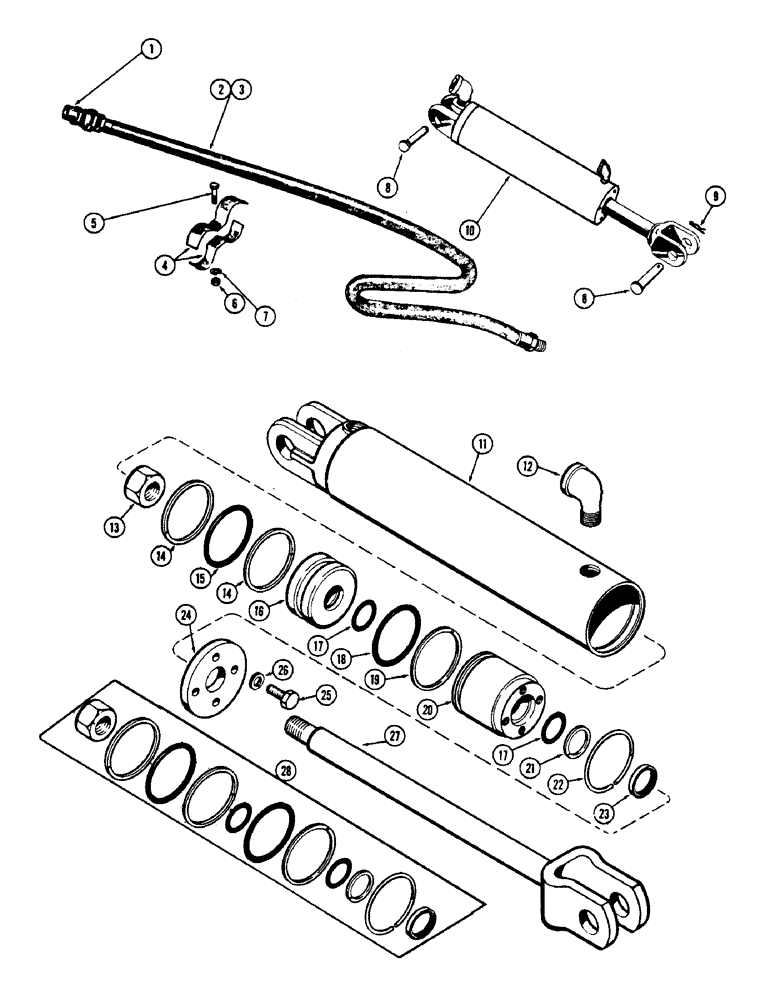

Запчасти Case 430CK (118) - 2-1/2 INCH X 8 INCH REMOTE HYDRAULIC CYLINDER

1

A28541

COUPLING, BREAK AWAY

PLUG - break-away coupling (Repairs Figure 116)

2шт.

2

A20816

HOSE

- tractor to cylinder (106")

1шт.

3

A20817

HOSE

- tractor to cylinder (118")

1шт.

4

A27440

CLAMP

- hose

2шт.

5

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

6

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

7

92-5

LOCK WASHER,5/16"

std. 5/16"

1шт.

8

A27347

PIN

- coupling, cylinder

2шт.

9

A29054

HAIR PIN COTTER

- cotter, coupling pin

2шт.

10

A35900

CYLINDER ASSY. - remote hydraulic, Inlcudes: Ref. 11 - 27

1шт.

11

A35893

CYLINDER

TUBE ASSY.

1шт.

12

221-1561

ELBOW UNION

ELBOW - reducing (1/2" P.T. to 3/8" P.T.)

2шт.

13

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock, piston (3/4" N.F.)

1шт.

14

A35810

RING

- piston

1шт.

15

A30971

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

"O" RING - piston (2-1/2" O.D.)

1шт.

16

A35897

PISTON ASSY.

PISTON

1шт.

17

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - piston rod (1-1/4" O.D.)

2шт.

18

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - inner head (2-1/2" O.D.)

1шт.

19

A35901

RING

- back-up (2-1/2" O.D.)

1шт.

20

A35895

HEAD - inner

1шт.

21

A35899

RING

- back-up (1-1/4" O.D.)

1шт.

22

A35898

RING, SNAP

RING - snap, Serial Range: head-cylinder

1шт.

23

A35902

OIL SEAL

SEAL - oil, piston rod

1шт.

24

A35896

PLATE - end

1шт.

25

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

26

92-5

LOCK WASHER,5/16"

std. 5/16"

4шт.

27

A35894

ROD - piston

1шт.

28

A24671

KIT

- cylinder repair (Includes ref. 13, 14, 15, 17, 18, 19, 21, 22 and 23)

1шт.
