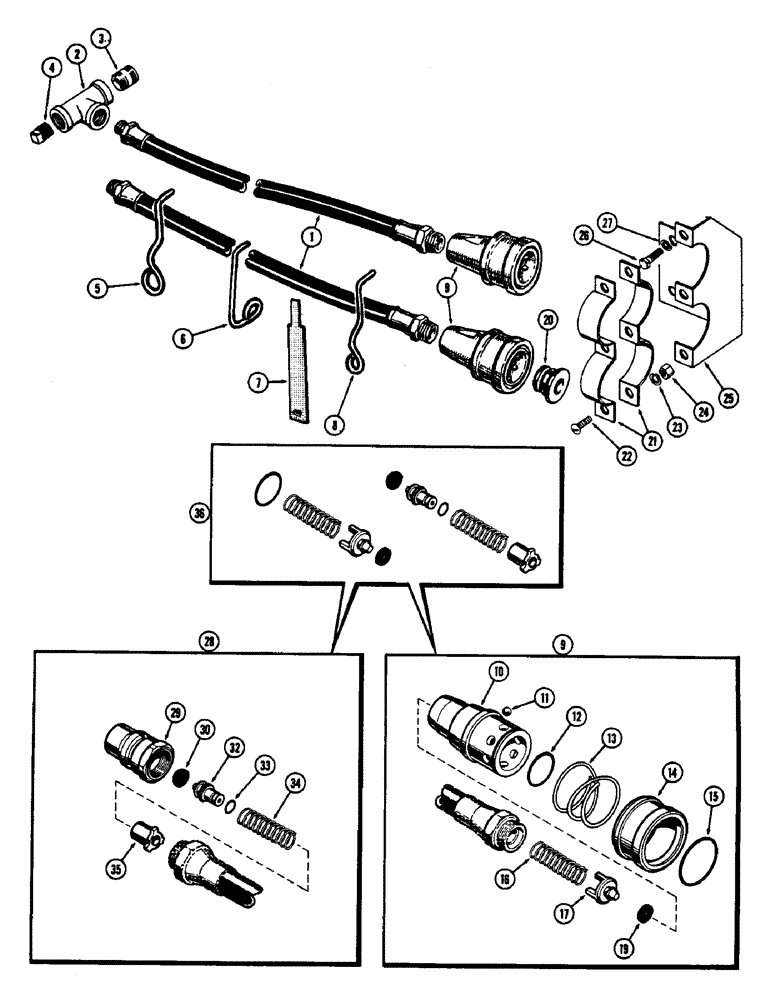

Запчасти Case 430CK (116) - REMOTE HYDRAULIC HOSES AND COUPLINGS

1

A35438

HOSE

-, Serial Range: manifold-coupling

2шт.

2

221-423

TEE,3/8" NPT

- hose to manifold (3/8" P.T.)

2шт.

3

221-160

FITTING

NIPPLE - tee to manifold (3/8" P.T. x 1-3/8")

2шт.

4

221-483

PLUG - 3/8" P.T. socket hd.

2шт.

5

A36402

SUPPORT

- hose to torque tube

1шт.

6

G15434

SUPPORT - hose to transmission case

1шт.

7

A35209

CLAMP

- hose

2шт.

8

G10996

SUPPORT - hose to brake housing

1шт.

9

A28542

COUPLING, QUICK, FEM

COUPLING - female, remote hose, Inlcudes: Ref. 10 - 19

2шт.

10

A27349

BODY

1шт.

11

211-7

BALL,1/4" Dia

- locking 1/4" Dia

8шт.

12

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - body

1шт.

13

A27354

SPRING

- retaining

1шт.

14

A27353

SLEEVE

SLEEVE - ball retaining

1шт.

15

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

SNAP RING - sleeve

1шт.

16

A11324

SPRING

- piston

1шт.

17

A26215

PISTON

1шт.

19

A33964

SEAL

- piston (Replaces A11325 & A27350)

1шт.

20

A22768

PLUG

- dust, female coupling

2шт.

21

A29224

CLAMP - coupling

2шт.

22

5-416

SCREW - 1/4" x 3/4" rd. hd.

3шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

24

25-104

NUT,1/4"-20, G5

3шт.

25

A35439

BRACKET - coupling clamp

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

std. 3/8"

2шт.

28

A28541

COUPLING, BREAK AWAY

COUPLING - male, Inlcudes: Ref. 28 - 35

2шт.

29

A27356

PIPE FITTING

BODY

1шт.

30

A33964

SEAL

- piston (Replaces A11325 & A27350)

1шт.

32

A27508

PISTON

1шт.

33

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - piston

1шт.

34

A27351

SPRING

- piston

1шт.

35

A9631ASY

SPARE PART

- piston

1шт.

36

A40459

KIT

- repair, remote couplings (Incl. ref. 12, 16, 17, 19, 30, 32, 33, 34, & 35) (Replaces A31002)

1шт.
