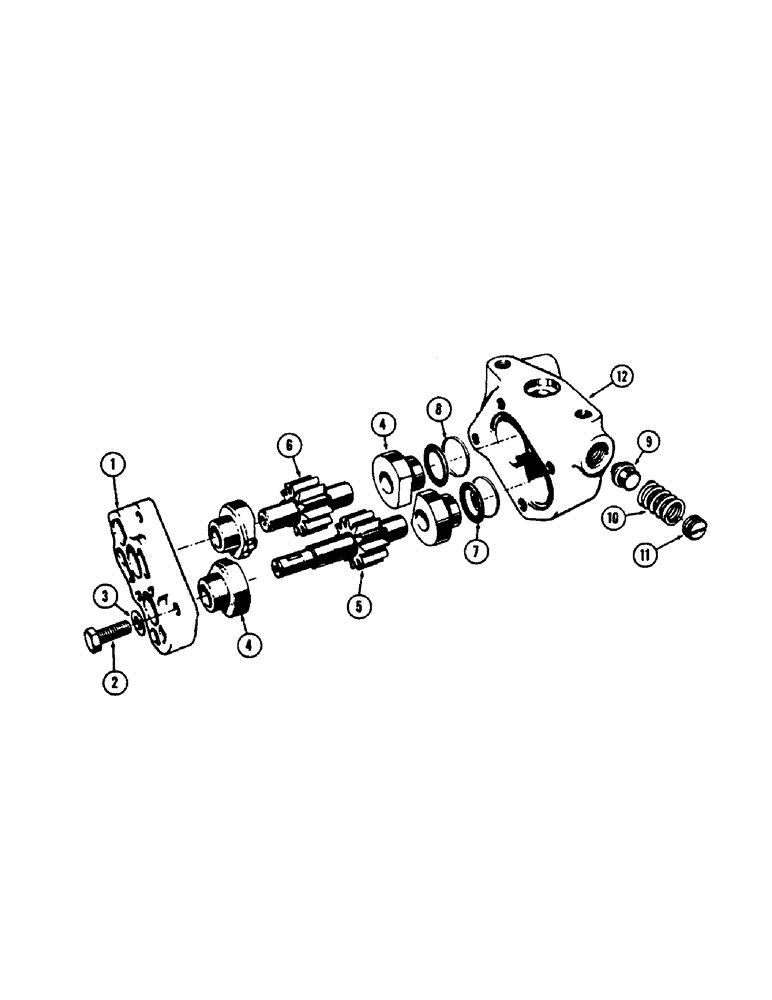

Запчасти Case 430CK (112) - PARTS FOR A35081 PUMP

1

G4523

COVER

1шт.

2

G49095

BOLT - cover

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

G49673

BEARING

- gear

4шт.

5

G46223

GEAR

- drive

1шт.

6

G46049

GEAR - driven

1шт.

7

G46908

O-RING

"O" RING - bearing seal

2шт.

8

G49637

RING

- back-up

2шт.

9

A36058

X

POPPET - relief valve (Includes ball)

1шт.

10

G48516

SPRING

- relief valve

1шт.

11

G49094

PLUG - adjusting, relief valve

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - (Order A35081)

1шт.
