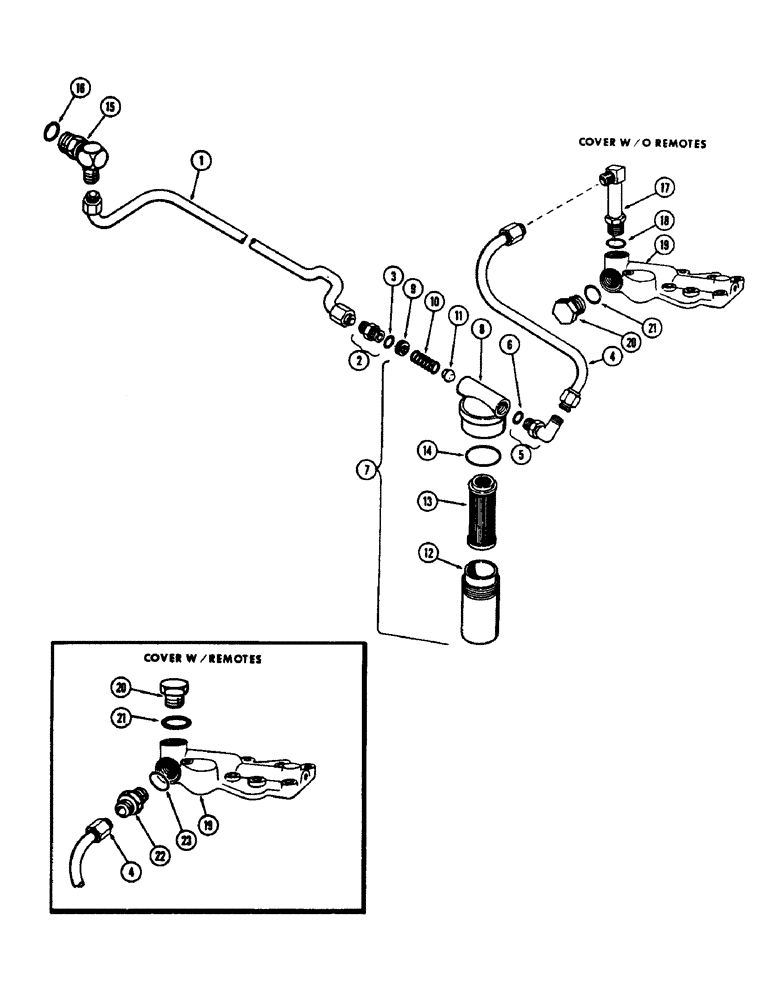

Запчасти Case 430CK (107A) - DRAFT-O-MATIC HIGH PRESSURE FILTER

A36968

FILTER ATT. - hi-pressure, complete (Mchy. item), Inlcudes: Ref. 1 - 14

1шт.

1

A36967

TUBE -, Serial Range: valve-filter

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - str., 5/8" O.D. x 7/8"-14, Inlcudes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - connector, 5/8" tube

1шт.

4

A36965

TUBE

- filter to torque tube

1шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degrees, 5/8" O.D. x 7/8"-14, Inlcudes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.

7

A36963

FILTER ASSY - hi-pressure, Inlcudes: Ref. 8 - 14

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - upper

1шт.

9

A40670

SCREW - adjusting, relief valve

1шт.

10

A40672

SPRING - relief valve

1шт.

11

A40671

VALVE - relief, filter

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - filter element

1шт.

13

A40663

ELEMENT KIT - filter, Inlcudes: Ref. 14

1шт.

14

A40665

O-RING,-227, 90 Duro, 2.109" ID x .139" Thk

"O" RING - tube to housing

1шт.

15

A37067

ELBOW - pressure tube to valve, Inlcudes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.

17

D23143

FITTING

ELBOW - tube to cover (w/o remote valve), Inlcudes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.

19

A35425

COVER ASSY

COVER - valve or housing, hydraulic

1шт.

20

86512512

PLUG,7/8" - 14 ORB

Cover (Pressure tube port), Incl. Ref. 21 Hex Hd, 7/8"-14 ORB

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - tube to cover (w/remote valves), Inlcudes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" tube

1шт.
