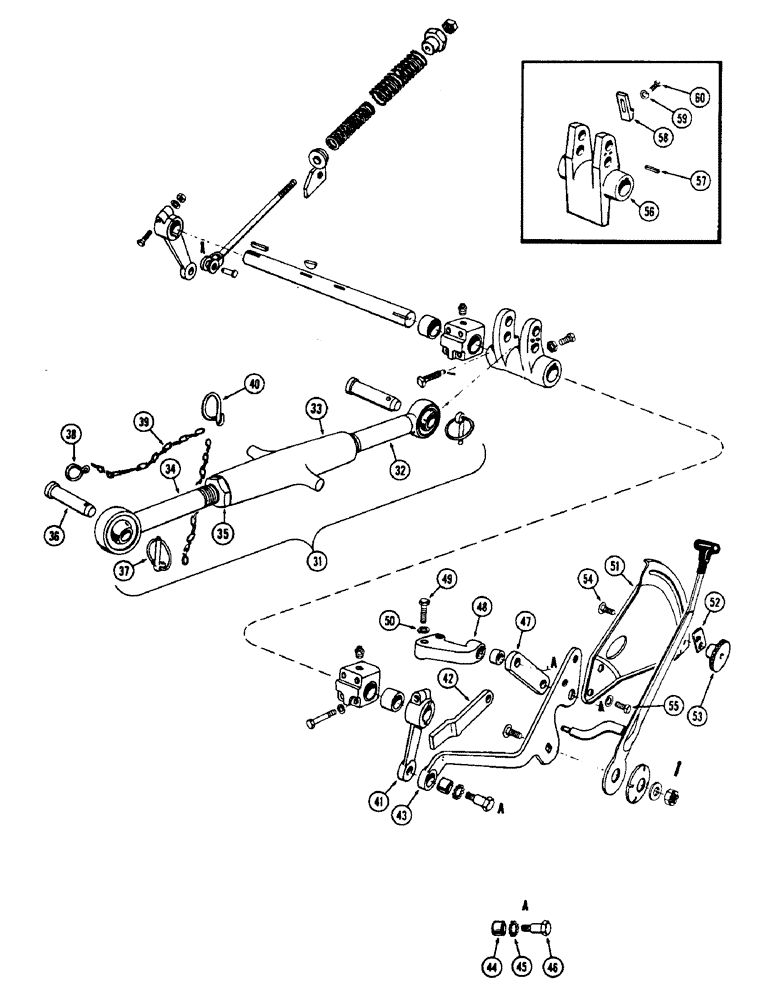

Запчасти Case 430CK (105A) - DRAFT-O-MATIC SENSING LINKAGE

31

A36228

UPPER LINK

TURNBUCKLE ASSY., Inlcudes: Ref. 32 - 35

1шт.

32

NLS

NO LONGER SERVICED

- adjusting, front half

1шт.

33

A36223

TURNBUCKLE

1шт.

34

A36226

LINK

- adjusting, rear half

1шт.

35

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- 1-1/8" N.F. hex. jam

1шт.

36

A29700

PIN

- rear adjusting link

1шт.

37

A30338

PIN

KLIK PIN

1шт.

38

A30706

"S" HOOK -, Serial Range: chain-pin

1шт.

39

A30672

CHAIN - link pin

2шт.

40

A29730

HOOK

"S" HOOK -, Serial Range: chain-link

1шт.

41

A35794

ARM - sensing, R.H.

1шт.

42

A35498

STOP - quadrant arm

1шт.

43

A35499

ARM - lower, quadrant (Incl. ref. 44)

1шт.

44

A35112

BUSHING

- pivot

3шт.

45

G49413

WASHER

- wave, pivot bolt

3шт.

46

G49098

STEP BOLT

BOLT - pivot

3шт.

47

A35502

LINK - lift, Serial Range: arm-quadrant

1шт.

48

A35491

BRACKET

- lift arm (Incl. ref. 44)

1шт.

49

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

50

92-6

LOCK WASHER,3/8"

2шт.

51

A35123

QUADRANT

1шт.

52

G15950

STOP

- quadrant

1шт.

53

G15951

NUT

- quadrant stop

2шт.

54

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

55

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

56

A36992

BRACKET

- mast (w/latch type lock), Inlcudes: Ref. 57

1шт.

57

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

58

A36766

STOP

- lock-out

1шт.

59

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

1шт.

60

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- 1/4 x 7/8" N.C. hex.

1шт.
