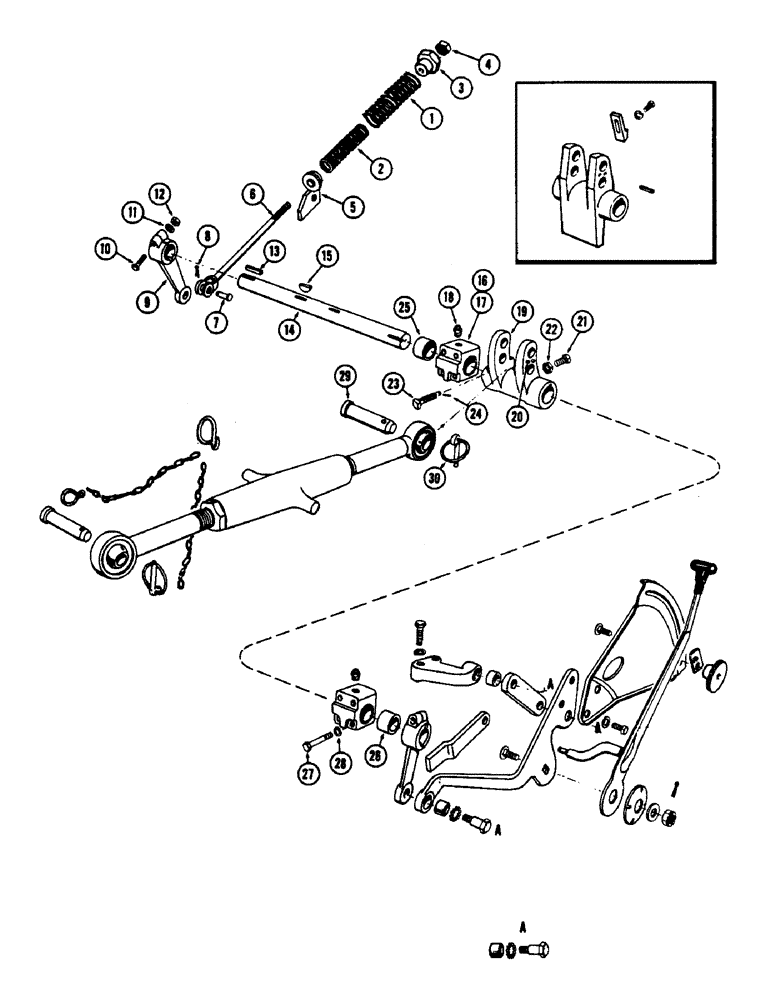

Запчасти Case 430CK (104) - DRAFT-O-MATIC SENSING LINKAGE

1

G48519

SPRING

- outer, sensing

1шт.

2

A35121

VALVE SPRING

SPRING - inner, sensing

1шт.

3

A30829

NUT

- spring, adjusting

1шт.

4

25-148

JAM NUT,Jam, 1/2"-13, G5

- 1/2" NC hex jam

1шт.

5

A38277

SUPPORT

EYE - centering sensing spring (Replaces A35496)

1шт.

6

A35495

YOKE

ROD - adjusting spring

1шт.

7

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

1шт.

8

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

9

A35795

ARM - sensing, L.H.

1шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

13

A36432

KEY - sensing, Serial Range: arm-shaft

2шт.

14

A35493

SHAFT

- pivot

1шт.

15

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Mast to shaft #15, 1/4" x 1", HT

2шт.

16

A36889

BRACKET - pivot shaft, Inlcudes: Ref. 17

2шт.

17

A35117

BUSHING

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

2шт.

19

G4527

BRACKET - mast, adjusting link (See ref. 56, Figure 105A)

1шт.

20

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Stop Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

22

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

1шт.

23

A35119

BOLT (SPREADER)

BOLT - lock-out, mast bracket

1шт.

24

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

25

A35494

SPACER - pivot shaft (1-19/32"), L.H.

1шт.

26

G49638

SPACER - pivot shaft (1-3/16"), R.H.

1шт.

27

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

8шт.

28

92-6

LOCK WASHER,3/8"

8шт.

29

G16735

PIN

- adjusting, Serial Range: link-mast

1шт.

30

A30338

PIN

KLIK PIN

1шт.
