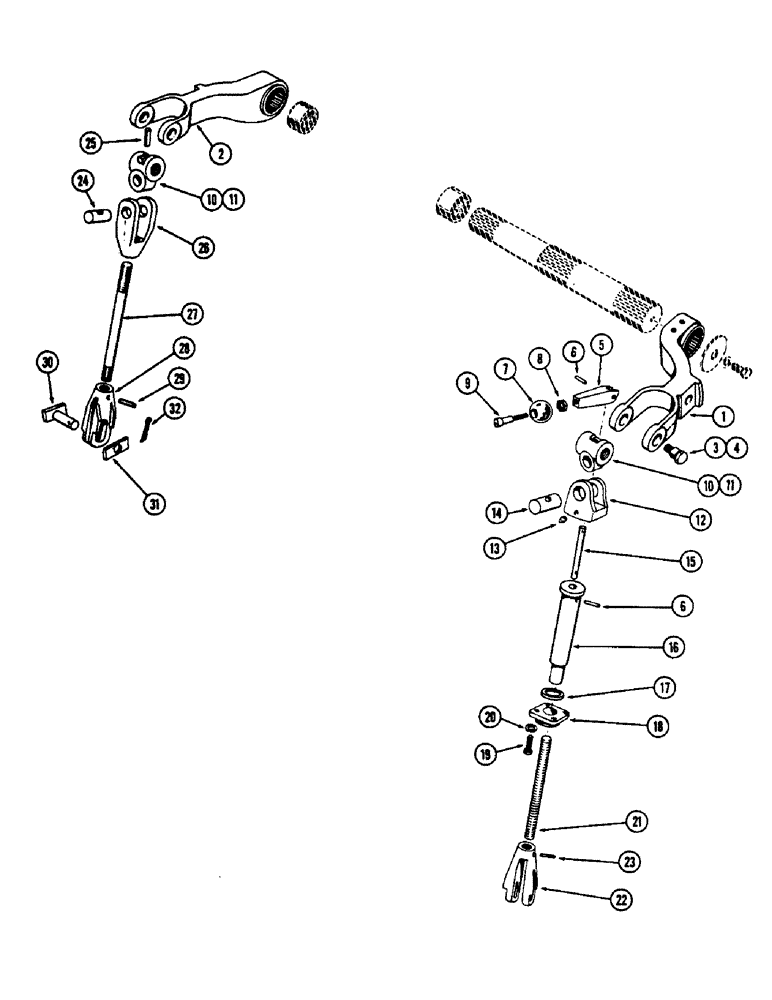

Запчасти Case 430CK (101A) - DRAFT-O-MATIC LIFT LINKS

1

A35454

ARM - lift, rockshaft R.H.

1шт.

2

A35455

ARM - lift, rockshaft L.H.

1шт.

3

A35457

SCREW

BOLT - pivot, lift link to arm (R.H. thread)

2шт.

4

A37093

STEP BOLT,3/4" - 10 x 1 1/2" LH

BOLT - pivot, lift link to arm (L.H. thread)

2шт.

5

A35464

HANDLE

- adjusting screw

1шт.

6

138-2008

PIN,1/4" x 1 1/8", Coiled

2шт.

7

A35465

KNOB

- adjusting handle

1шт.

8

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. (Thin)

1шт.

9

64-632

SCREW

BOLT - 3/8" x 2" N.C. fill hd.

1шт.

10

A35456

X

BLOCK - swivel, (w/R.H. thrd.)

2шт.

11

A37092

BLOCK

- swivel (w/R.H. and L.H. thrd.)

2шт.

12

A35458

HOUSING - pivot, R.H. lift link

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str. (Lincoln #5000)

1шт.

14

A35459

PIN

- pivot, R.H. lift link

1шт.

15

A35463

SHAFT

- adjusting handle

1шт.

16

A35460

TUBE

- R.H. lift link

1шт.

17

NLS

NO LONGER SERVICED

- thrust, adjusting screw

1шт.

18

A35467

PLATE

- thrust, adjusting screw

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

20

92-6

LOCK WASHER,3/8"

std. 3/8"

4шт.

21

A35469

SCREW,3/4" - 10 x 8 13/16"

- R.H. lift link

1шт.

22

A35470

YOKE

- lower, lift link

1шт.

23

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

24

A35475

PIN - pivot, L.H. lift link

1шт.

25

138-201

LOCK PIN,1/2" x 1 1/4", Slotted

PIN - 1/2" x 1 1/4", Slotted

1шт.

26

A35474

YOKE - upper, L.H. lift link

1шт.

27

A35477

ROD - L.H. lift link

1шт.

28

A35470

YOKE

- lower, lift link

1шт.

29

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

30

A35471

PIN AND LOCK - yoke to draft arm (See A36883)

2шт.

30

A36883

PIN

& LOCK - (w/heavy duty draft arm)

2шт.

31

A35472

PLATE

LOCK - float

2шт.

32

132-148

COTTER PIN,1/4" x 1 1/4"

PIN - Split (Cotter), 1/4" x 1 1/4"

2шт.
