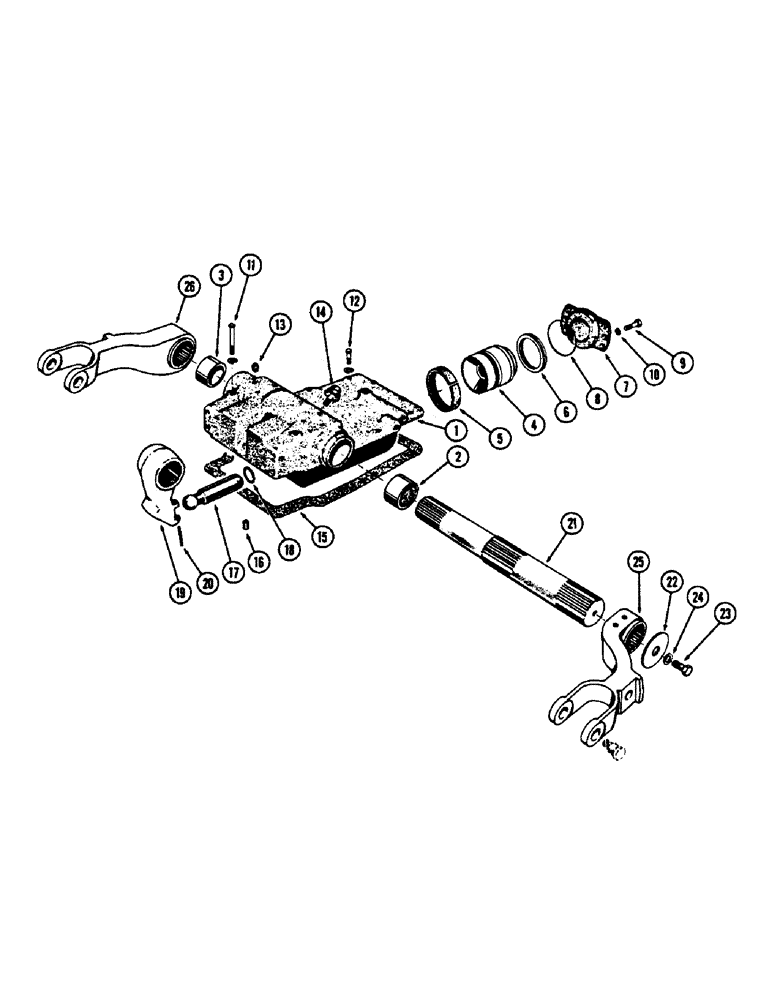

Запчасти Case 430CK (100) - DRAFT-O-MATIC ROCKSHAFT AND HOUSING

1

A36828

HOUSING

ASSY. - rockshaft & piston, Inlcudes: Ref. 2 - 10

1шт.

2

G49662

BUSHING

- R.H., rockshaft

2шт.

3

G49663

BUSHING

- L.H., rockshaft

2шт.

4

A36438

PISTON

ASSY. - rockshaft, Inlcudes: Ref. 5 and 6

1шт.

5

A36441

SEAL ASSY.

RING - wear

1шт.

6

A36442

SEAL

RING - seal ("U" cup)

1шт.

7

G16524

CAP - cylinder

1шт.

8

A36405

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

"O" RING - cylinder cap

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

10

92-8

LOCK WASHER,1/2"

std. 1/2"

6шт.

11

113-237

X

BOLT - 3/8" x 4" N.C. hex. hd. (Gr. 8)

4шт.

12

113-228

X

BOLT - 3/8" x 1-1/4" N.C. hex. hd. (Gr. 8)

6шт.

12

113-236

X

BOLT - 3/8" x 2" N.C. hex. hd. (Gr. 8)

2шт.

92-6

LOCK WASHER,3/8"

std. 3/8"

12шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

2шт.

14

A27173

BREATHER

- oil

1шт.

15

G10941

GASKET

- rockshaft housing

1шт.

16

138-200

LOCK PIN,1/2" x 1", Slotted

PIN - , housing 1/2" x 1", Slotted

1шт.

17

G30527

ROD

- piston to rocker arm (Includes ref. 18)

1шт.

18

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - piston rod

1шт.

19

G10940

ARM - rocker

1шт.

20

138-142

LOCK PIN,1/4" x 2", Slotted

ROLL PIN - rocker arm, 1/4" x 1/2"

2шт.

21

G10460

ROCKSHAFT

1шт.

22

A29186

WASHER

- retainer, lift, Serial Range: arm-rockshaft

2шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

std. 3/8"

2шт.

25

A35454

ARM - lift, R.H.

1шт.

26

A35455

ARM - lift, L.H.

1шт.
