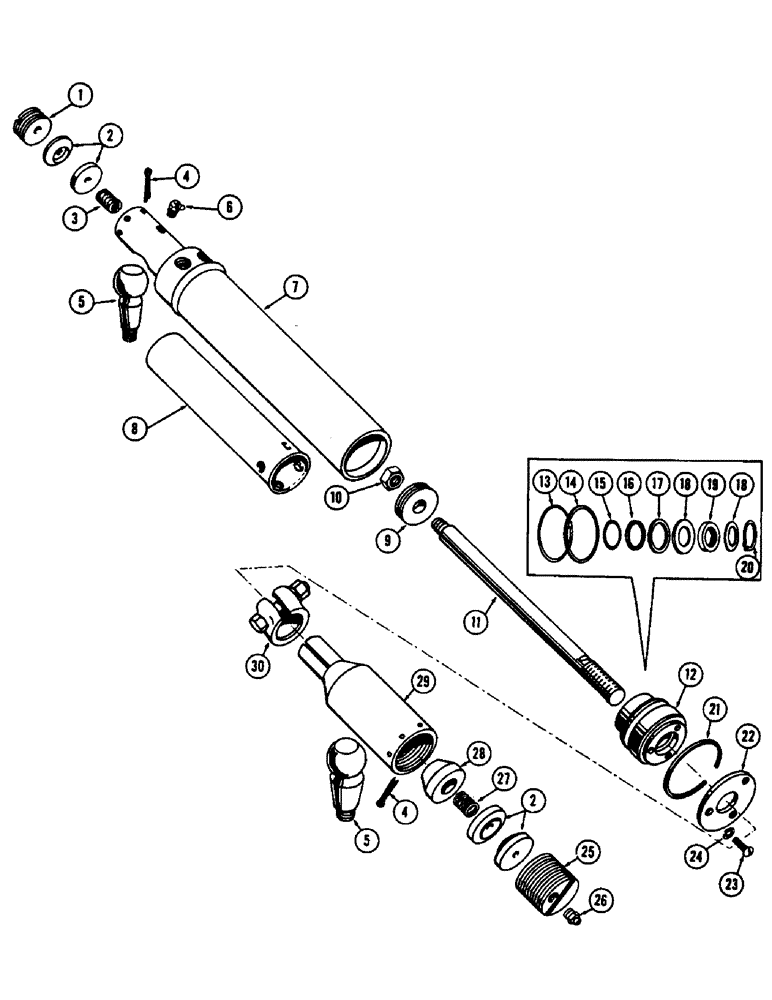

Запчасти Case 430CK (098) - PARTS FOR A36392 CYLINDER

1

A35890

PLUG

- adjusting

1шт.

2

A35889

SEAT

- ball

4шт.

3

A35888

VALVE SPRING

SPRING - ball seat

1шт.

4

132-58

COTTER PIN

PIN - cotter, 1/8" x 2-1/4"

2шт.

5

A35870

STUD

- ball

2шт.

6

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8" 67-1/2 degrees

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD ASSY

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE - piston

1шт.

9

A36395

PISTON

ASSY (Includes seal ring)

1шт.

10

230-4616

LOCK NUT,3/8"-24, GA

NUT - piston to rod (3/8" N.F. Gripco)

1шт.

11

A35873

ROD

- piston

1шт.

12

A36443

GLAND

ASSY, Inlcudes: Ref. 13 - 20

1шт.

13

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - (See A36396)

1шт.

14

A35884

WASHER

RING - back-up (See A36396)

1шт.

15

A11060

O-RING

"O" RING - inner (See A36396)

1шт.

16

A35879

RING

- back-up, inner (See A36396)

1шт.

17

F9886

WASHER

RING - retaining (See A36396)

1шт.

18

F9887

WASHER

RING - retaining, oil seal (See A36396)

2шт.

19

A11061

SEAL

OIL SEAL - gland (See A36396)

1шт.

20

A35882

X

SNAP RING - gland seal (See A36396)

1шт.

A36396

SEAL KIT

KIT - gland seal (Incl. ref. 13 thru 20)

1шт.

21

A35885

RING

SNAP RING -, Serial Range: gland-cylinder

1шт.

22

A35887

PLATE ASSY.

PLATE - end, cylinder

1шт.

23

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" pan hd. slotted

3шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

25

A35892

PLUG

- adjusting, front

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

27

F19615

SPRING

- ball seat, front

1шт.

28

A35891

SEAT

- spring

1шт.

29

A35869

SOCKET

- ball stud

1шт.

30

A27080

CLAMP

- socket

1шт.
