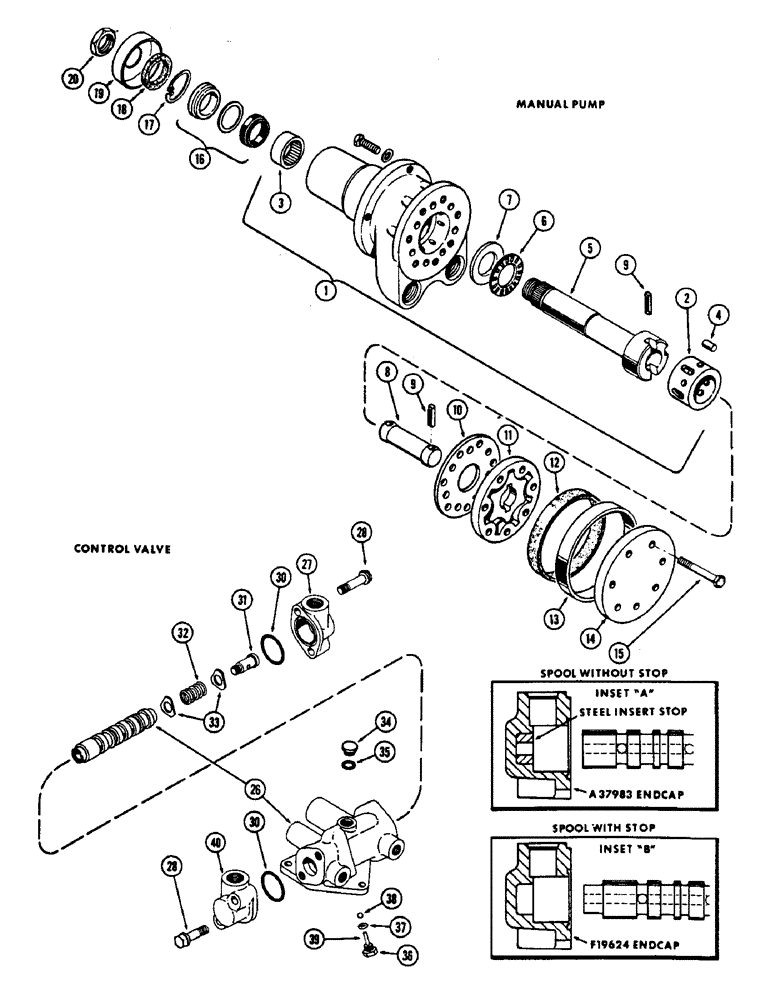

Запчасти Case 430CK (094) - PARTS FOR A35579 MANUAL PUMP

1

F82945

BODY

Inlcudes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

COMMUTATOR (Order F82945)

1шт.

3

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle, coupling shaft

1шт.

4

F19631

PIN

- commutator

1шт.

5

A40735

SHAFT

- coupling

1шт.

6

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust

1шт.

7

F19634

BEARING WASHER

RACE - thrust brg.

1шт.

8

F19635

LINK

- rotor drive

1шт.

9

F19636

PIN

- link

2шт.

10

F19637

SPACER

PLATE - spacer

1шт.

11

A35786

STATOR

- rotor set

1шт.

12

84286702

RUBBER SEAL

- rotor

1шт.

13

A35787

RETAINER

- seal

1шт.

14

F19641

COVER - end, pump

1шт.

15

F19642

SCREW - end cover

7шт.

16

A40624

SEAL

KIT - (Incl. pkg., nylon ring & vack-up ring) (Replaces A36390)

1шт.

17

A21145

SNAP RING,1.25, Int, #125

RING - Snap, 1.25", Int, #125

1шт.

18

F19645

BUSHING

- felt

1шт.

19

F19644

SEAL

- water

1шт.

20

F19646

LOCK NUT,13/16"-20, Thin

NUT - coupling shaft

1шт.

A37980

VALVE

ASSY. - complete, parts for A37980 valve, Inlcudes: Ref. 26 - 40

1шт.

26

NSS

NOT SOLD SEPARAT

BODY & SPOOL (Order A37980), parts for A37980 valve

1шт.

27

F19624

CAP

- end (See ref. 40), parts for A37980 valve

1шт.

28

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - end cap (Includes washer), parts for A37980 valve

4шт.

30

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - end cap, parts for A37980 valve

2шт.

31

F19623

SCREW,3/8" - 24 x 15/16"

- centering, parts for A37980 valve

1шт.

32

F19622

VALVE SPRING

SPRING - centering, parts for A37980 valve

1шт.

33

F19619

WASHER

- centering, parts for A37980 valve

2шт.

34

F83122

PLUG

- top opening, parts for A37980 valve, Inlcudes: Ref. 35

1шт.

35

F19628

O-RING

"O" RING - relief screw, parts for A37980 valve

1шт.

36

F82943

VALVE

PLUG - relief, parts for A37980 valve, Inlcudes: Ref. 37 - 39

1шт.

37

F19630

O-RING

"O" RING - opening plug, parts for A37980 valve

1шт.

38

211-7

BALL,1/4" Dia

- relief valve, parts for A37980 valve 1/4" Dia

1шт.

39

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Parts for A37980 valve 1/8" x 15/16", Slotted

1шт.

40

F19624

CAP

- end (w/o stop) See note, parts for A37980 valve

1шт.

40

A37983

CAP

- end (w/stop) See note, parts for A37980 valve

1шт.
