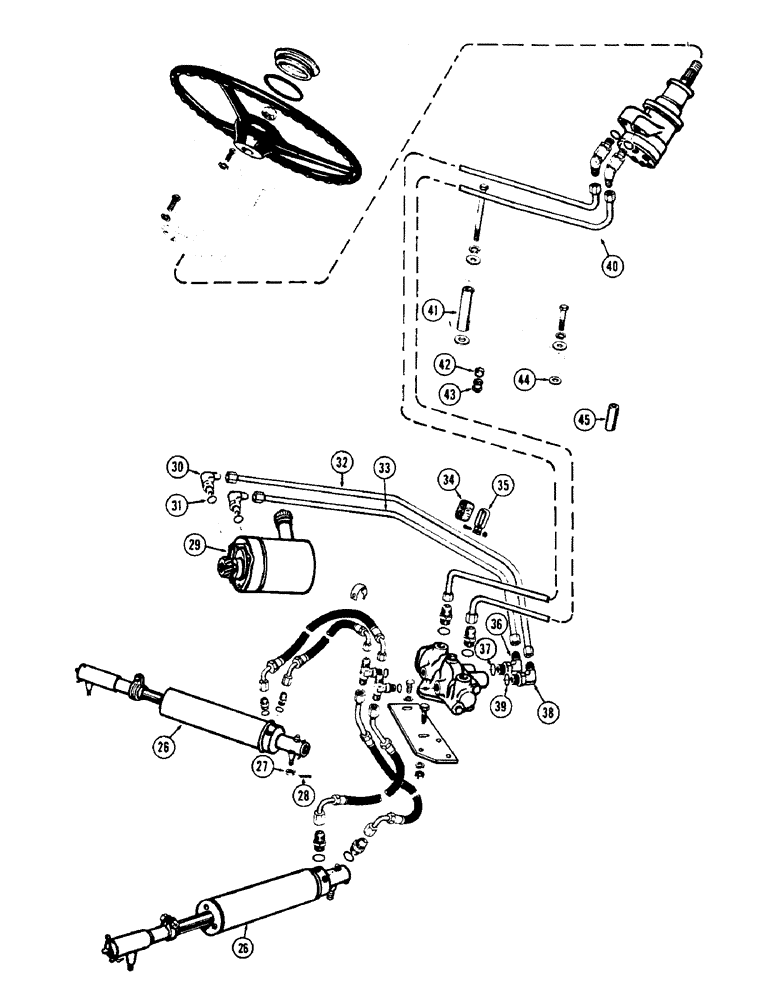

Запчасти Case 430CK (093A) - HYDROSTATIC POWER STEERING

26

A36392

CYLINDER ASSY. - (See Figure 98)

2шт.

27

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex. sltd.

4шт.

28

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

29

A36559

PUMP

- power steering (See Figure 96)

1шт.

30

A37080

ELBOW

- tube to pump, Inlcudes: Ref. 31

2шт.

32

A35731

TUBE - return, valve to pump (Used w/gas)

1шт.

32

A35733

TUBE

- return, valve to pump (Used w/diesel)

1шт.

33

A35730

TUBE ASSY.

TUBE - pressure, pump to valve (Used w/gas)

1шт.

33

A35732

TUBE

- pressure, pump to valve (Used w/diesel)

1шт.

34

G46835

GROMMET

- rubber, tube clamp

1шт.

35

G46194

CLAMP

- tube

1шт.

174-100

SCREW,Sl Rnd Hd, #10 - 32 x 3/4"

- #10-32 x 3/4" rd. hd. mach.

1шт.

129-37

NUT,#10-32

1шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

36

A35613

ELBOW

- pressure tube to valve, Inlcudes: Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8 x 3/4 x 3/32"

1шт.

38

A37080

ELBOW

- return tube to valve, Inlcudes: Ref. 39

1шт.

40

A36178

SUPPORT - steering

1шт.

41

G49624

SPACER

SUPPORT - pipe, 4-7/8" long

2шт.

15-6104

X

BOLT - 3/8 x 6-1/2" N.C. hex.

2шт.

42

G11270

SPACER

PIPE - rubber bushing, 1/4" long (Used w/diesel)

4шт.

43

G45343

COMPOSITE RING

BUSHING - rubber, support (Used w/diesel)

4шт.

44

A35627

BUSHING

- steel, support (Used w/gas)

4шт.

45

G49622

SPACER,5/8" Tube x 1 7/16"

PIPE - support, rear (1-7/8" long) (Used w/diesel)

2шт.

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

2шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

2шт.

39

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.
