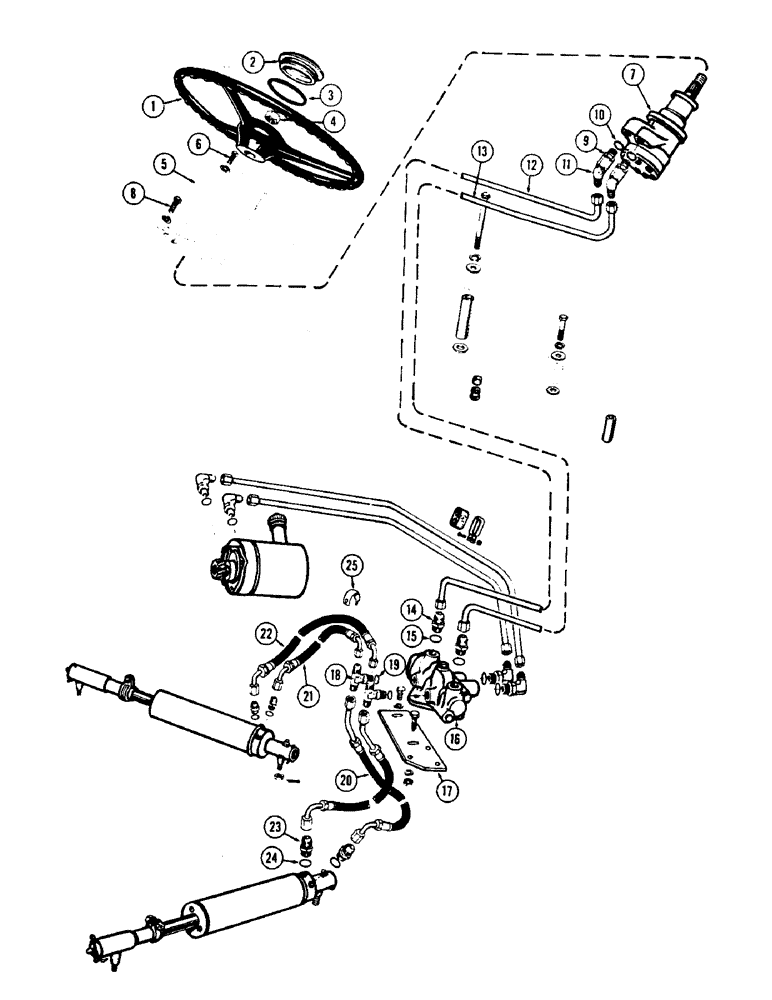

Запчасти Case 430CK (092) - HYDROSTATIC POWER STEERING

1

A35602

STEERING WHEEL

WHEEL - steering

1шт.

2

A35603

CAP

MEDALLION - steering wheel

1шт.

3

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - medallion

1шт.

4

F19646

LOCK NUT,13/16"-20, Thin

NUT - wheel to pump shaft

1шт.

5

A38019

COIL SPRING

COLUMN - steering (Replaces A35580)

1шт.

6

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/2" N.C. hex.

3шт.

92-5

LOCK WASHER,5/16"

3шт.

7

A35579

PUMP

- manual (See Figure 94)

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - elbow to pump, Inlcudes: Ref 10

2шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

11

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- tube to connector

2шт.

12

A35600

TUBE

- manual pump to valve, R.H.

1шт.

13

A35601

TUBE

- manual pump to valve, L.H.

1шт.

14

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - tube to valve, Inlcudes: Ref 15

2шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

16

A37980

VALVE

- control (See Figure 94) (Replaces F82739)

1шт.

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

17

A35581

SPLIT PIN/SAFETY PIN

PLATE - valve mounting

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

18

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- hose to valve, Inlcudes: Ref. 19

2шт.

19

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

20

A35615

HOSE

- valve to cylinder, L.H.

2шт.

21

A35616

HOSE

- valve port to cyl. outer port, R.H.

1шт.

22

A35614

HOSE

- valve port to cyl. inner port, R.H.

1шт.

23

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - hose to cylinder, Incl. Ref. 24

4шт.

24

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

25

A35209

CLAMP

- hose

2шт.
