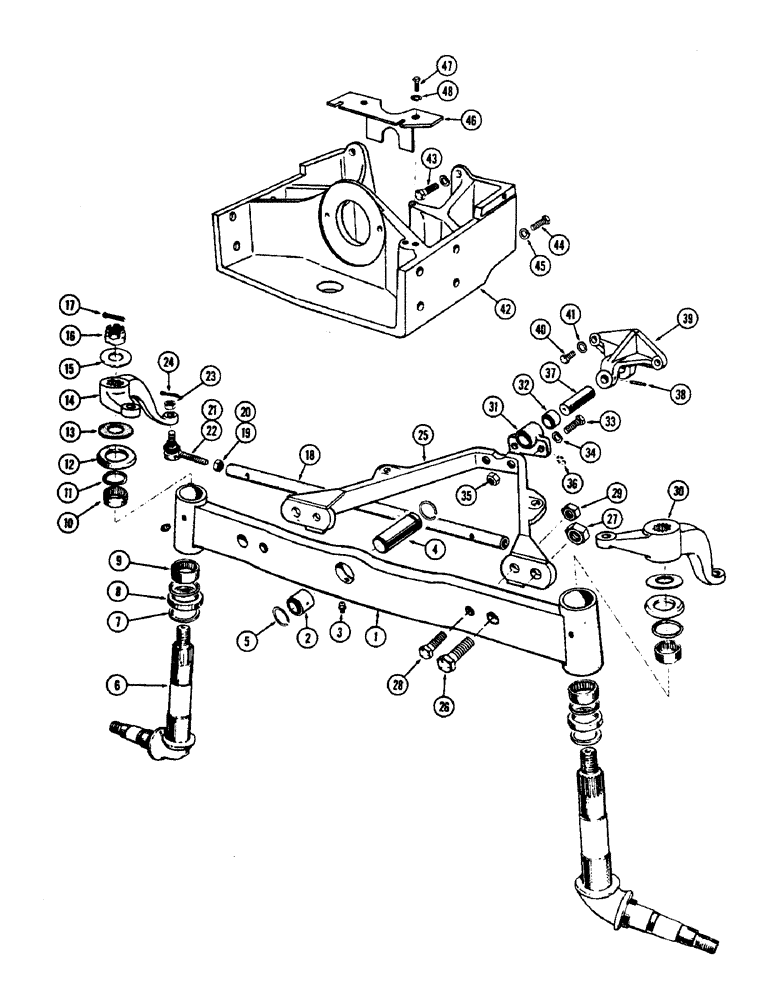

Запчасти Case 430CK (090) - FRONT AXLE AND SUPPORT

1

A36280

X

AXLE - front, Inlcudes: Ref. 2

1шт.

2

A36282

BUSHING,44.3mm ID x 56.21mm OD x 50.8mm L

- pivot

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" strg.

3шт.

4

A35975

X

PIN - axle pivot

1шт.

5

A27085

RING

- retainer, pivot pin

2шт.

6

A36535

SPINDLE - wheel, R.H. & L.H.

2шт.

7

A36565

WASHER,51.2mm ID x 66.67mm OD x 6.35mm Thk

- thrust, spindle

4шт.

8

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust, spindle

2шт.

9

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - lower, spindle

2шт.

10

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - upper, spindle

2шт.

11

A27754

OIL SEAL

OIL SEAL - upper, spindle

2шт.

12

A35344

SHIELD

- dust, spindle bearing

2шт.

13

A35345

SHIM,.0359" Thk

Wheel spindle .0359" Thk

1шт.

13

A35346

SHIM,.0598" Thk

Wheel spindle .0598" Thk

1шт.

13

A35347

SHIM,.1345" Thk

Wheel spindle .1345" Thk

1шт.

14

A35564

X

ARM - steering, R.H. (Use A37926 when depleted)

1шт.

14

A37926

ARM

- steering, R.H. (Replaces A37102)

1шт.

15

A35047

WASHER

- spindle nut

2шт.

16

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - slotted, 1-1/8" N.F. hex. (Thick)

2шт.

17

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

18

A35567

TUBE

- tie rod

1шт.

19

G49084

JAM NUT

- lock, R.H. tie rod end

1шт.

20

G49085

JAM NUT

- lock, L.H. tie rod end

1шт.

21

G45368

END ASSY.

END - R.H., tie rod

1шт.

22

G45369

END ASSY.

END - L.H., tie rod

1шт.

23

25-139

SLOTTED NUT,9/16"-18, G5

NUT - tie rod end (9/16" N.F. hex. slotted)

2шт.

24

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

25

A36283

ROD

RADIUS ROD

1шт.

26

13-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

27

25-1016

NUT,1"-8, G5

2шт.

28

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

29

25-1012

NUT,3/4"-10, G5

2шт.

30

A37927

ARM

- steering, L.H. (Replaces A37103)

1шт.

30

A35565

GEAR

ARM - steering, L.H. (Use A37927 when depleted)

1шт.

31

A36574

X

PIVOT - radius rod (Replaces A35571), Inlcudes: Ref. 32

1шт.

32

A29944

BUSHING

- pivot

1шт.

33

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- 5/8" x 2-1/2" N.C. hex. hd.

2шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Standard 5/8"

2шт.

35

25-1010

NUT,5/8"-11, G5

2шт.

36

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

37

A29725

PIN

- rear pivot

1шт.

38

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.

39

A35599

BRACKET

SUPPORT - rear pivot

1шт.

40

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Standard 5/8"

2шт.

42

A36895

SUPPORT

- frt. axle & radiator (Replaces A35560)

1шт.

43

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

44

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- 5/8" x 3" N.F. hex. hd.

2шт.

45

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Standard 5/8"

4шт.

46

A35574

BRACKET

- radiator mounting

1шт.

47

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

48

92-8

LOCK WASHER,1/2"

std. 1/2"

2шт.
