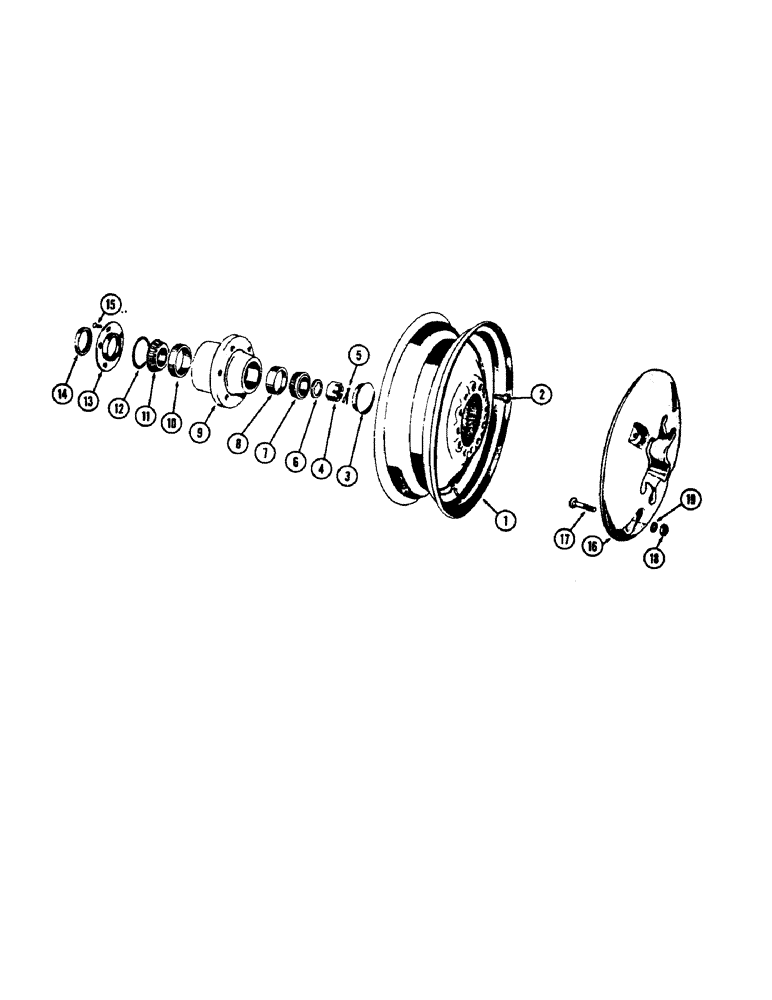

Запчасти Case 430CK (088) - FRONT WHEEL AND HUB

1

A36017

WHEEL

(7 50 x 16 tire)

2шт.

2

A30064

BOLT

-, Serial Range: wheel-hub

12шт.

3

A29425

CAP

- wheel hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - 1-1/8" N.F. hex. slotted (Thick)

2шт.

5

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

6

A26789

BEARING WASHER

WASHER - spindle nut

2шт.

7

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing

2шт.

8

A27631

CUP

- outer bearing

2шт.

9

G14042

X

HUB - (Includes ref. 8 and 10)

2шт.

10

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing

2шт.

11

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing (Timken #25580)

2шт.

12

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - wheel hub

2шт.

13

A27140

RETAINER

- oil seal

2шт.

14

A27139

SEAL

OIL SEAL - wheel hub

2шт.

15

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- machine, 1/4" x 5/8" flat hd.

10шт.

16

G12050

WEIGHT - wheel set of 2 (Mach. item), Inlcudes: Ref. 17 - 19

1шт.

17

11-848

BOLT - 1/2" x 3" rd. hd. sq. nk.

4шт.

18

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

19

92-8

LOCK WASHER,1/2"

std. 1/2"

4шт.
