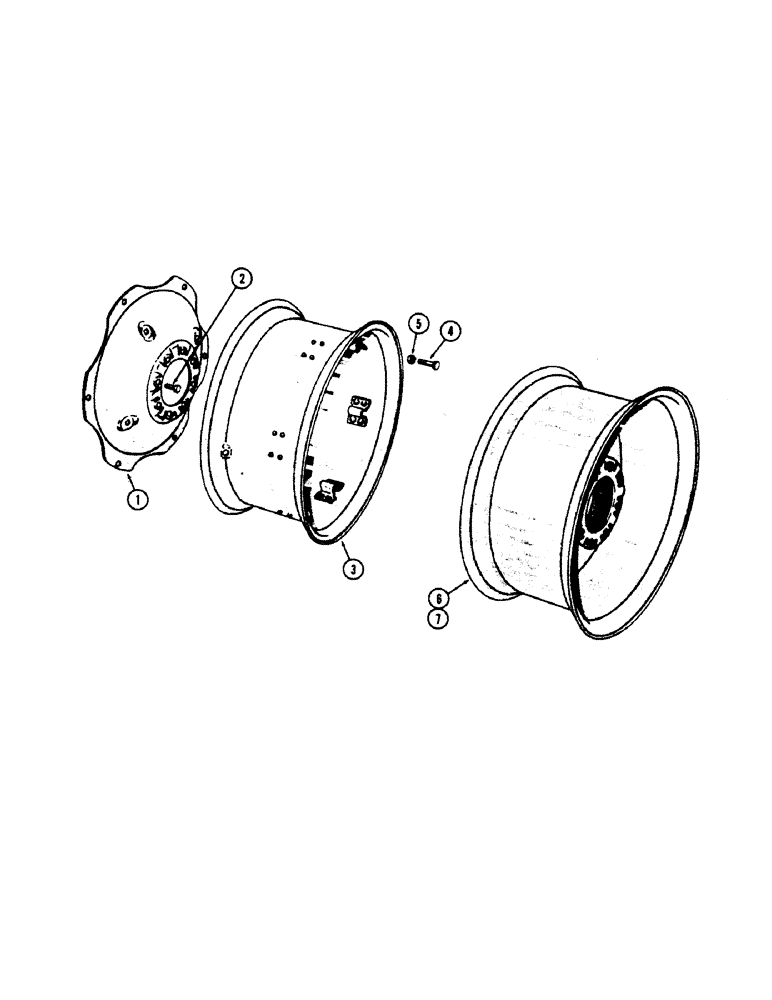

Запчасти Case 430CK (088[1]) - REAR WHEEL

1

G46240

DISC

- wheel (24" rim)

2шт.

1

G12001

DISC

- wheel (28" rim)

2шт.

2

B18264

WHEEL BOLT

BOLT -, Serial Range: wheel-hub

16шт.

3

G45204

RIM

- wheel (W12-24 for 13 x 24 tire)

2шт.

3

G12002

RIM

- wheel (W10-28 for 12 x 28 tire)

2шт.

4

G10701

BOLT

-, Serial Range: rim-disc

12шт.

5

129-127

NUT,5/8"-18, G5

12шт.

6

A35578

WHEEL - integral (W12-24 for 14.9 x 24 tire)

2шт.

7

A35906

WHEEL

- integral, offset disc. (14.9 x 24 tire) Must not be used w/back hoe

2шт.
