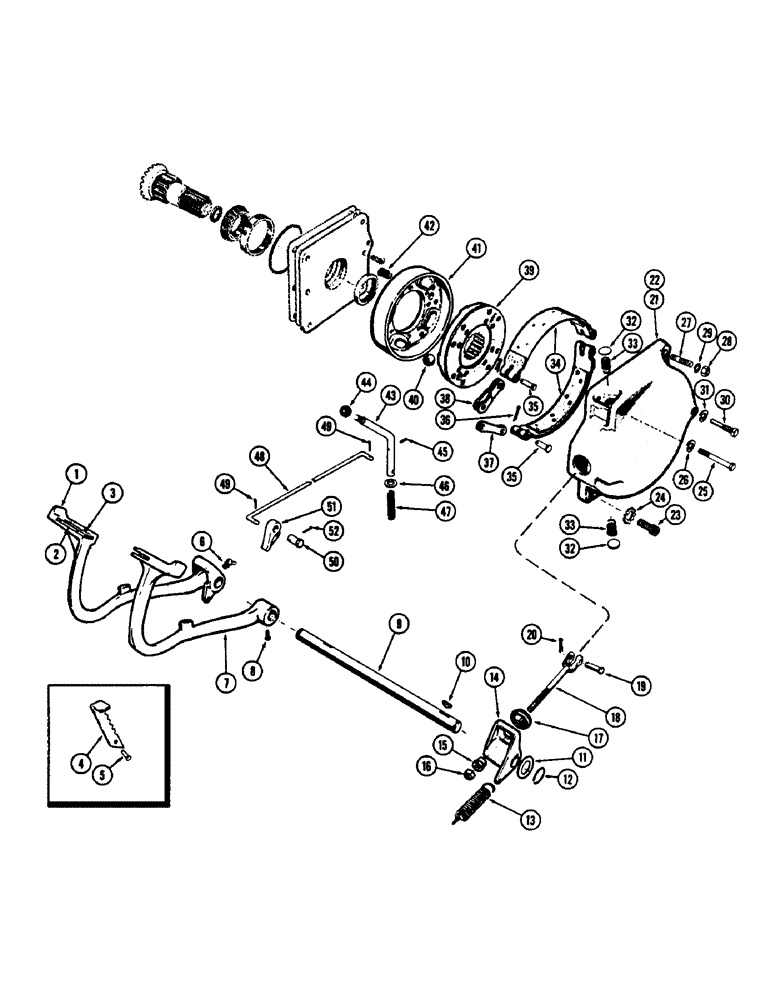

Запчасти Case 430CK (086) - BRAKE SYSTEM

1

G13012

PEDAL

- R.H. brake, Inlcudes: Ref. 2 and 3

1шт.

2

A29086

INTERLOCK - brake pedal

1шт.

3

46-420

RIVET - 1/4" x 1-1/4" ctsk. hd.

1шт.

4

A29401

CATCH

- R.H. brake pedal (w/o brake lock)

1шт.

5

45-418

RIVET,Button, 6.35mm OD x 28.57mm L

- 1/4" x 1-1/8" rd. hd.

1шт.

6

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8" 67-1/2 degrees

1шт.

7

G13013

PEDAL

- L.H. brake

1шт.

8

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - set, 3/8" x 5/8" N.C. sq. hd. cup pt.

1шт.

9

G10708

SHAFT

- cross, brake pedal

1шт.

10

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - brake pedal and lever

2шт.

11

B18145

WASHER

- cross shaft

2шт.

12

F62093

RING, SNAP

SNAP RING - cross shaft

2шт.

13

G10848

SPRING

- return

2шт.

14

G1057

LEVER

- L.H. brake

1шт.

15

G10709

NUT

- adjusting, brake rod

2шт.

16

25-157

JAM NUT,Jam, 7/16"-20, G5

- jam, 7/16" N.F. hex.

2шт.

17

G10943

DUST CAP

CAP - dust, brake rod

2шт.

18

G46351

ROD

- brake

2шт.

19

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke, brake rod

2шт.

20

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

1шт.

21

G1394

COVER

- R.H. brake

1шт.

22

G1395

COVER

- L.H. brake

1шт.

23

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

SCREW - brake cover, 1/2" x 1-3/4" N.C. sckt. hd.

2шт.

24

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

25

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

26

92-8

LOCK WASHER,1/2"

std. 1/2"

2шт.

27

A29336

STUD

- brake cover, 1/2" x 2-1/2"

4шт.

28

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

29

92-8

LOCK WASHER,1/2"

std. 1/2"

4шт.

30

G15801

BOLT

- anchor, actuating band

2шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Standard 5/8"

2шт.

32

A29968

X

PLUG - brake cover, 13/16" dia.

4шт.

33

G48507

SPRING

- return, brake band

4шт.

34

G45468

BRAKE LINING

BAND - actuating (Set of 2) includes lining, See note

2шт.

35

G49082

PIN,14.22mm OD x 40.03mm L

- actuating link

4шт.

36

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

4шт.

37

G46345

LINK

- straight, band actuating

4шт.

38

G46344

LINK

- offset, band actuating

2шт.

39

G45362

DISC

- broke (Incl. lining) See note

2шт.

40

211-21

BALL

- actuating drum, 1/2" dia.

8шт.

41

G45361

DRUM

- actuating (Incl. lining) See note

2шт.

42

G48508

SPRING

- disc return

4шт.

43

G10765

LEVER

- brake release

1шт.

44

G10766

KNOB

- hand lever

1шт.

45

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

46

95-8

WASHER,1/2"

plain 1/2"

1шт.

47

G10707

VALVE SPRING

SPRING - hand lever

1шт.

48

G10764

DRAG LINK

LINK - lever to pawl (See A36606)

1шт.

48

A36606

LINK - lever to pawl (w/diff. lock)

1шт.

49

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

50

A30119

AXLE PIN

PIN - pedal lock pawl

1шт.

51

G16604

BRAKE LINE

PAWL - lock, brake pedal

1шт.

52

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

G45391

SET

KIT - lining (Incl. lining for ref. 34, 39 and 41)

2шт.
