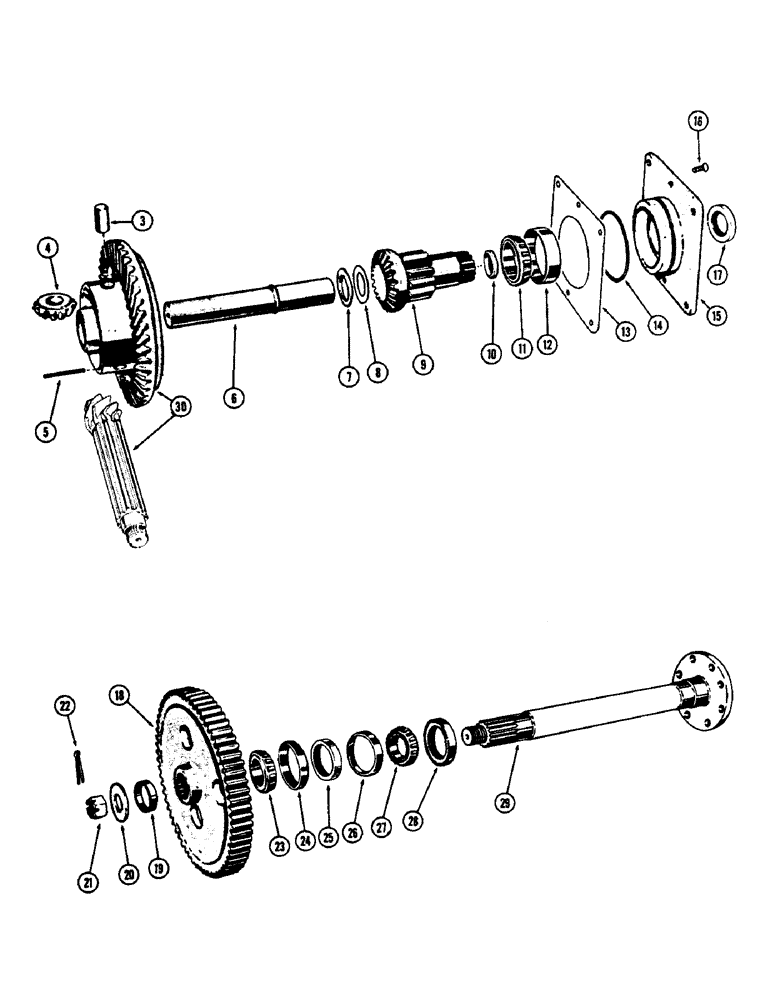

Запчасти Case 430CK (084) - DIFFERENTIAL AND FINAL DRIVE

3

A37097

PIN

- pinion gear (Replaces A29318)

3шт.

4

G15483

GEAR

- pinion

3шт.

5

138-103

LOCK PIN,3/16" x 1 7/8", Slotted

PIN, LOCK, 3/16" x 1 7/8", Slotted

3шт.

6

A36911

X

SHAFT - cross

1шт.

7

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust (.089") (Replaces A30539)

1шт.

7

A39007

WASHER

- thrust (.094") (Replaces A30498)

1шт.

7

A39008

WASHER

- thrust (.099") (Replaces A30533)

1шт.

7

A39009

WASHER

- thrust (.104") (Replaces A30045)

1шт.

7

A39010

WASHER

- thrust (.109") (Replaces A30543)

1шт.

7

A39011

WASHER

- thrust (.119") (Replaces A30051)

1шт.

8

A29388

WASHER

SHIM - thrust washer (.010")

2шт.

9

G30596

GEAR

- side, Inlcudes: Ref. 10

2шт.

10

A29902

PLUG

- side gear

2шт.

11

A30114

CONE

- bearing, side gear

2шт.

12

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear

2шт.

13

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

13

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

14

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier

2шт.

15

G30490

CARRIER

- bearing, R.H. side gear (Incl. ref. 12)

1шт.

15

G30491

CARRIER

- bearing, L.H. side gear (Incl. ref. 12)

1шт.

16

171-202

SCREW,Phil Flat Hd, Spin Lock, 3/8" - 16 x 3/4"

- 3/8 x 1-7/8" flat hd. sim-lock

2шт.

17

G10689

SEAL

OIL SEAL - bearing carrier

2шт.

18

G30353

GEAR

- final drive, 66 teeth

2шт.

19

G49616

SPACER

- drive gear

2шт.

20

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

- take-up, axle shaft

2шт.

21

A30075

WHEEL NUT

- 1-1/2" N.F. hex. sltd.

2шт.

22

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

23

G10414

ROLLER BEARING

CONE - inner bearing, rear axle

2шт.

24

G10415

BEARING CUP

CUP - inner bearing, rear axle

2шт.

25

G13801

OIL SEAL

OIL SEAL - inner, axle shaft

2шт.

26

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP - outer bearing, rear axle

2шт.

27

G15207

ROLLER BEARING

CONE - outer bearing, rear axle

2шт.

28

G13822

SEAL,73.66mm ID x 110.13mm OD x 11mm Thk

OIL SEAL - outer, rear axle

2шт.

29

G17178

SHAFT - rear axle

2шт.

30

A37195

CENTER WHEEL - ring gear & pinion (Matched set)

1шт.
