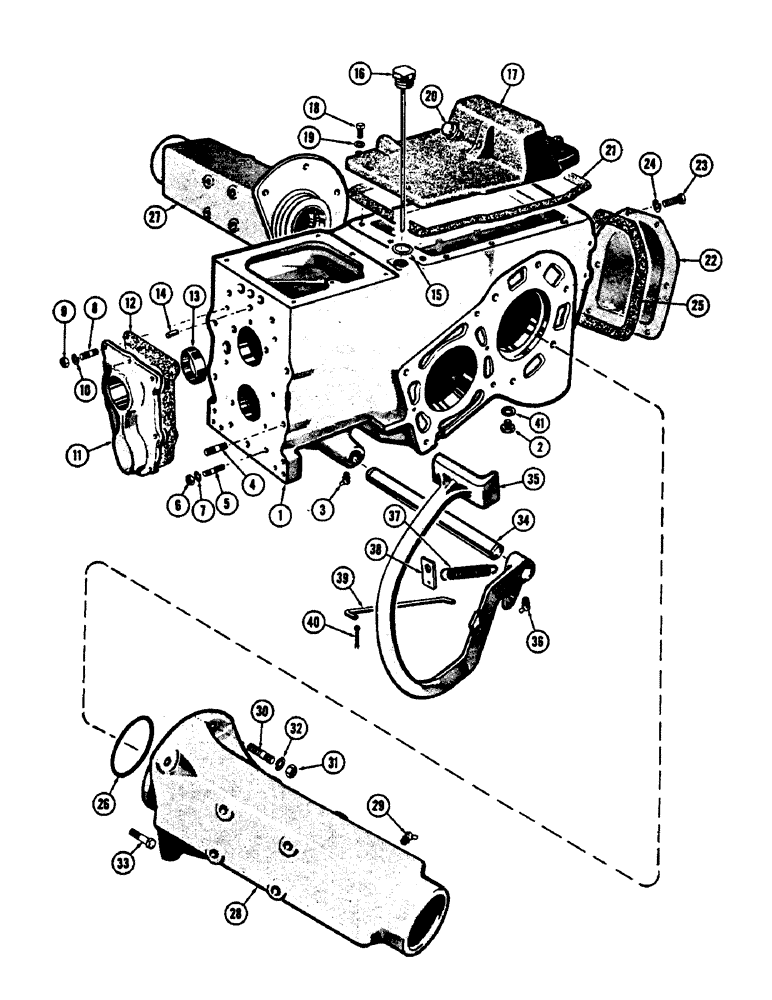

Запчасти Case 430CK (078) - TRANSMISSION CASE AND AXLE HOUSINGS

1

A37101

CASE - transmission

1шт.

2

A14280

PLUG

- drain

1шт.

3

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" x 45 degrees

2шт.

4

G49500

STUD

- 1/2" N.F. x 2-3/16, torque tube

2шт.

5

A29336

STUD

- 1/2" N.F. x 2-1/2", torque tube

8шт.

6

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

10шт.

7

92-8

LOCK WASHER,1/2"

10шт.

8

G10710

STUD

- 3/8" N.F. x 1-3/4", front cover

7шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

7шт.

10

92-6

LOCK WASHER,3/8"

7шт.

11

G1027

COVER

- (Used w/4 speed trans. only)

1шт.

12

G46841

GASKET

- front cover

1шт.

13

G10311

COLLAR

- pilot

1шт.

14

A29540

PIN

DOWEL - torque, Serial Range: tube-trans

2шт.

15

G10351

GASKET

- dipstick

1шт.

16

A38306

DIPSTICK

- oil lever (Replaces G10348)

1шт.

17

G1097

COVER - top rear

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

18

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

19

92-6

LOCK WASHER,3/8"

12шт.

20

A27173

BREATHER

- oil

1шт.

21

G10941

GASKET

- rear cover

1шт.

22

A36885

COVER - rear, P.T.O. opening (Replaces G1041)

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

G10447

GASKET

- rear cover

1шт.

26

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - axle housing

2шт.

27

A37068

HOUSING

- axle, R.H.

1шт.

28

A37069

HOUSING

- axle, L.H.

1шт.

29

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" x 45 degrees

2шт.

30

G49510

STUD

- 5/8" N.F. x 2-11/16", axle housing

6шт.

30

A29333

STUD

- 5/8" N.F. x 3", axle housing upper (Used w/hitch)

2шт.

30

A26655

STUD

- 5/8" N.F. x 4-5/8", axle housing

2шт.

31

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

8шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

33

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Axle housing Hex, 5/8"-11 x 2", G5

2шт.

34

G10708

SHAFT

- cross, clutch & brake pedal

1шт.

35

G1412

PEDAL - clutch

1шт.

36

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" x 67-1/2 degrees

1шт.

37

A35789

SPRING

- return, clutch pedal

1шт.

38

G15912

BRACKET - clutch spring

1шт.

39

G10748

LINK

ROD - link, clutch pedal

1шт.

40

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

2шт.

41

A27927

OIL PAN GASKET SET

- drain plug

1шт.
