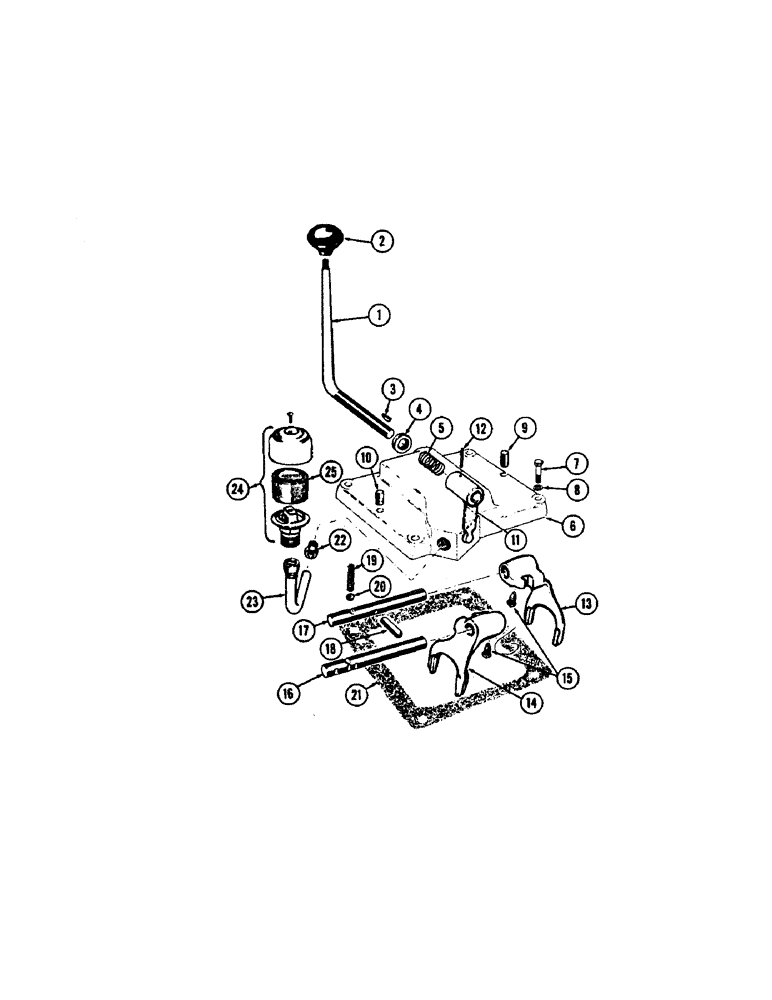

Запчасти Case 430CK (072) - TRIPL RANGE TRANSMISSION COVER

1

G15655

X

LEVER - hand (Order A36873, A36859 & 138-2024)

1шт.

1

A36873

LEVER - hand

1шт.

2

A26727

BALL

KNOB - hand lever

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

4

A26778

SEAL

OIL SEAL - hand lever

1шт.

5

G10715

VALVE SPRING

SPRING - hand lever

1шт.

6

G1361

SPARE PART

COVER - control

1шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex. hd.

1шт.

8

92-6

LOCK WASHER,3/8"

std. 3/8"

1шт.

9

G10711

PIN

- dowel, rear (1/2" x 3/4")

1шт.

10

A29426

AXLE PIN

PIN - dowel, frt. (3/8" x 3/4")

1шт.

11

G16663

LEVER - shift fork (Order A36859, A36873 & 138-2024)

1шт.

11

A36859

LEVER - shift fork

1шт.

12

138-45

LOCK PIN,3/32" x 1", Slotted

PIN, (See 138-2024) 3/32" x 1", Slotted

1шт.

12

138-2024

PIN,5/32" x 1", Coiled

1шт.

13

G10399

FORK - shift, low range

1шт.

14

G10398

FORK TEDDER

FORK - shift, direct and high range

1шт.

15

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock, shift fork

2шт.

16

G10392

RAIL - shift, direct and high range

1шт.

17

G10394

RAIL - shift, low range

1шт.

18

G10391

PLUG - interlock, shift rail

1шт.

19

G47039

SPRING

- detent, shift rail

2шт.

20

211-11

BALL,3/8" Dia

- detent, shift rail

2шт.

21

G46842

GASKET

- control cover

1шт.

22

222-508

TUBE NUT,1"-18

NUT - breather tube to cover (81LB - 3/4")

1шт.

23

G30309

BREATHER,0.7535" OD x 1.5" L

TUBE - breather

1шт.

24

A9238

BREATHER

- oil, torque tube (incl. ref. 25)

1шт.

25

A10059

FILTER, ELEMENT

ELEMENT - filter, oil breather

1шт.
