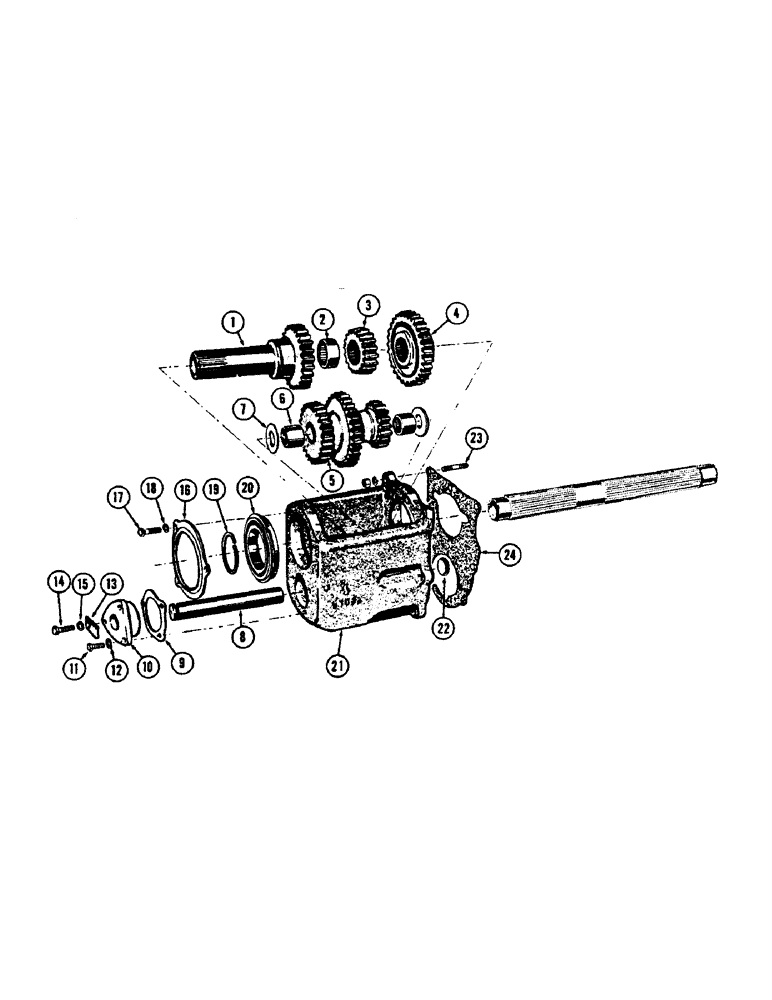

Запчасти Case 430CK (072[1]) - TRIPL RANGE TRANSMISSION

1

G10442

PINION

GEAR - input (24T)

1шт.

2

G10419

NEEDLE BEARING

BEARING - needle, input gear (Torr. BH-2212)

1шт.

3

G10374

PINION

GEAR - direct and high (18T)

1шт.

4

G10375

PINION

GEAR - low (30T)

1шт.

5

G10378

GEAR - cluster, countershaft (24T, 30T, 18T)

1шт.

6

G10420

NEEDLE BEARING

BEARING - needle, cluster gear (Torr. #B-1616)

2шт.

7

G46071

WASHER

- thrust, countershaft

2шт.

8

G10372

SHAFT

COUNTERSHAFT

1шт.

9

G10386

SHIM,.005" Thk

Countershaft .005" Thk

1шт.

9

G10387

SHIM,.0075" Thk

Countershaft .0075" Thk

1шт.

10

G14109

BUSHING

- countershaft (Incl. ref. 7)

1шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

12

92-5

LOCK WASHER,5/16"

std. 5/16"

2шт.

13

G10368

LOCK

- countershaft

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- 5/16" x 1-1/4" N.C. hex. hd.

1шт.

15

92-5

LOCK WASHER,5/16"

std. 5/16"

1шт.

16

G10381

RETAINER - bearing, input gear

1шт.

17

G49000

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Drilled

- drilled, 5/16" x 3/4" N.C. hex. hd.

3шт.

18

92-5

LOCK WASHER,5/16"

std. 5/16"

3шт.

19

A30087

SNAP RING - bearing to input gear

1шт.

20

A33537

BALL BEARING,54.99mm ID x 90mm OD x 18mm W

BEARING - input gear (N.D. #4-3L11)

1шт.

21

G14108

HOUSING

- Tripl-Range (Incl. ref. 7)

1шт.

22

A30084

PLUG

- expansion, housing

1шт.

23

G10710

STUD

- hsg. to trans. case (3/8" x 1-5/8")

7шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

7шт.

92-6

LOCK WASHER,3/8"

std. 3/8"

7шт.

24

G46841

GASKET

- hsg. to trans. case

1шт.
