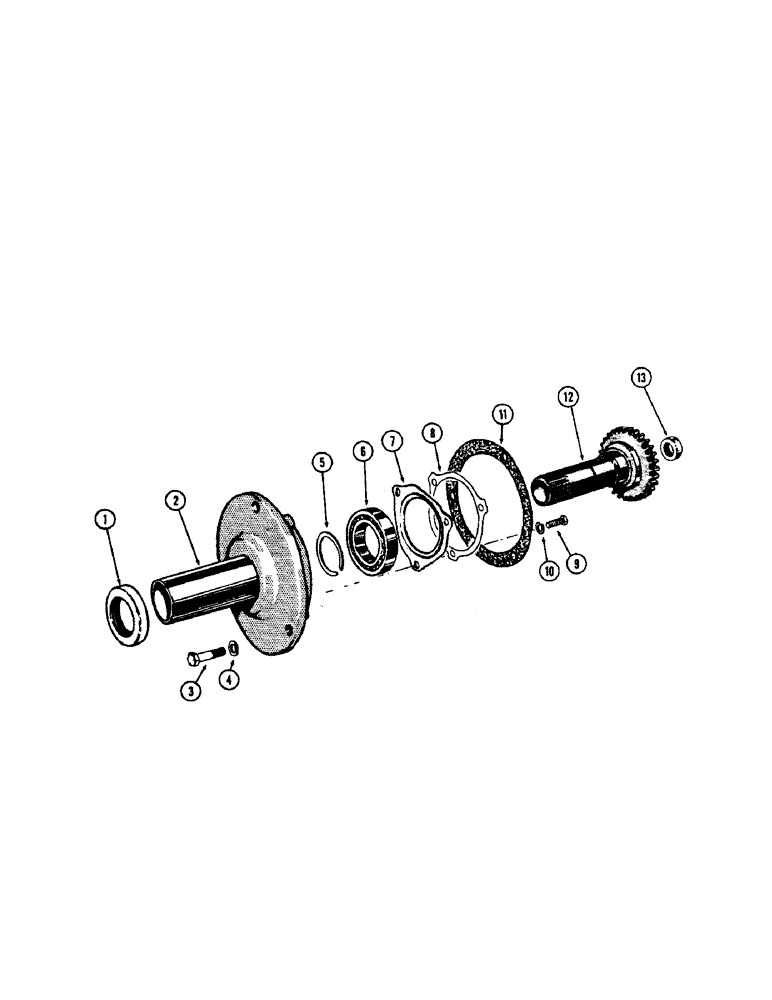

Запчасти Case 430CK (064) - HYDRAULIC PUMP DRIVE

1

G10422

OIL SEAL

OIL SEAL - drive housing

1шт.

2

G14468

HOUSING

- hyd. pump drive

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

A27085

RING

- snap, rear

1шт.

6

G13075

BEARING, BALL

BEARING - drive gear

1шт.

7

G10383

BEARING CAP

CAP - bearing retainer

1шт.

8

G10382

LOCK

- bearing cap

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

10

92-5

LOCK WASHER,5/16"

3шт.

11

G10407

GASKET

- housing

1шт.

12

A35083

GEAR WHEEL

GEAR - drive

1шт.

13

G13816

OIL SEAL

OIL SEAL - drive gear

1шт.
