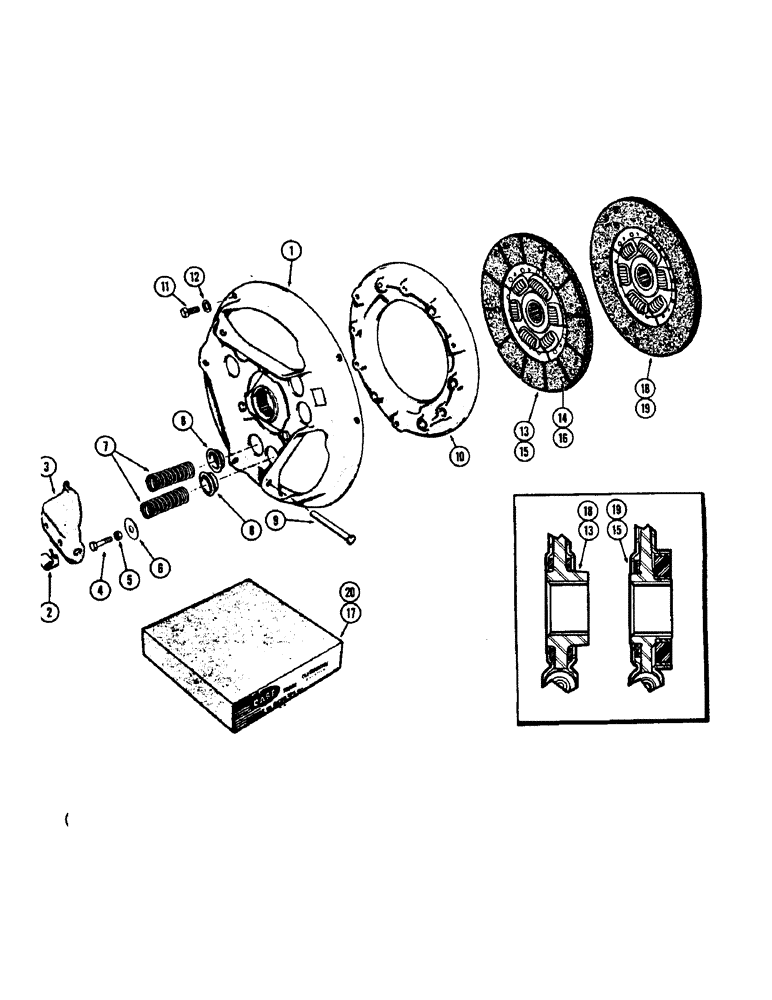

Запчасти Case 430CK (064[1]) - CLUTCH ASSEMBLY

A36962

PLATE

ASSY. - pressure (Replaces G11173), Inlcudes: Ref. 1 - 10

1шт.

A36962C

CORE-CLUTCH PLATE

Return Number, Plate, Pressure, N.A. Only

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET & HUB

1шт.

2

G46061

CLIP

- clutch return

3шт.

3

G47010

LEVER

3шт.

4

G49049

X

SCREW - adjusting

3шт.

5

G49005

NUT - jam

3шт.

6

G49048

WASHER

3шт.

7

G47013

SPRING

- lever (White)

6шт.

8

G47012

CUP - spring

6шт.

9

A41427

AXLE PIN

PIN - pivot (Replaces G47011)

3шт.

10

G4506

PLATE

- pressure

1шт.

11

G11207

BOLT

- press. plate to flywheel, 5/16 x 1"

6шт.

12

92-5

LOCK WASHER,5/16"

6шт.

13

A36414

PLATE ASSY.

PLATE - driveing (Gas)

1шт.

14

A30316

RIVET

18шт.

15

A41911

PLATE

- driving (Diesel) (Replaces A36036)

1шт.

16

A30316

RIVET

12шт.

17

A36149

KIT

FACING KIT - (For A36414 & A36036 plates)

1шт.

18

G45797

PLATE

- driving (Gas) (Used w/fork lift)

1шт.

19

A37192

PLATE

- driving (Diesel) (Used w/fork lift)

1шт.

20

G45702

FACING KIT - (For G45797 & A37192 plates)

1шт.
