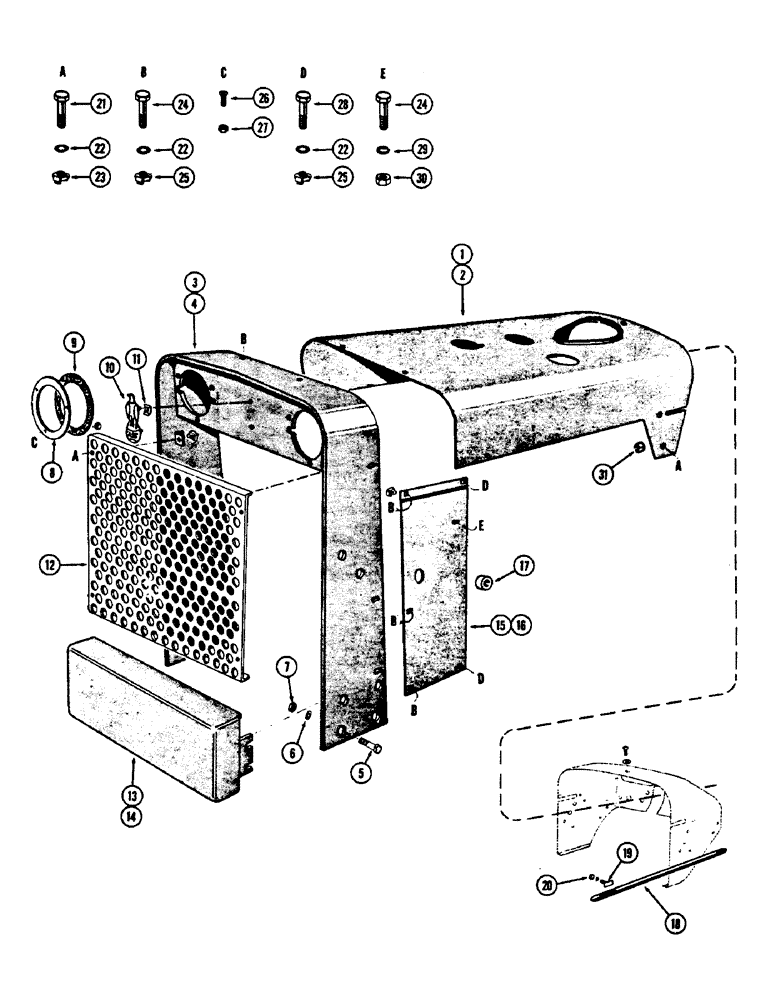

Запчасти Case 430CK (062) - SHEET METAL

1

D33416

HOOD (Gas)

1шт.

2

D31080

HOOD (Diesel)

1шт.

3

D31058

WRAPPER - radiator (Gas)

1шт.

4

D31075

WRAPPER - radiator (Diesel)

1шт.

5

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

5

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock, 5/8" N.C. hex.

8шт.

8

A11275

RING

- retainer, head lamp

2шт.

9

D31838

GASKET

- head lamp

2шт.

10

D40300

EMBLEM

- front

1шт.

11

131-138

PUSH-ON NUT

CLIP - retainer, emblem

2шт.

12

D31064

GRILLE ASSY

GRILLE - radiator

1шт.

13

D31071

GUARD - pump (Gas)

1шт.

14

D31082

GUARD ASSY.

GUARD - pump (Diesel)

1шт.

15

D31065

PANEL - side, L.H. frt. (Gas)

1шт.

D31066

PANEL - side, R.H. frt. (Gas)

1шт.

16

D31078

PANEL

- side, R.H. front (Diesel)

1шт.

D31079

PANEL

- side, L.H. frt. (Diesel)

1шт.

17

D31074

SPACER

- side panel

2шт.

18

G46259

MOLDING

STRIP - chrome moulding

2шт.

19

A11459

BOLT

"T" BOLT - moulding strip

4шт.

20

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. (Incl. lockwasher)

4шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

22

195-521

WASHER,5/16", SAE

- 5/16" SAE plain (Pltd.)

12шт.

23

1502286C2

NUT,Floating Cage, 5/16"-18

- retainer, 5/16" N.C.

4шт.

24

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

10шт.

25

131-106

SPRING NUT,Ret, 5/16"-18

Ret, 5/16"-18

10шт.

26

182-503

SCREW,Sl Pan Hd, #6 - 32 x 1"

- mach., #6-32 x 1" pan hd.

6шт.

27

129-15

NUT,#6-32

6шт.

28

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

29

92-5

LOCK WASHER,5/16"

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

31

A11456

LOCK PIN

FASTENER - moulding

2шт.
