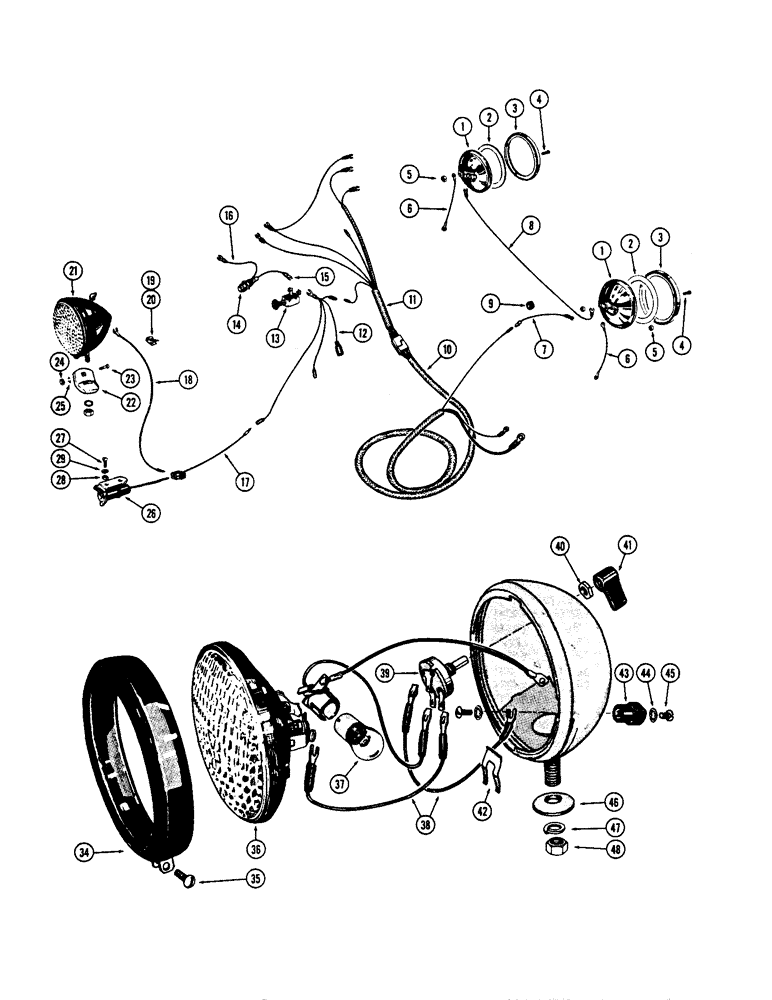

Запчасти Case 430CK (060) - LIGHTING EQUIPMENT

1

A24572

LAMP

HEAD LAMP - (Includes gasket)

2шт.

2

D31838

GASKET

- head lamp

2шт.

3

A11275

RING

- retainers, head lamp

2шт.

4

182-503

SCREW,Sl Pan Hd, #6 - 32 x 1"

- #6-32 x 1" pan hd.

6шт.

5

129-15

NUT,#6-32

6шт.

6

A33439

CABLE - ground

2шт.

7

A11943

WIRE - harness to lead wire

1шт.

8

A11764

WIRE - head lamp to head lamp

1шт.

9

A27338

GROMMET

- cable

1шт.

10

A35304

HARNESS

CABLE - master, lower half

1шт.

11

A36416

CABLE

- master, upper half

1шт.

12

A35306

WIRE - light switch

1шт.

13

G13142

IGNITION SWITCH

SWITCH

1шт.

14

A22874

HOLDER

FUSE HOLDER

1шт.

15

A22875

ELECTRICAL WIRE

CABLE - fuse to light switch

1шт.

16

A22876

ELECTRICAL WIRE

CABLE - fuse to starting switch

1шт.

17

A36555

ELECTRICAL WIRE

WIRE - tail lamp & socket (w/hitch - 46")

1шт.

17

A36557

ELECTRICAL WIRE

WIRE - tail lamp & socket (w/o hitch - 30-1/4")

1шт.

18

A36554

ELECTRICAL WIRE

WIRE - tail lamp (w/hitch - 48")

1шт.

18

A36556

ELECTRICAL WIRE

WIRE - tail lamp (w/o hitch - 57")

1шт.

19

G46047

CLIP -, Serial Range: cable-fender

3шт.

20

A26649

CLIP - cable to rear axle

5шт.

21

A20965

LAMP BASE

LAMP - combination flood and tail (Parts list below)

1шт.

22

A34046

BRACKET

- tail lamp

1шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

A8170

SOCKET

- outlet

1шт.

27

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" rd. hd.

2шт.

28

129-7

NUT,Hex, #10 - 24

- hex. #10-24

2шт.

29

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

34

B50255

MOLDING

A20965 flood & tail lamp

1шт.

35

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding, A20965 flood & tail lamp

1шт.

36

A40855

LAMP BASE

SEALED UNIT (Replaces B50335), A20965 flood & tail lamp

1шт.

37

B50223

BULB

15 CP, 12-16 volt (Mfrs. #1003), A20965 flood & tail lamp

1шт.

38

B50273

WIRE ASSEMBLY, A20965 flood & tail lamp

2шт.

39

B50275

SWITCH

A20965 flood & tail lamp

1шт.

40

B50224

SPECIAL NUT

- retaining switch, A20965 flood & tail lamp

1шт.

41

B50310

SWITCH

KNOB - switch (Includes screw), A20965 flood & tail lamp

1шт.

42

10927

SPRING

- terminal, A20965 flood & tail lamp

1шт.

43

B50293

TERMINAL CONNECTOR

TERMINAL POST, A20965 flood & tail lamp

1шт.

44

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, , Terminal screw, A20965 flood & tail lamp Int Tooth, #8

1шт.

45

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- terminal, A20965 flood & tail lamp

1шт.

46

10923

WASHER

- mounting stud, A20965 flood & tail lamp

1шт.

47

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Mounting stud, A20965 flood & tail lamp 1/2"

1шт.

48

129-105

NUT,Hex, 1/2" - 13, Gr 5

Mounting stud, A20965 flood & tail lamp 1/2"-13, G5

1шт.
