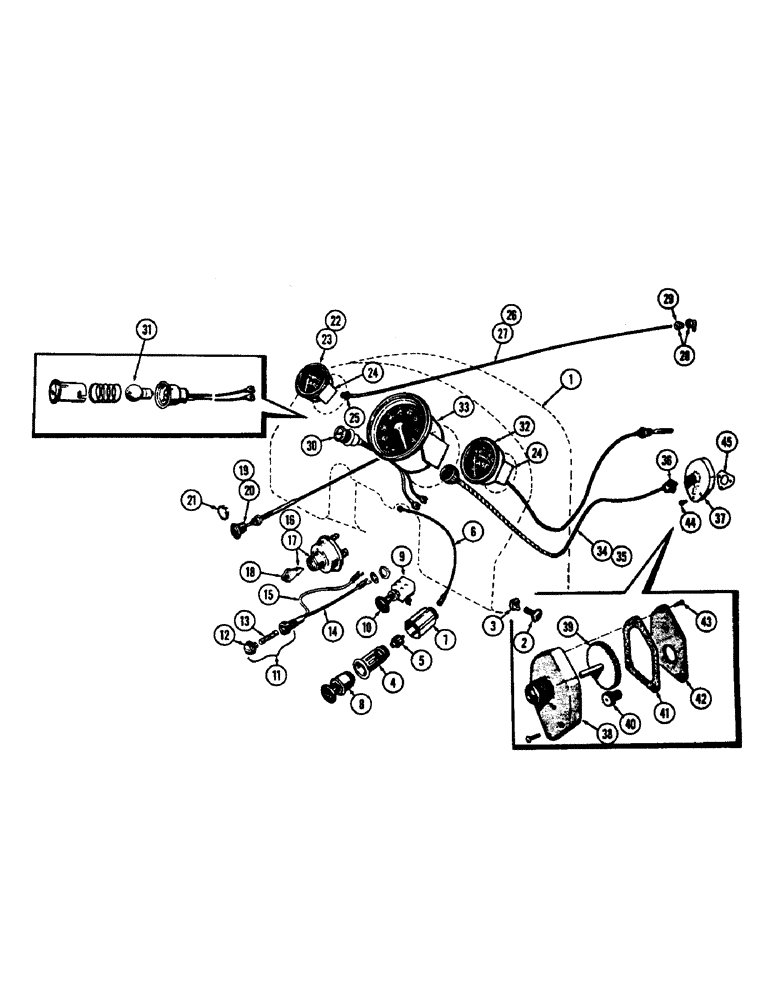

Запчасти Case 430CK (058) - INSTRUMENT PANEL

1

A36418

PANEL - instrument

1шт.

2

175-417

SCREW,Sl Truss Hd, 1/4" - 20 x 1"

- 1/4 x 1" N.C. rd. hd.

3шт.

3

131-115

NUT

- retainer, 1/4" N.C.

3шт.

4

G44916

SOCKET

- lighter, Inlcudes: Ref. 5 and 6

1шт.

5

G44918

FUSE - lighter socket

1шт.

6

G44022

ELECTRICAL WIRE

CABLE - lighter socket

1шт.

7

G46381

SHELL - clamping, lighter socket

1шт.

8

A24134

CIGARETTE LIGHTER

LIGHTER - cigar

1шт.

9

G13142

IGNITION SWITCH

SWITCH - light, Inlcudes: Ref. 10

1шт.

10

G13141

KNOB

- light switch

1шт.

11

A22874

HOLDER

- fuse, Inlcudes: Ref. 12

1шт.

12

A10958

CAP

1шт.

13

223-20

FUSE,20 Amp, Type SFE

- light

1шт.

14

A22875

ELECTRICAL WIRE

WIRE - fuse to light switch

1шт.

15

A22876

ELECTRICAL WIRE

WIRE - fuse to starter switch

1шт.

16

A24510

SWITCH

- starting (Diesel) includes keys

1шт.

17

A24511

SWITCH

- starting w/key (Gas) Inlcudes: Ref 18

1шт.

18

A24509

KEY

- starting switch

1шт.

19

A36578

ROD

- choke (Gas)

1шт.

20

A36573

CONTROL

ROD - fuel shut-off (Diesel)

1шт.

21

205-16

PLUG - lighter opening

1шт.

22

A30326

GAUGE

- oil pressure (Gas)

1шт.

23

D22853

GAUGE

- oil pressure (Diesel) (Replaces A42307 & G35317)

1шт.

24

G46227

CLAMP - gauge

2шт.

25

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - tube to gauge (Incl. ref. 29)

1шт.

26

G46299

TUBE,0.125" OD x 57" L

- engine to gauge, 57" (Diesel)

1шт.

27

G46298

TUBE,0.125" OD x 52" L

- engine to gauge, 52" (Gas)

1шт.

28

222-460

ELBOW - tube to eng. block, Inlcudes: Ref. 29

1шт.

29

222-500

TUBE NUT,5/16" - 24 NPT

NUT - pressure tube

2шт.

30

A36417

LIGHT - warning, generator, Inlcudes: Ref. 31

1шт.

31

A24354

BULB

- red

1шт.

32

A30621

ELECTRICAL GAUGE

GAUGE - eng. temp. (Incl. ref. 24)

1шт.

33

A32143

X

TACHOMETER & HOURMETER

1шт.

34

G45121

HOUSING

CABLE ASSY. - tach. drive (Gas)

1шт.

35

G45357

CABLE

ASSY. - tach. drive (Diesel), Inlcudes: Ref. 36

1шт.

36

A24523

KIT

CABLE - kit

1шт.

37

A36818

DRIVE

TACH. DRIVE ASSY, Inlcudes: Ref. 38 - 43

1шт.

38

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

39

A36522

GEAR WHEEL

GEAR - driven

1шт.

40

G46306

GEAR WHEEL

GEAR - drive

1шт.

41

G46882

GASKET

- cover

1шт.

42

G46307

COVER - housing

1шт.

43

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- #8-32 x 5/16" truss. hd.

3шт.

44

187-1108

SCREW - #8-32 x 3/8" pan hd.

3шт.

45

G46878

GASKET

- tach., Serial Range: drive-generator

1шт.
