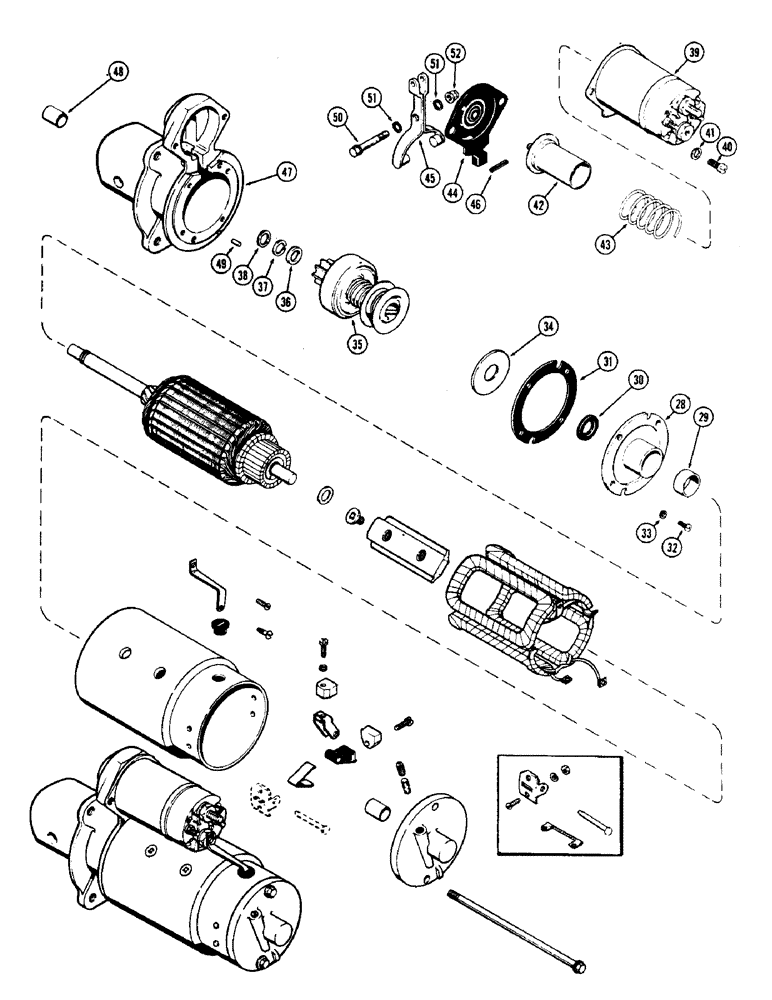

Запчасти Case 430CK (057M) - A39839 STARTER, (188) DIESEL ENGINE

A39839

STARTING MOTOR

STARTER ASSY. - (Continued from Figure 57K), Inlcudes: Ref. 28 - 52

1шт.

A40223

PLATE

ASSY. - center bearing, Inlcudes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - bearing (Order A40223)

1шт.

29

A41982

BUSHING

BEARING - 3/4 x 1-1/4 x 13/32"

1шт.

30

A40228

OIL SEAL

SEAL - oil

1шт.

31

A41981

GASKET

- center bearing

1шт.

32

A41959

SCREW,#10 - 32 x 3/8"

- center bearing plate

4шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

34

R15043

WASHER

- thrust, center bearing

1шт.

35

A43652

DRIVE

ASSY. - starter (10 teeth)

1шт.

35

87421540

REMAN-STARTER DRIVE

430CK Case Construction King Wheel Tractor, Assy, Reman for New PN A43652

1шт.

35

87421541

CORE-STARTER DRIVE

Return Part Number

1шт.

36

R15049

COLLAR

- stop, starter drive

1шт.

37

R15048

RING

- snap, collar

1шт.

38

A25385

WASHER

- thrust, starter drive

1шт.

39

G44891

SOLENOID

ASSY. - (See Figure 57O)

1шт.

40

A42023

SCREW,#10 - 32 x 1/2"

- solenoid mounting

2шт.

41

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

42

A40218

PLUNGER

- solenoid

1шт.

43

A40221

SPRING

- plunger return

1шт.

44

A40222

BOOT

- solenoid cover

1шт.

45

A40220

LEVER

- shift

1шт.

46

138-93

LOCK PIN,3/16" x 13/16", Slotted

PIN - 3/16" x 13/16", Slotted

1шт.

47

A43653

HOUSING

ASSY. - drive, Inlcudes: Ref. 48 and 49

1шт.

48

A40227

BUSHING

- 1/2 x 9/16 x 25/32"

1шт.

49

R15041

PIN - locating

1шт.

50

A40520

BOLT

PIVOT - shift lever

1шт.

51

A41984

WASHER

SEAL - pivot stud

2шт.

52

131-4

LOCK NUT,5/16"-18, GB

NUT - pivot stud, 5/16" N.C. lock

1шт.
