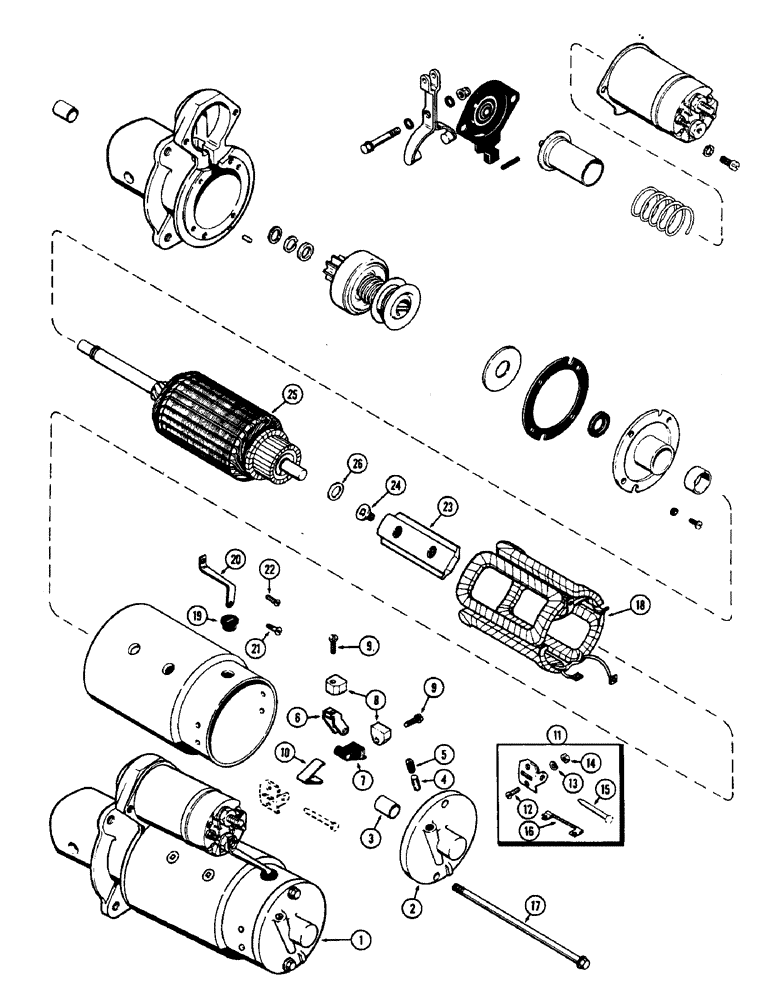

Запчасти Case 430CK (057K) - A39839 STARTER, (188) DIESEL ENGINE

1

A39839

STARTING MOTOR

STARTER ASSY. - (Delco #1109143) (Replaces A36582 & A36583), Inlcudes: Ref. 2 - 26

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

2

A41870

FRAME

HEAD ASSY. - commutator end, Inlcudes: Ref. 3 - 5

1шт.

3

R15020

BUSHING

BUSHING - 9/16 x 11/16 x 29/32"

1шт.

4

A41979

WICK

WICK - oil

1шт.

5

221-1041

PLUG

PLUG - 1/8" P.T. sltd. hd.

1шт.

6

A40217

HOLDER

HOLDER - brush (Grounded)

2шт.

7

R15027

HOLDER

HOLDER - brush (Insulated)

2шт.

8

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

9

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush to holder (Insulated)

2шт.

9

A42124

SCREW,#8 - 32 x 5/8"

SCREW - brush to holder (Grounded)

2шт.

10

A25359

SPRING

SPRING - brush tension

2шт.

11

A25379

KIT

SUPPORT KIT - brush holder, Inlcudes: Ref. 12 - 16

2шт.

12

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - #10-32 x 1/2" rd. hd.

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

14

R15032

X

NUT - #10-32 hex.

2шт.

15

A41983

PIN

PIN -, Serial Range: holder-support

1шт.

16

A42494

ELECTRICAL WIRE

WIRE LEAD - ground

1шт.

17

A25552

BOLT

BOLT - thru

2шт.

18

A25548

COIL

COIL ASSY. - field

1шт.

19

A41980

GROMMET

GROMMET - solenoid connector

1шт.

20

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR -, Serial Range: coil-solenoid

1шт.

21

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - #10-32 x 7/16" rd. hd.

1шт.

22

A42123

SKELETON ENGINE

SCREW -, Serial Range: connector-solenoid

1шт.

23

A25391

SHOE

SHOE - pole

4шт.

24

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - pole shoes

8шт.

25

A25547

ARMATURE

ARMATURE

1шт.

26

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - brake, commutator end

1шт.
