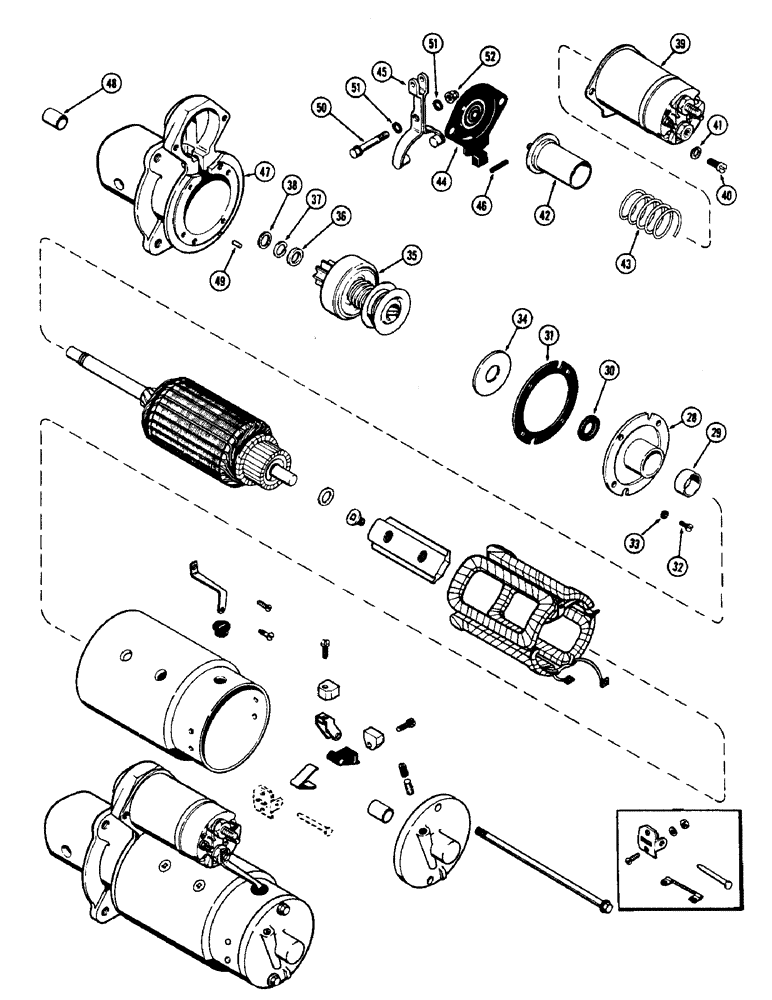

Запчасти Case 430CK (057I) - A38413 STARTER, (188) DIESEL ENGINE

A38413

STARTER MOTOR

STARTER ASSY. - (Cont'd from Figure 57G), Inlcudes: Ref. 28 - 52

1шт.

A40223

PLATE

ASSY. - center bearing, Inlcudes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - center bearing (Order A40223)

1шт.

29

A41982

BUSHING

BEARING - 3/4 x 1-1/2 x 13/32"

1шт.

30

A40228

OIL SEAL

SEAL - oil, 3/4 x 1-1/4 x 1/4"

1шт.

31

A41981

GASKET

- center bearing

1шт.

32

A41959

SCREW,#10 - 32 x 3/8"

- center bearing to drive housing

4шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

34

R15043

WASHER

- thrust, center bearing

1шт.

35

A41871

DRIVE

ASSY. - starter, 9 teeth

1шт.

36

R15049

COLLAR

- stop, starter drive

1шт.

37

R15048

RING

- snap, collar retaining

1шт.

38

A25385

WASHER

- thrust, starter drive

1шт.

39

G44891

SOLENOID

ASSY. - (See Figure 57O)

1шт.

40

A42023

SCREW,#10 - 32 x 1/2"

- solenoid to drive housing

2шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

42

A40218

PLUNGER

- solenoid

1шт.

43

A40221

SPRING

- plunger return

1шт.

44

A40222

BOOT

- solenoid cover

1шт.

45

A40220

LEVER

- shift

1шт.

46

138-93

LOCK PIN,3/16" x 13/16", Slotted

PIN - 3/16" x 13/16", Slotted

1шт.

47

A40224

FRAME

HOUSING ASSY. - drive end

1шт.

48

A40227

BUSHING

- 1/2 x 9/16 x 25/32"

1шт.

49

R15041

PIN - locating, drive end housing

1шт.

50

A25401

PIVOT - shift lever

1шт.

51

A41984

WASHER

SEAL - pivot stud

2шт.

52

131-4

LOCK NUT,5/16"-18, GB

NUT - pivot stud

1шт.
