Артикул
Название
Примечание
Количество
1
A38413
STARTER MOTOR

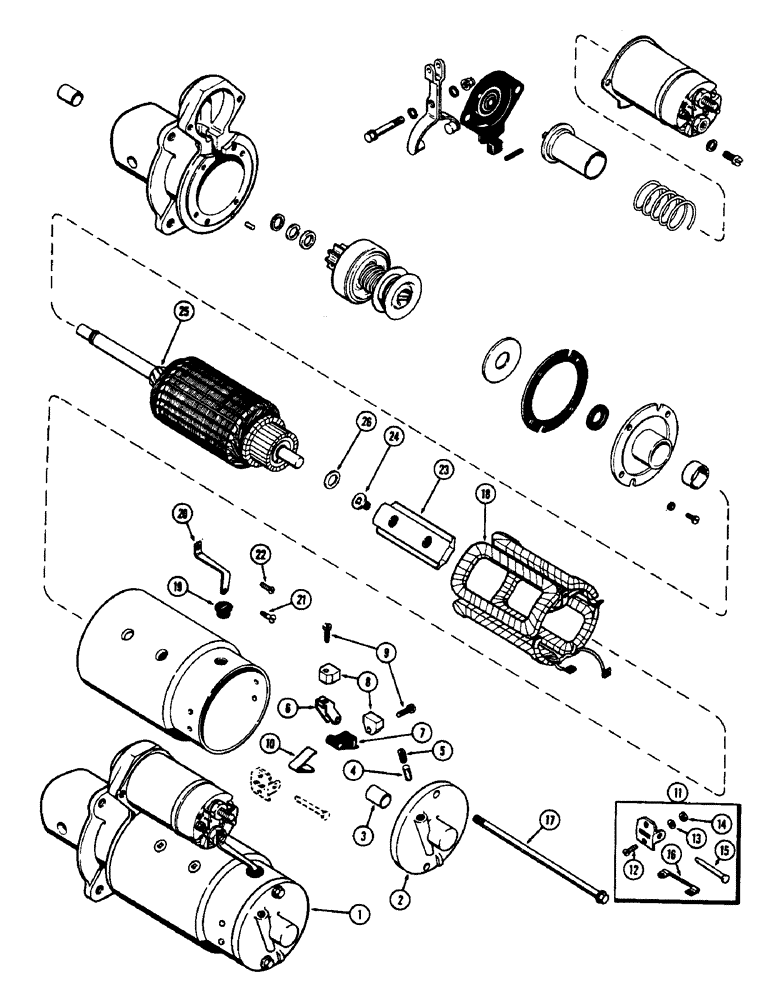

STARTER ASSY. - (Delco-Remy #1107874) (Order A39839) (See Figure 57K) (See note), Inlcudes: Ref. 2 - 26
1шт.
1
104198A2R
REMAN-STARTER
Remanufactured Starter
1шт.
1
104198A1C
CORE-STARTER
Return Part Number
1шт.
2
A41870
FRAME
HEAD ASSY. - commutator end, Inlcudes: Ref. 3 - 5
1шт.
3
R15020
BUSHING
BUSHING - 9/16 x 11/16 x 29/32"
1шт.
4
A40979
WICK - oil
1шт.
5
221-1041
PLUG
PLUG - 1/8" P.T., sltd. hd.
1шт.
6
A40217
HOLDER
HOLDER - brush, ground
2шт.
7
R15027
HOLDER
HOLDER - brush, insulated
2шт.
8
A25356
BRUSH, COMMUTATOR
BRUSH BRUSH
4шт.
9
D32481
SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW
SCREW - brush holder
4шт.
10
A25359
SPRING
SPRING - brush tension
2шт.
11
A25379
KIT
SUPPORT KIT - brush holder
2шт.
12
173-212
SCREW,Sl Rnd Hd, #10 - 24 x 1/2"
SCREW - #10 x 1/2" N.C. rd. hd.
2шт.
13
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
2шт.
14
R15032
X
NUT - #10 N.C. hex.
4шт.
15
A41983
PIN
PIN -, Serial Range: holder-support
1шт.
16
A42494
ELECTRICAL WIRE
WIRE LEAD - brush ground
1шт.
17
A25552
BOLT
BOLT - thru
2шт.
18
A25548
COIL
COIL ASSY. - field
1шт.
19
A41980
GROMMET
GROMMET - coil connector (In frame)
1шт.
20
A40225
CONNECTOR, ELEC
CONNECTOR CONNECTOR -, Serial Range: coil-solenoid
1шт.
21
173-221
SCREW,Sl Rnd Hd, #10 - 32 x 7/16"
SCREW - #10 x 7/16" N.F. rd. hd.
1шт.
22
A42023
SCREW,#10 - 32 x 1/2"
SCREW -, Serial Range: connector-solenoid
1шт.
23
A25391
SHOE
SHOE - pole
4шт.
24
74-610
SCREW,3/8" - 24 x 5/8"
SCREW - pole shoes
8шт.
25
A25547
ARMATURE
ARMATURE
1шт.
26
A41917
WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk
WASHER - brake, commutator end
1шт.
Выбрано товаров: 28
